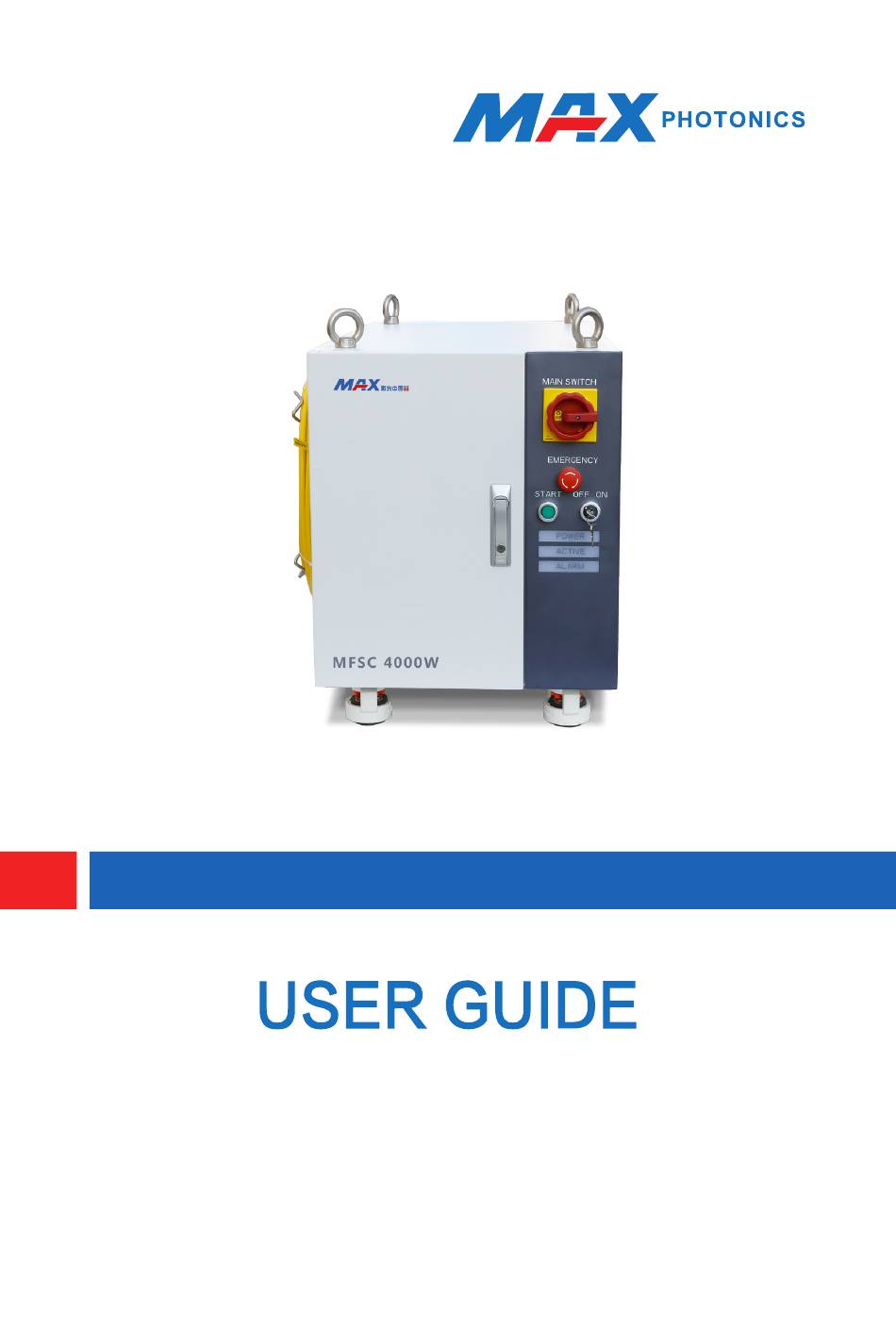

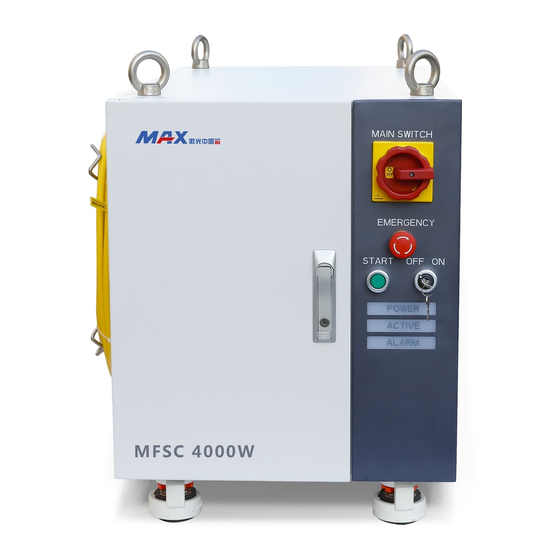

- Page 1 MFSC 3000W-4000W CW Fiber Laser Series Maxphotonics Co.,Ltd.
- Page 2 C o p y r i g h t © M a x p h o t o n i c s C o . , L t d ( h e r e a f t e r r e f e r r e d t o a s Maxphotonics). All rights reserved. You may not copy, modify, transmit or...
- Page 3 Preface Thank you for using the MFMC Series CW fiber laser from Maxphotonics. We compile this document for you in order that the laser is used and maintained properly. Due to the limited level of the writers, coupled with time constraints, there are some careless mistakes in this document, your understanding and suggestion to help us make an improvement will be much appreciated .
-
Page 4: Company Profile
Company Profile As a large laser manufacturer founded in 2004, Maxphotonics Co., Ltd. specializes in research and development, production and sales of lasers and ancillary products. Maxphotonics owns a number of independent intellectual property rights and patents as well as high-power pulsed fiber laser, high-power fiber laser and high-power fiber amplifier etc. -
Page 5: Table Of Contents
CONTENT Company Profile ……………………………………………………………… 2 Chapter 1 Characteristic Description ………………………………… 5 Chapter 2 General Safety Information ……………………………… 6 1-Safety Conventions ………………………………………………………… 6 2-Laser Protection …………………………………………………………… 7 3-Reference Standard ……………………………………………………… 8 4-General Safety Instructions ……………………………………………… 9 5-Additional Safety Information …………………………………………… 14 Chapter 3 Product Description …………………………………………... - Page 6 CONTENT Chapter 5 Unpacking Guide ……………………………………………… 22 1-Unpacking Steps …………………………………………………………… 22 2-Packing List ………………………………………………………………… 24 Chapter 6 Operation Guide ……………………………………………… 25 1-Notice ………………………………………………………………………… 25 2-Electrical Power Connection …………………………………………… 25 3-Extension Interface ………………………………………………………… 25 4-Start Steps …………………………………………………………………… 27 5-Mode Description …………………………………………………………… 27 6-Monitor Software ……………………………………………………………...
-
Page 7: Chapter 1 Characteristic Description
30% and deliver high efficiency, high reliability and high performance. Maxphotonics' MFSC Series CW Fiber Laser Series are Class 4 laser products and are designed and tested with safety. By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device. -
Page 8: Chapter 2 General Safety Information
Chapter 2 General Safety Information 1-Safety Conventions All safety warning symbols during operating process of the laser include: SYMBOLS DESCRIPTION WARNING: Refers to a potential Electrical Hazard to human body. It requires a procedure that, if not correctly followed, may result in bodily harm to you and/or others. Do not proceed beyond the WARNING sign until you completely understand and meet the required conditions. -
Page 9: 2-Laser Protection
LaserVision USA, Kentek Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics assumes no responsibility for any problem caused by using the products of abovementioned suppliers. -
Page 10: 3-Reference Standard
Chapter 2 General Safety Information 3-Reference Standard Anti-interference Performance on Electromagnetic Compatibility： EN 61000-6-4:2007 + A1:2011 EN 61000-6-2:2005 + AC: 2005 EN 61000-3-2:2014 EN 61000-3-3:2013 Power Supply Security: EN 61010-1:2010 EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 Laser Security: EN 60825-1:2014 CDRH 21 CFR 1040.10 NOTE: ◎... -
Page 11: 4-General Safety Instructions
WARNING : ◎ The Maxphotonics MFSC laser light is strong enough to cut or weld metal, burn skin, clothing and paint. In addition, this light can ignite volatile substances such as alcohol, gasoline, ether and other solvents. - Page 12 Chapter 2 General Safety Information 1、Never look directly into the laser output port when the power is turned 2、Avoid positioning the laser and all optical output components at eye level. 3、Equip with laser beam casing. 4、Remove the end-cover before switch ON the laser. Or else the output head will be damaged irreversibly.
- Page 13 Chapter 2 General Safety Information coating. If the backward-stage light path of your laser has the optical lens, please strictly inspect the lens of the output head and the backward- stage lens of the laser, and ensure that there is no dust and any other impurity on the lens.
- Page 14 5、The equipment does not have any part which can be maintained by operators, and all the maintenance operations must be finished by the professionals of Maxphotonics Co., Ltd. 6、To prevent electrical shock, do not remove enclosure, detach the laser without permission and damage the relevant signs. Any product with unauthorized dismounting shall not be subject to warranty.
- Page 15 3、Operation at higher temperature will accelerate aging, increase threshold current and lower slop efficiency. If the device is overheated, stop operations and contact Maxphotonics. 4、Ensure that the work surface is properly vented. There may be gases, sparks and debris generated from the interaction between the laser and the work surface, and they could pose additional safety hazard.
-
Page 16: 5-Additional Safety Information
Chapter 2 General Safety Information 5-Additional Safety Information For additional information regarding Laser Safety, please refer to the list below: Laser Institute of America(LIA) 13501 Ingenuity Drive, Suite 128 Orlando,Florida 32826 Phone:407 380 1553,Fax: 407 380 5588 Toll Free:1 800 34 LASER American National Standards Institute ANSI Z136.1, American National Standard for the Safe Use of Lasers (Available through LIA) -
Page 17: Chapter 3 Product Description
3、High reliability, long service life 4、Compact, rugged package 5、Extension programming interface Applications: 1、Industrial applications 2、Scientific research 2-Module Configuration Maxphotonics offers many configurable modes. This manual will give complete instructions for all modes, please refer to section 6.3-6.6. 3-Laser Model Designation Codes... -
Page 18: 4-Certification
Additional message Can be null 4 - Certification Maxphotonics certifies that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact Maxphotonics immediately. -
Page 19: 6-Back Panel Description
Chapter 3 Product Description 6-Back Panel Description Items Function Description External control CTRL connector RS232 RS232 connector AC380 380V AC power input Water cooling output WATER OUT port WATER IN Water cooling input port OPTICAL QBH output OUTPUT 7-Optical Output Terminal 1、Optical Output Head The optical output head come with a protective window that can be replaced if damaged. -
Page 20: Chapter 4 Specification
Chapter 4 Specification 1-Optical Characteristic Parameters No. Characteristics Test Conditions Min. Nom. Max. Unit Operation Mode CW/Modulated Polarization Random Output Power of MFSC-3000W 100% CW 3000 Output Power of MFSC-4000W 100% CW 4000 Tuning Range of Output Power 100% Emission Wavelength 100% CW 1070 1080... -
Page 21: 2-General Characteristic Parameters
Chapter 4 Specification 2-General Characteristic Parameters No. Characteristics Test Conditions Min. Nom. Max. Unit Operating Voltage Nominal Power Consumption 100% Output of MFSC-3000W Nominal Power Consumption 100% Output of MFSC-4000W Operating Ambient ℃ Temperature Operating Ambient Relative Humidity Cooling Method Water-cooling Storage Temperature ℃... -
Page 22: 3-Water Cooling Condition
Chapter 4 Specification 3-Water Cooling Condition Characteristics Min. Typ. Max. Unit Cooling Method Water Cooling Cooling Water Temperature 24 ℃ Water Pressure 3000W/4000W L/min Water Flow Rate 3000W Power Consumption of Chiller 4000W Power Consumption of Chiller Dew Point Max Relative Humidity Environment Temperature 10℃... -
Page 23: 4-Structural Layout
Chapter 4 Specification 4-Structural Layout Laser Three Views.（Unit：mm）... -
Page 24: Chapter 5 Unpacking Guide
Chapter 5 Unpacking Guide 1-Unpacking Steps The laser is precise valuables, so Maxphotonics recommends that you unpack the packing box according to the following steps: 1、Place the packing box containing the laser on a horizontal platform such as the floor or a large table;... - Page 25 NOTES: ◎ If any damage of the external package and internal parts has been found upon receipt of product, please contact Maxphotonics Co., Ltd. or designated agent immediately. ◎ The air-conditioner at the back of the laser has ports for Water In/Out.
-
Page 26: 2-Packing List
Chapter 5 Unpacking Guide 2-Packing List Names of fittings Description Unit Quantity Fiber Laser MFSC-xxxx External signal wire RS232 signal wire Power keys USB disk software enclosed Lens cleaning paper Sample of water Ф25.4mm pipe of laser American type hose clamps, Hose clamps 26~38, stainless steel Manual... -
Page 27: Chapter 6 Operation Guide
AC current. Please make sure the grounding cord is perfectly connected, or the laser may be damaged potentially. For ensuring the safety feature, Maxphotonics recommends you connect a 20A circuit breaker (air switch) in series between the power supply unit and the laser. - Page 28 Chapter 6 Operation Guide card, Maxphotonics adopts the high-quality HARTING terminal and provides the CTRL interface connectors. The interface definition is shown in the figure below. CTRL Interface Definition. CTRL Interface Definition Ctrl Wire Color Function Description Notes Interface Pin...
-
Page 29: 4-Start Steps
Chapter 6 Operation Guide 4-Start Steps WARNING: ◎ Make sure that all the electrical connections (including cooling water connections) are connected prior to use. All the connectors must be held steady with screws if possible. ◎ NEVER look directly into the output fiber and make sure that you wear the laser safety eyewear while operating the product.Make sure all power is removed from the laser when wiring. -
Page 30: 6-Monitor Software
Chapter 6 Operation Guide 2、Modulated Mode：The light emitted is pulsed and this mode is used for controlling the output average power of the laser. 3、External Control: Control the output of the laser via external control software. External Control Signal Timing: T >1ms 6-Monitor Software 6.6.1 Software Installment Guidance: Refer to the appendix. - Page 31 Chapter 6 Operation Guide No. Message Description Trouble shooting Operation leads to low output power Laser internal Front lamp of laser such as low modulation light path testing warning frequency, low peak power, low cutting fault power. The chiller is Water flow Start the chiller and make sure that not started or...
-
Page 32: Chapter 7 Fiber Connector Inspection And Cleaning Guide
The use of a dirty or damaged fiber connector can result in serious injury and/or laser damage. Maxphotonics is not responsible for any damage due to contaminated connectors. For cleaning a fiber connector, you need the following materials: 1、Powder-free rubber gloves or fingerstall... -
Page 33: 2-Operating Procedures
Chapter 7 Service and Maintenance managed and stored according to the local law and instructions. 2-Operating Procedures Clean and maintain the fiber laser according to the following procedures: 1、 Switch off the laser power, and place the key switch on position of “OFF” 2、Remove the black outer protective sleeve and leave the white inner cap on and clean the fiber connector exterior with optical cleaner, wipe it with a clean optical wipe and dry it with compressed air;... - Page 34 Chapter 7 Service and Maintenance 7-2 Install the fiber connector under microscope 7-3 Cleaning protective lens with swabs...
- Page 35 Chapter 7 Service and Maintenance 1、quartz 2、fiber cladding 3、fiber core 7-4 Actual image of the fiber surface damaged coating damaged scratch 7-5 Endface may be damaged...
- Page 36 CAUTION : ◎ It is hereby stated that damage to the fiber connector can occur due to mishandling, the use of incorrect cleaning procedures, or chemicals for cleaning. This is not covered by the Maxphotonics' warranty.
-
Page 37: Chapter 8 Service And Maintenance
◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package and return it. -
Page 38: 2-Service Statements
Please call the Customer Service Department for other questions: 400- 900-9588. Your problems will be follow-up by our technical support group after verified.If the problems cannot be solved , you may need to return the product to Maxphotonics for further troubleshooting. -
Page 39: Chapter 9 Warranty Statements
Chapter 9 Warranty Statements 1-General Clauses Maxphotonics Co.,Ltd. carries out warranty for any defect of the product caused by its material and production technology within the warranty period agreed in contract, and ensures that its product meet the relevant quality and specification requirements specified in the document under normal use condition. - Page 40 IMPORTANT: ◎ Within the warranty scope, purchasers must feed back within 31 days after finding the product defect. ◎ Maxphotonics does not grant any Third Party rights to repair or replace the parts, the equipment or other Maxphotonics products.
