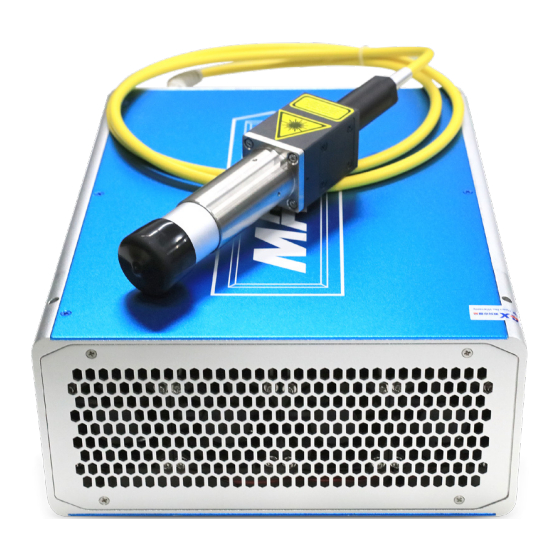

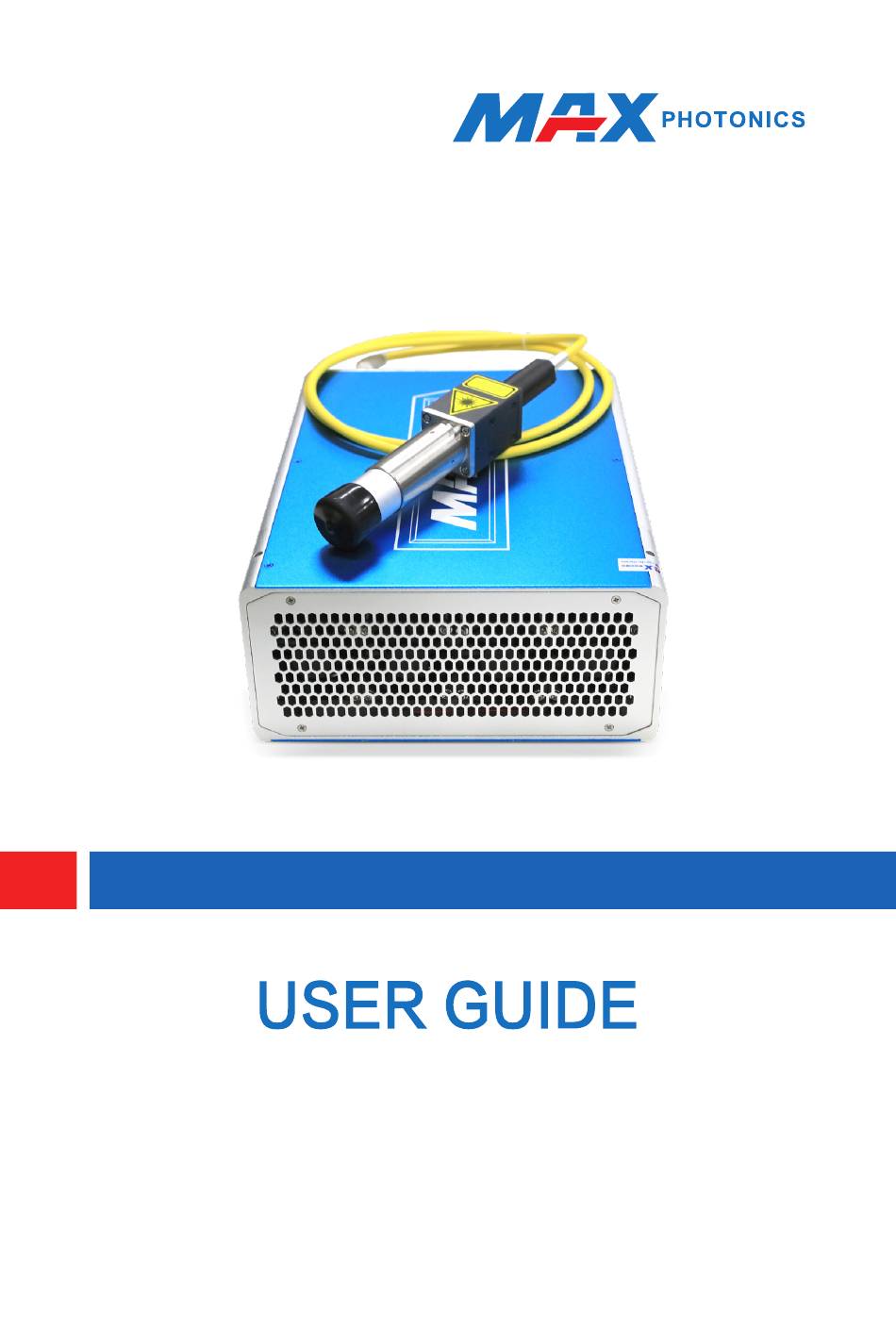

- Page 1 Q-SWITCHED PULSED FIBER LASER(MFP 5W-70W) Maxphotonics Co.,Ltd.
- Page 2 Maxphotonics grants no rights for patent or other intellectual property mentioned herein. Maxphotonics and the Maxphotonics Logo are registered trademarks of Maxphotonics Co., Ltd., and the Logo does not break any regulations of Trademark law. Maxphotonics Co.,Ltd. Address: Maxphotonics Industrial Park, 3rd Furong Road, Furong Industrial Area, Shajing, Baoan, Shenzhen, China.518125...
- Page 3 Preface Thank you for using the Q-Switched Pulsed Fiber Laser (MFP 5W-70W) Series products from Maxphotonics. We compile this document for you in order that the laser is used and maintained properly. Due to the limited level of the translaters, coupled with time constraints, there are some careless mistakes in this document, and your understanding will be much appreciated.
-
Page 4: Company Profile
Company Profile Found in 2004, Maxphotonics is one of the first fiber laser manufacturers in China. It is also the first in China to realize independent intellectual property rights and vertical integration in the core technologies of fiber lasers and optical devices. -
Page 5: Table Of Contents
Contents Company Profile ……………………………………………………………… 2 Chapter 1 Characteristic Explain …………………………………………… 5 Chapter 2 General Safety Information …………………………………… 6 1-Safety Conventions …………………………………………………………… 6 2-Laser Protection ……………………………………………………………… 7 3-General Safety Instructions ………………………………………………… 7 4-Additional Safety Information ……………………………………………… 12 Chapter 3 Product Description ……………………………………………… 13 1-Property Introductions …………………………………………………………... - Page 6 Contents 3-Structural Layout ……………………………………………………………… 18 Chapter 5 Operation Guide …………………………………………………… 20 1-Electrical Power Connection ………………………………………………… 20 2-Control Connector Pin Assignment, DB-25 Plug ………………………… 22 3-Laser Operation ……………………………………………………………… 25 4-Common Boards And Parameter Settings ………………………………… 27 Chapter 6 Common Fault Treatment ……………………………………… 29 Chapter 7 Service and Maintenance ………………………………………...
-
Page 7: Chapter 1 Characteristic Explain
Maxphotonics' Q-Switched Pulsed Fiber Laser (MFP 5W-70W) Series are Class 4 laser products and are designed and tested with safety. By following this User Guide and applying sound laser safety practices, it will be a safe and reliable device. -
Page 8: Chapter 2 General Safety Information
Chapter 2 General Safety Information 1-Safety Conventions All safety warning symbols during operating process of the laser include: SYMBOLS DESCRIPTION WARNING : Refer to a potential Electrical Hazards to human body; It requires certain procedures; otherwise, it may result in bodily harm to you and/or others. In order to ensure the personal safety of operators, do not violate the requirement of the WARNING sign. -
Page 9: 2-Laser Protection
LaserVision USA, Kentek Corporation, Rochwell Laser Industries, etc. All the supplier information is provided by Maxphotonics only for the convenience to use, so Maxphotonics assumes no responsibility for any problem caused by using the products of abovementioned suppliers. - Page 10 Chapter 2 General Safety Information 1.Specular Reflection There are often numerous secondary laser beams produced at various angles in the output port of the laser. These divergent beams are produced when the primary beam of laser reflects off a smooth surface, and they are called specular reflections.
- Page 11 Chapter 2 General Safety Information instruments). (7) Please use the defocus method to mark on the high-reflection material, otherwise the laser will be directly damaged. (8) For collimated output, please do not touch the output lens or any solvent for cleaning. Use lens tissue paper to clean the output lens. After use, please replace the protective cover of the sight.
- Page 12 Chapter 2 General Safety Information Cable Color Supply BROWN +24VDC BLUE YELLOW-GREEN SHELL WARNING : ◎ Please ensure that the equipment case is well grounded. Interruption at any point in the ground loop may cause personal injury. The interruption of the power supply voltage is very dangerous to the equipment.
- Page 13 Chapter 2 General Safety Information sure that there is at least 5cm between fan protector and external objects, and with sufficient airflow to cool the device. （3）Before switching on the device make sure that environmental temperature and humidity are within a specified range. WARNING : ◎...
-
Page 14: 4-Additional Safety Information
Chapter 2 General Safety Information 4-Additional Safety Information For additional information regarding Laser Safety, please refer to the list below: Laser Institute of America(LIA) 13501 Ingenuity Drive, Suite 128 Orlando,Florida 32826 Phone:407 380 1553,Fax: 407 380 5588 Toll Free:1 800 34 LASER American National Standards Institute ANSI Z136.1, American National Standard for the Safe Use of Lasers (Available through LIA) -
Page 15: Chapter 3 Product Description
Chapter 3 Product Description 1-Property Introductions The MFP acousto-optic Q-switched fiber laser uses a Q-switch (Photoelectric switch) main oscillator and a high-power fiber amplifier (MOPA). The emission wavelength is 1064nm, and the operating parameters are set through the 25Pin control interface, which is suitable for laboratory and industrial applications. Convenient operation, overall maintenance-free, can be directly integrated into user equipment. -
Page 16: 2-Laser Model Designation Codes
MFP-70W Maxphotonics Q-Switched Pulsed Fiber Laser 70W 3-Certification Maxphotonics certifies that this equipment has been thoroughly tested and inspected and meets published specifications prior to shipping. Upon receiving your equipment, check whether the packaging and accessories have been damaged in transit. If damage is apparent, please contact Maxphotonics... -
Page 17: Chapter 4 Specification
Chapter 4 Specification Optical Characteristic Parameters NO. Characteristics Test Conditions Min. Typical Max. Unit Mode Pulse Polarization Random MFP-5W/10W/20X/ 20W/30X Beam Quality M² MFP-20H/30W/30H /50W/50X/50H/70W Center Wavelength Pout=Pnom 1060 1064 1070 nm Spectrum Width(3dB) Pout=Pnom MFP-5W MFP-10W 10.5 MFP-20X 18.5 MFP-20W/H 20.5... - Page 18 Chapter 4 Specification MFP-5W MFP-10W MFP-20W/H/X Optical Pulse Width(FWHM) MFP-30W/H/X MFP-50W/H/X MFP-70W MFP-5W MFP-10W MFP-20X MFP-20H/30H Pulse Repetition MFP-30X Frequency (PRF.) MFP-30W/20W MFP-50W/X MFP-50H MFP-70W Output Power Pout=Pnom Stability MFP-5W MFP-10W 12 Beam Diameter 1/e2 20X/20W/20H 30X/30W/30H 50X/50W/50H/70W 13 Beam Ellipticity...
-
Page 19: 2-General Characteristic Parameters
℃ Storage Temperature Cooling Air-cooling -Operate Warm Up Time -Stable Operating Environment humidity Standard Edition 345.5×266.2×120 Dimensions Small version 287×219×94.61 MFP-5W MFP-10W MFP-20W/X MFP-30W/H/X MFP-5W Small version MFP-10W Weight Small version MFP-20W/H/X Small version MFP-30X Small version MFP-50W/H/X MFP-70W Power Supply... -
Page 20: 3-Structural Layout
Chapter 4 Specification 3-Structural Layout Q-Switched Pulsed Fiber Laser Small version dimensions (Unit mm): Q-Switched Pulsed Fiber Laser 50W-70W dimensions (Unit mm):... - Page 21 Chapter 4 Specification Laser isolator output head dimensions are shown below (Unit mm):...
-
Page 22: Chapter 5 Operation Guide
User Guide+ Qualified Test Result Power Wire (Optional) CAUTION : ◎ If any damage of the external package and internal parts has been found upon receipt of product, please contact Maxphotonics Co., Ltd. or designated agent immediately . 1-Electrical Power Connection Power wire... - Page 23 Chapter 5 Operation Guide Recommended electrical connection diagram： +24VDC(Red line) + 24 V D C （红 线） +24VDC Laser module + 24 V D C +24VDC Back to "Hover" (black line) + 24 V D C 返回 “悬浮 ”（黑线 ） Power power supply 电...
-
Page 24: 2-Control Connector Pin Assignment, Db-25 Plug
Chapter 5 Operation Guide a 470 ohm resistor and a 47nF capacitor in parallel. This network is used to balance the voltage difference between the ground and the laser case. ◎ According to the design, the ground of the control card may be connected to the ground;... - Page 25 Chapter 5 Operation Guide Pulse Repetition Rate (Synchronization) input Refer to PRR range. Allowed duty cycle is 0.1~0.9. Guide Laser (red diode) ON/OFF input - HIGH: ON - LOW or disconnected：OFF Emergency Stop Input - High: OK (Normal operation) - LOW or disconnected: STOP 2.
- Page 26 Chapter 5 Operation Guide Pin16 Pin21 Alarm description Laser temperature is out of the operating temperature range. Normal Operation MO Alarm （4）Pin 18 is the Master Oscillator (MO) signal. The MO should be switched ON at least 5ms earlier than the Booster (BS) is switched ON. Once the MO is switched ON, the laser starts to consume more electrical power.
-
Page 27: 3-Laser Operation
Chapter 5 Operation Guide laser safety circuit will substitute the missing pulses or limit the PRR. ◎ The laser emission is not allowed simultaneously with the guide laser. The BS is blocked internally during the guide laser operation. If pin 19 is set HIGH but the guide laser is on, the laser will not emit light, unless the guide laser is switched OFF. - Page 28 Chapter 5 Operation Guide (7) Set the desired power from Pin1 ~ 8; (8) Set Pin18 to H level and turn on MO; (9) Wait for 5ms; (10) Fast modulation of the laser by Pin19. Enter the H / L level to control the laser on and off.
-
Page 29: 4-Common Boards And Parameter Settings
Chapter 5 Operation Guide Pin21 outputs the corresponding alarm signal. If the temperature drops below + 45 ° C, the laser will not automatically resume working, and keep the alarm signal unchanged, restart the operation. 4-Common Boards And Parameter Settings MFP acousto-optic Q-switched fiber lasers reflect high-speed and high-efficiency capabilities, so it is required to configure high-speed galvanometers as much as possible to reflect their performance advantages. - Page 30 Chapter 5 Operation Guide F=100 F=160 F=254 F=330 F=420 F=525 A+: The effect is very good, the laser is stronger after focusing; A: Moderate effect, lower efficiency than A+ field lens; B: General effect, suitable for materials that do not require high energy density; C: Weak light, not recommended.
-
Page 31: Chapter 6 Common Fault Treatment
Chapter 6 Common Fault Treatment Laser Troubleshooting Table Fault Check items Troubleshooting steps phenomenon 1. Check whether the power supply wiring of the laser is correct, whether + 24V and GND are reversed, and whether the ground wire is grounded. Power 2. - Page 32 Chapter 6 Common Fault Treatmentnt Laser Troubleshooting Table Fault Check items Troubleshooting steps phenomenon Working 1. Check whether the power supply is stable and the current current reaches the rated working current. confirmation 2. Check whether the output mirror surface of the collimator is contaminated.
- Page 33 Chapter 6 Common Fault Treatment Laser Troubleshooting Table Fault Check items Troubleshooting steps phenomenon Working current 1. Check whether the power supply is stable and confirmation the current reaches the rated working current. 2. Check whether the output mirror surface of the collimator is contaminated.
- Page 34 Chapter 6 Common Fault Treatmentnt Laser Troubleshooting Table Fault Check items Troubleshooting steps phenomenon Working current 1. Check whether the power supply is stable and confirmation the current reaches the rated working current. 2. There is a disconnection during the marking process, usually due to signal interference.
-
Page 35: Chapter 7 Service And Maintenance
◎ For ensuring that the repairs or replacement within the warranty scope can be carried out, and perfectly maintaining your interests, please submit application to the Maxphotonics or the local representative after finding the faults. Upon receiving our authorization, you need to pack the product in a suitable package and return it. -
Page 36: 2-Service Statements
"User Guide". Please call the Customer Service Department for other questions. If your problems cannot be solved over the telephone with our technical support group, you may need to return the product to Maxphotonics for further troubleshooting. -
Page 37: Chapter 8 Warranty Statements
Chapter 8 Warranty Statements 1-General Items Maxphotonics carries out warranty for any defect of the product caused by its material and production technology within the warranty period agreed in contract, and ensures that its product meet the relevant quality and specification requirements specified in the document under normal use condition. - Page 38 IMPORTANT: ◎ Within the warranty scope, purchasers must feedback within 31 days after finding the product defect. ◎ Maxphotonics does not grant any Third Party rights to repair or replace the parts, the equipment or other Maxphotonics products.
