Kado Lux HiFlow Exhaust Fan 200mm & 250mm
INSTALLATION INSTRUCTIONS
Please read these instructions carefully before installing and using the product. Keep the instructions handy for future
Please read these instructions carefully before installing and using the product. Keep the instructions handy for future
reference. Electrical wiring must only be done by a licensed electrician and a "Certificate of Compliance" must be issued
reference. Electrical wiring must only be done by a licensed electrician and a "Certificate of Compliance" must be issued on
on completion of the installation. completion of the installation.
LOCATION
LOCATION
The unit must be located and installed in accordance with AS/NZS 3000 and local building codes relating to damp situations. The
The unit must be located and installed in accordance with AS/NZS 3000 and local building codes relating to damp situations.
unit can be installed in flat ceilings with a minimum height of 2 metres. At least 200mm height clearance in the ceiling cavity is
The unit can be installed in flat ceilings with a minimum height of 2 metres. At least 200mm height clearance in the ceiling
required to ensure sufficient ventilation for moisture to disperse. Ensure adequate inlets exist through windows, vents or under the
cavity is required to ensure sufficient ventilation for moisture to disperse.
door for airflow. Regulations concerning the discharge of air must be fulfilled.
Ensure adequate inlets exist through windows, vents or under the door for airflow.
Regulations concerning the discharge of air must be fulfilled.
POWER
AC220~240V, 50Hz electrical supply is required. The unit can be connected to a lighting or power circuit if loading permits.
POWER
All electrical work must be carried out in accordance with AS/NZS 3000 or latest edition thereof, and local building codes and
regulations. Ensure that supply power is isolated before commencing installation.
AC220~240V, 50Hz electrical supply is required. The unit can be connected to a lighting or power circuit if loading permits.
All electrical work must be carried out in accordance with AS/NZS 3000 or latest edition thereof, and local building codes and
IMPORTANT CONSIDERATIONS
regulations. Ensure that supply power is isolated before commencing installation.
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities.
Or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the IMPORTANT CONSIDERATIONS
appliance by a person responsible for their safety.
1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities.
Or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance
2. Children should be supervised to ensure that they do not play with the appliance.
by a person responsible for their safety.
3. Fan must be installed at least 1200mm above any hotplate and must have at least 500cm clearance at the exhaust outlet.
2. Children should be supervised to ensure that they do not play with the appliance.
4. Do not install fan in locations that may get extremely hot.
3. Fan must be installed at least 1200mm above any hotplate and must have at least 500cm clearance at the exhaust outlet.
5. Ensure the fan has at least 20mm clearance in the ceiling space before installing.
4. Do not install fan in locations that may get extremely hot.
6. Minimum installation height is 2100mm from the floor to the bottom of the exhaust fan.
5. Ensure the fan has at least 20mm clearance in the ceiling space before installing.
7. If the room where the fan is to be installed already contains a stove, water heater or a gas fire, it is essential to ensure that
6. Minimum installation height is 2100mm from the floor to the bottom of the exhaust fan.
air supply to the room is enough for both the fan and the combustion appliance.
7. If the room where the fan is to be installed already contains a stove, water heater or a gas fire, it is essential to ensure that
air supply to the room is enough for both the fan and the combustion appliance.
8. Please check the appliance has not been damaged during transportation.
8. Please check the appliance has not been damaged during transportation.
9. Check the electrical specifications label corresponds to your electrical supply.
9. Check the electrical specifications label corresponds to your electrical supply.
10. When using double pole switch connection, the switch must have a minimum 3mm separation on all poles.
10. When using double pole switch connection, the switch must have a minimum 3mm separation on all poles.
11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similar qualified person in
11. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similar qualified person in
order to avoid a hazard.
order to avoid a hazard.

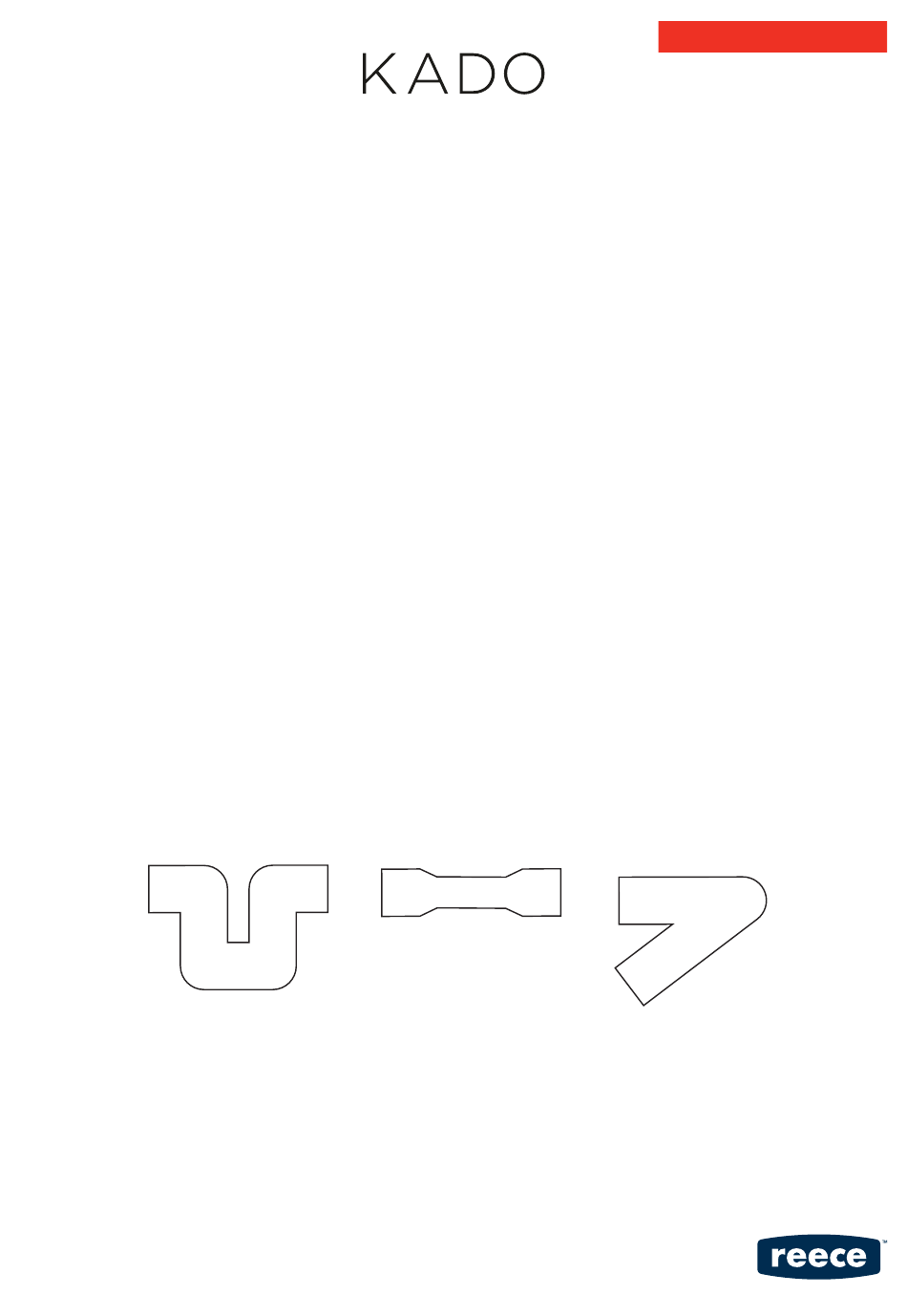

12. When adding duct, avoid bending the duct in the following shapes:
12. When adding duct, avoid bending the duct in the following shapes:
13. Adhere to the latest national wiring rules AS/NZS3000, for wiring and when installing in bathrooms, nearby sinks and water
taps.
13. Adhere to the latest national wiring rules AS/NZS3000, for wiring and when installing in bathrooms, nearby sinks and taps.
14. For the exhaust fan to work effectively, replacement air of volume equivalent to what is being extracted must be able to
14. For the exhaust fan to work effectively, replacement air of volume equivalent to what is being extracted must be able to
enter the room. In general, this air would be drawn under the door or through a slightly open window. If the room is air tight, the
enter the room. In general, this air would be drawn under the door or through a slightly open window. If the room is air tight,
fan will function poorly.
the fan will function poorly.
15. Before commencing any cutting, check in the mounting location so that there is no obstruction such as ceiling frames or
15. Before commencing any cutting, check in the mounting location so that there is no obstruction such as ceiling frames or
joints, and that there is sufficient height clearance for the housing. Check the electrical wiring can be routed from the wall
joints, and that there is sufficient height clearance for the housing. Check the electrical wiring can be routed from the wall
switch to the mounting location.
switch to the mounting location.
16. This fan is not intended for mounting in outside windows or walls.
16. This fan is not intended for mounting in outside windows or walls.
Plumbers, please ensure a copy of the installation
instructions is left with the end user for future reference.
