KADO

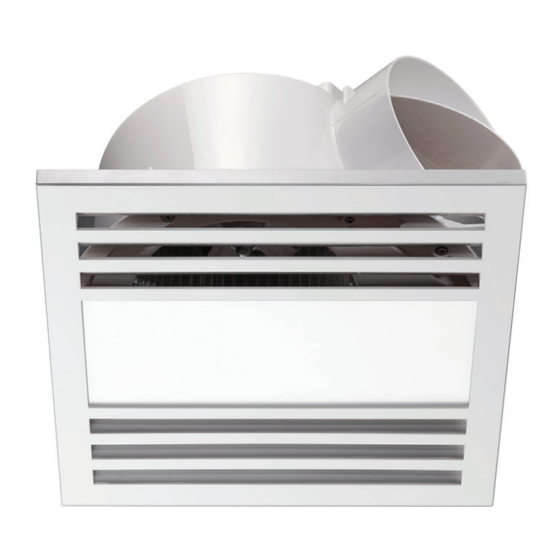

LUX LED EXHAUST FAN 200
272mm
Dimensions are nominal measurements only.
SPECIFICATIONS
Recommended use
Material
Colour availability
Fascia Size
Weight
Exhaust
Air Movement
Air Outlet Size
LED Light
Cutout Size
Min Install Depth
Install Type
IP Rating
*All Airflow data has been gathered in accordance
with International Industry Standards ISO 5801.
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the
product warranty. Refer to Warranty Conditions.
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions are nominal measurements only.
Dimensions and set-outs listed are correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
Domestic, Hotel and Commercial
ABS Plastic/Stainless Steel
White, Silver
272 x 272mm
2.2kg
30w side ducted
40 L/sec (143m
/H)*
3
100mm
10 watt LED Panel
240mm diameter round
200mm
AC Plug and lead included
IPX4
240mm
To see the complete KADO range go to
www.reece.com.au/bathrooms
PART NO.
REX200WHL
White
REX200SSL
Silver
Also see:
• REX250WHL/SSL for higher airflow
• REX200WH/SS for no light version
page 1 of 5
170mm
REECE CODE
2053298
2053300
