KADO

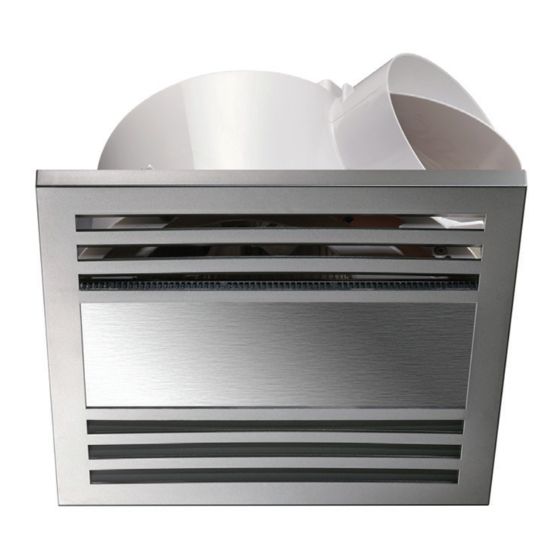

LUX EXHAUST FAN 200
272mm
Dimensions are nominal measurements only.
SPECIFICATIONS
Recommended use
Fascia Material
Colour availability
Grille Size
Weight
Exhaust
Air Movement
Air Outlet Size
Cutout Size
Min Install Depth
Install Type
IP Rating
*All Airflow data has been gathered in accordance
with International Industry Standards ISO 5801.
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the
product warranty. Refer to Warranty Conditions.
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions are nominal measurements only.
Dimensions and set-outs listed are correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
Domestic, Hotel and Commercial
ABS Plastic/Stainless Steel
White, Silver
272 x 272mm
2.2kg
30w side ducted
42 L/sec (171m
/H)*
3
100mm
240mm diameter round
200mm
AC Plug and lead included
IPX4
240mm
To see the complete KADO range go to
www.reece.com.au/bathrooms
PART NO.
REX200WH
White
REX200SS
Silver
Also see:
• REX250WH/SS for higher airflow
• REX200WHL/SSL for LED Light version
page 1 of 4
170mm
REECE CODE
2053294
2053296
Advertisement
Related Manuals for Reece KADO REX200WH
Summary of Contents for Reece KADO REX200WH
- Page 1 Min Install Depth 200mm Install Type AC Plug and lead included IP Rating IPX4 *All Airflow data has been gathered in accordance with International Industry Standards ISO 5801. PART NO. REECE CODE REX200WH White 2053294 REX200SS Silver 2053296 CLEANING RECOMMENDATIONS Also see: We recommend the use of soapy water or approved cleaners.
- Page 2 page 2 of 4 KADO LUX EXHAUST FAN 200 TECHNICAL SPECIFICATIONS Duct Length in EXHAUST REX250 relation to airflow Air Delivery 42 L/sec (171m /H)* (approx only) Motor Power 30 watts Noise Level 38dB(A) REX200 Ball Bearing Duct Outlet Size 100mm Draft Stopper /H 30 60 90 120 150 180 210 240 270 300 330...
- Page 3 page 3 of 4 KADO LUX EXHAUST FAN 200 INSTALLATION INSTRUCTIONS Please read these instructions carefully before installing and using the product. Keep the instructions handy for future reference. LOCATION The unit must be located and installed in accordance with AS/NZS 3000 and local building codes relating to damp situations. The unit can be installed in flat ceilings with a minimum height of 2 metres.
- Page 4 page 4 of 4 KADO LUX EXHAUST FAN 200 INSTALLATION INSTRUCTIONS WARNING: AN ALL-POLE DISCONNECTION MUST BE INCORPORATED INTO THE FIXED WIRING IN ACCORDANCE WITH THE WIRING RULES AS OUTLINE IN CLAUSE 7.12.2 OF AS/NZS 60335-1 FOR MEETING THE MINIMUM ELECTRICAL SAFETY OF THIS STANDARD. Warning: Ensure the power supply to the exhaust fan is switch OFF before carrying out any installation and maintenance.
