KADO

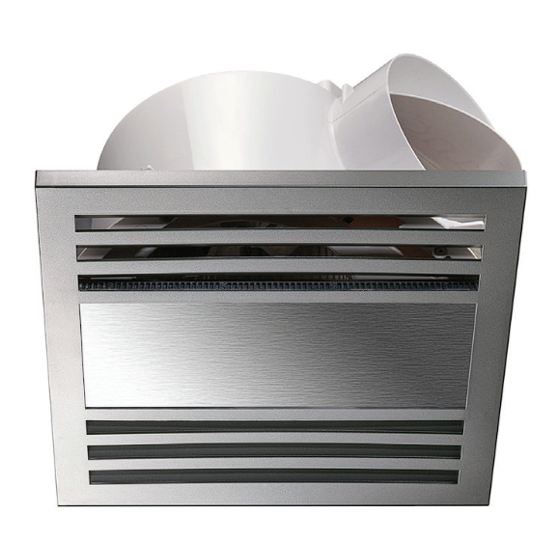

LUX EXHAUST FAN 250
326mm
Dimensions are nominal measurements only.
SPECIFICATIONS
Recommended use
Material
Colour availability
Fascia Size
Weight
Exhaust
Air Movement
Air Outlet Size
Cutout Size
Min Install Depth
Install Type
IP Rating
*All Airflow data has been gathered in accordance
with International Industry Standards ISO 5801.
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the
product warranty. Refer to Warranty Conditions.
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions are nominal measurements only.
Dimensions and set-outs listed are correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
Domestic, Hotel and Commercial
ABS Plastic/Stainless Steel
White, Silver
326 x 326mm
3.8kg
50w side ducted
99 L/sec (356m
/H)*
3
150mm
296mm diameter round
220mm
AC Plug and lead included
IPX4
296mm
To see the complete KADO range go to
www.reece.com.au/bathrooms
PART NO.
REX250WH
White
REX250SS
Silver
Also see:
• REX200WH/SS for smaller unit
• REX250WHL/SSL for LED Light version
page 1 of 4
197mm
REECE CODE
2053293
2053295
Advertisement
Table of Contents
Related Manuals for Reece KADO LUX EXHAUST FAN 250
Summary of Contents for Reece KADO LUX EXHAUST FAN 250
- Page 1 Min Install Depth 220mm Install Type AC Plug and lead included IP Rating IPX4 *All Airflow data has been gathered in accordance with International Industry Standards ISO 5801. PART NO. REECE CODE REX250WH White 2053293 REX250SS Silver 2053295 CLEANING RECOMMENDATIONS Also see: We recommend the use of soapy water or approved cleaners.
- Page 2 page 2 of 4 KADO LUX EXHAUST UNIT 250 TECHNICAL SPECIFICATIONS Duct Length in EXHAUST REX250 relation to airflow Air Delivery 99 L/sec (356m /H)* (approx only) Motor Power 50 watts Noise Level 42dB(A) REX200 Ball Bearing Duct Outlet Size 150mm Draft Stopper /H 30 60 90 120 150 180 210 240 270 300 330...
- Page 3 page 3 of 4 KADO LUX EXHAUST UNIT 250 INSTALLATION INSTRUCTIONS Please read these instructions carefully before installing and using the product. Keep the instructions handy for future reference. Electrical wiring must only be done by a licensed electrician and a “Certificate of Compliance” must be issued on completion of the installation.
- Page 4 page 4 of 4 KADO LUX EXHAUST UNIT 250 INSTALLATION INSTRUCTIONS WARNING: AN ALL-POLE DISCONNECTION MUST BE INCORPORATED INTO THE FIXED WIRING IN ACCORDANCE WITH THE WIRING RULES AS OUTLINE IN CLAUSE 7.12.2 OF AS/NZS 60335-1 FOR MEETING THE MINIMUM ELECTRICAL SAFETY OF THIS STANDARD. Warning: Ensure the power supply to the exhaust fan is switch OFF before carrying out any installation and maintenance.
