KADO

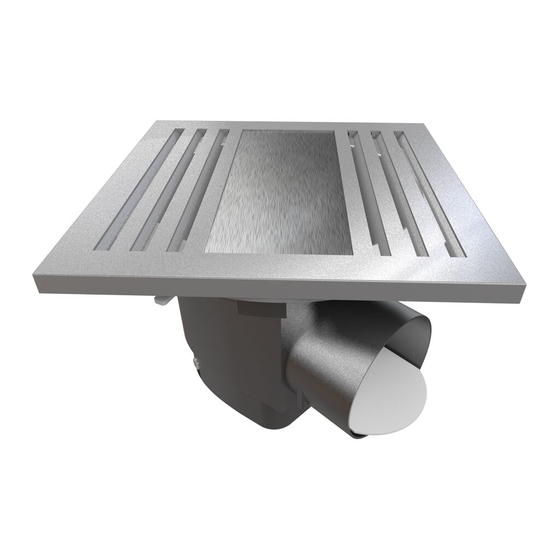

LUX LED EXHAUST FAN 250
326mm
Dimensions are nominal measurements only.
SPECIFICATIONS
Recommended use
Material
Colour availability
Fascia Size
Weight
Exhaust
Air Movement
Air Outlet Size
LED Light
Cutout Size
Min Install Depth
Install Type
IP Rating
*All Airflow data has been gathered in accordance
with International Industry Standards.
CLEANING RECOMMENDATIONS
We recommend the use of soapy water or approved cleaners.
This product should not be cleaned with abrasive materials.
Damage caused by any improper treatment is not covered by the
product warranty. Refer to Warranty Conditions.
Disclaimer: Products in this specification manual must by regulation be installed by licensed and registered trade people. The manufacturer/distributor
reserves the right to vary specifications or delete models from their range without prior notification. Dimensions are nominal measurements only.
Dimensions and set-outs listed are correct at time of publication however the manufacturer/distributor takes no responsibility for printing errors.
Tech Page Version 1
Domestic, Hotel and Commercial
ABS Plastic/Stainless Steel
White, Titanium
326 x 326mm
3.8kg
50w side ducted
90 L/sec (324m
/H)*
3
150mm
14 watt LED Panel
296mm diameter round
220mm
AC Plug and lead included
IPX4
296mm
To see the complete KADO range go to
www.reece.com.au/bathrooms
PART NO.
REX250WHL
White
REX250SSL
Titanium
Also see:
• REX200WHL/SSL for smaller unit
• REX250WH/SS for no light version
page 1 of 5
197mm
REECE CODE
2053297
2053299
Advertisement
Table of Contents
Related Manuals for Reece KADO 250
Summary of Contents for Reece KADO 250
- Page 1 Cutout Size 296mm diameter round Min Install Depth 220mm Install Type AC Plug and lead included IP Rating IPX4 PART NO. REECE CODE *All Airflow data has been gathered in accordance REX250WHL White 2053297 with International Industry Standards. REX250SSL Titanium 2053299...
-
Page 2: Installation
page 2 of 5 KADO LUX LED EXHAUST FAN 250 TECHNICAL SPECIFICATIONS Duct Length in EXHAUST REX250L relation to airflow Air Delivery 90 L/sec (324m /H)* (approx only) Motor Power 50 watts Noise Level 42dB(A) REX200L Ball Bearing Duct Outlet Size 150mm Draft Stopper /H 30 60 90 120 150 180 210 240 270 300 330... -
Page 3: Installation Instructions
page 3 of 5 KADO LUX LED EXHAUST FAN 250 INSTALLATION INSTRUCTIONS Please read these instructions carefully before installing and using the product. Keep the instructions handy for future reference. Electrical wiring must only be done by a licensed electrician and a “Certificate of Compliance” must be issued on completion of the installation. -
Page 4: Electrical Wiring
page 4 of 5 KADO LUX LED EXHAUST FAN 250 INSTALLATION INSTRUCTIONS WARNING: AN ALL-POLE DISCONNECTION MUST BE INCORPORATED INTO THE FIXED WIRING IN ACCORDANCE WITH THE WIRING RULES AS OUTLINE IN CLAUSE 7.12.2 OF AS/NZS 60335-1 FOR MEETING THE MINIMUM ELECTRICAL SAFETY OF THIS STANDARD. Warning: Ensure the power supply to the exhaust fan is switch OFF before carrying out any installation and maintenance. -
Page 5: Care And Maintenance
1 YEAR WARRANTY – COMMERCIAL USE You have purchased a quality product from Reece Pty Ltd ABN 84 004 097 090 (“Reece”). This product is covered by ‘Commercial’ use is all use other than for normal domestic a 7 year replacement product warranty including a 24 month residential purposes, including use in non-business places replacement warranty on spare parts (LED light and fascia).
