Coleman Powersports BK200-K Assembly Instructions Manual
  1. Manuals
  2. Brands
  3. Coleman Powersports Manuals
  4. Utility Vehicle
  5. BK200-K
  6. Assembly instructions manual

Coleman Powersports BK200-K Assembly Instructions Manual

Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Table of Contents

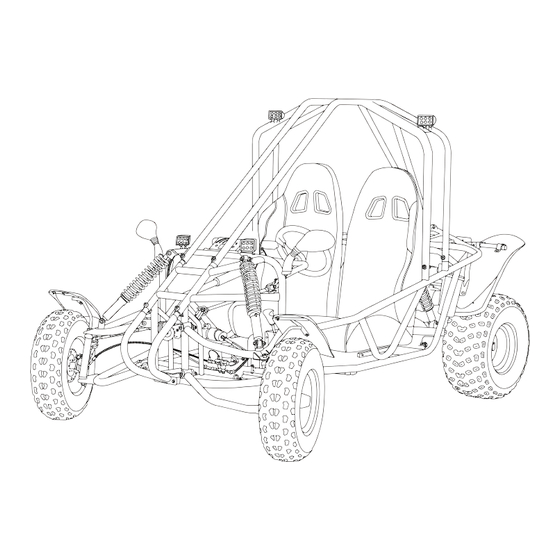

CAUTION
THIS GO KART WAS
SHIPPED WITHOUT
ENGINE OIL. ALWAYS
FILL WITH THE
CORRECT AMOUNT AND
POWERSPORTS
GRADE OF ENGINE OIL
AS LISTED IN THE
OWNER'S MANUAL
ASSEMBLY/PRE-RIDE
INSPECTION INSTRUCTIONS
BK200-K
FOR QUESTIONS ABOUT THESE ASSEMBLY INSTRUCTIONS,
CALL COLEMAN POWERSPORTS 888-405-8725
WARNING
WARNING
NEVER ATTEMPT TO START THIS GO KART WITHOUT READING
AND UNDERSTANDING THE OWNER'S/ OPERATOR'S MANUAL.
THE OWNER'S OPERATOR'S MANUAL PROVIDES INFORMATION
ON SAFETY, PARTS, FUNCTIONS, PRE-RIDE INSPECTION,
STARTING AND MAINTENANCE
3J1R22

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BK200-K and is the answer not in the manual?

Questions and answers

Related Manuals for Coleman Powersports BK200-K

Summary of Contents for Coleman Powersports BK200-K

  • Page 1 AS LISTED IN THE OWNER’S MANUAL ASSEMBLY/PRE-RIDE INSPECTION INSTRUCTIONS BK200-K FOR QUESTIONS ABOUT THESE ASSEMBLY INSTRUCTIONS, CALL COLEMAN POWERSPORTS 888-405-8725 WARNING WARNING NEVER ATTEMPT TO START THIS GO KART WITHOUT READING AND UNDERSTANDING THE OWNER’S/ OPERATOR’S MANUAL. THE OWNER’S OPERATOR’S MANUAL PROVIDES INFORMATION...

  • Page 2: Removal From Crate

    REMOVAL FROM CRATE 1. Remove metal crate from around Go-Kart. HARDWARE PACK 2. Locate and Remove Owner’s/ Operator’s manual, Set up Rear Tires instructions and all documentation. Note: Read Owner’s / Operator’s manual thoroughly before starting Go-Kart for the first time. Front Tires 3.
  • Page 3 REAR AND FRONT SHOCK ASSEMBLY FRONT SHOCK ASSEMBLY Hardware: M10 X 45 bolts 4ea. (1) M10 Lock Nuts 4 ea. (2) Note: The center of the Go-kart will need to be lifted to install shocks, spindles and wheels. This can be done with a floor jack. Rear assembly 1.
  • Page 4 FRONT WHEEL INSTALLATION FRONT AND REAR WHEEL INSTALLATION HARDWARE Hardware: M10 Lock nuts 16 ea. (1). M10 Lug Nuts - 8pcs (1) 1. Install front tires with valve stems facing out. 1. Orient and install front and rear Ensure tread pattern is tires with Air valve stems facing facing forward (2).

  • Page 5: Seat Installation

    SEAT INSTALLATION...
  • Page 6 BRUSH GUARD INSTALLATION M8 X 60 bolts 5 ea. (1) M8 X 55 bolts 6 ea. (2) M8 Lock Nuts 6 ea. (3) M8 Concave Spacers 1 7 ea. (4) 1、4 1. Attach Middle protecting pole (5) with M8 X55 bolts (2) , Concave Spacers (4) and Lock Nuts (3).
  • Page 7 FRONT BUMPER NSTALLATION M8 X 60 bolts 2 ea. (1) M8 X 55 bolts 2 ea. (2) M8 Lock Nuts 4 ea. (3) M8 Concave Spacers 4 ea. (4) 1. Attach Front Bumper (5) to Frame with M8X 60 bolts (1) , M8 X 55 bolts (2),Concave Spacers (4) and Lock Nuts (3).

  • Page 8: Oil Cooler Installation

    OIL COOLER NSTALLATION(Use only in 200cc) OIL COOLER INSTALLATION M6 X 20 bolts 2 ea. (1) M6 X 30 bolts 2 ea. (2) M6 Lock Nuts 4 ea. (3) 1. Attach Oil Cooler (4) to Frame and Rear guide bar with M6 X 20 bolts (1) , M6 X 30 bolts(2), and Lock Nuts (3).
  • Page 9 WARNING NEVER ATTEMPT TO START THIS GO KART WITHOUT READING AND UNDERSTANDING THE OWNER’S/ OPERATOR’S MANUAL. THE OWNER’S/ OPERATOR’S MANUAL PROVIDES INFORMATION PROVIDES INFORMATION ON SAFETY, PARTS, FUNCTIONS, PRE-RIDE INSPECTION, STARTING AND MAINTENANCE POWERSPORTS (888) 405-8725 1775 E. University Dr., Tempe, AZ 85281 www.colemanpowersportsusa.com www.facebook.com/colemanpowersportusa.com www.instagram.com/colemanpowersports_usa...

Table of Contents
