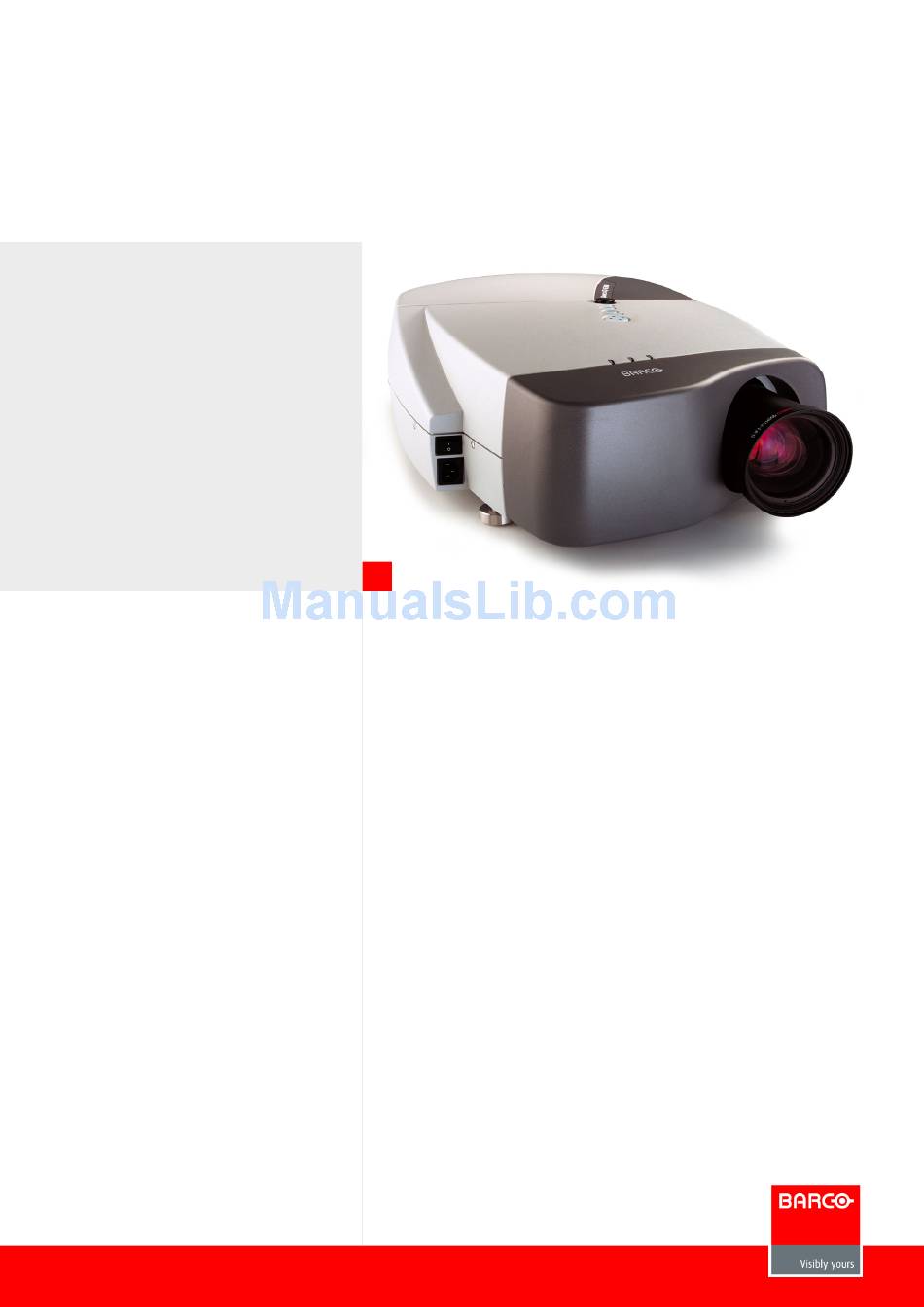

iQ G350
Barco's advanced pictureinpicture LCD projector with XGA resolution and a brightness of 3,500 ANSI lumens
Barco's iQ G350 with its advanced pictureinpicture feature can display
up to four scaleable images at the same time on a single screen. Its builtin
switcher makes seamless source switching a snap, and you get many
special transition effects to choose from.
Barco's innovative duallamp system guarantees optimal reliability: if one
lamp fails for any reason, the other lamp will keep on running. This versatile
LCD projector with XGA resolution delivers an amazing brightness level of
3,500 ANSI lumens. The iQ Series is the smartest choice for compelling
presentations in any venue, from brightly lit boardrooms to larger conference
centers.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Barco iQ G350
Summary of Contents for Barco iQ G350
- Page 1 Barco’s advanced pictureinpicture LCD projector with XGA resolution and a brightness of 3,500 ANSI lumens Barco’s iQ G350 with its advanced pictureinpicture feature can display up to four scaleable images at the same time on a single screen. Its builtin switcher makes seamless source switching a snap, and you get many special transition effects to choose from. Barco’s innovative duallamp system guarantees optimal reliability: if one lamp fails for any reason, the other lamp will keep on running. This versatile...
- Page 2 Product specifications iQ G350 Light output 3,500 ANSI lumens Resolution XGA (1024 x 768) Brightness uniformity > 95 % for the total screen Contrast ratio > 800:1 (full white/full black) Display 3 active matrix 1.4" diagonal XGA polysilicon LCD panels with Micro Lens Arrays and a resolution of 1024 x 768 pixels (aspect ratio 4:3). LCD panels are selected for a minimum of pixel defects. Features AutoImage Advanced pictureinpicture Seamless switching with effects Standard cable basket Standard light shutter Advanced digital zoom Pictureinpicture Up to 4 sources simultaneously (2 data, 1 video and 1 SDI) Inputs 1x Configurable 5Wire (BNC) for: Composite Video, SVideo, Component Video , RGBHV, RGBS, RGsB. 1x Composite Video (BNC) (up to 7 Composite Video’s when using all connectors on top input board) 1x SVideo (4pin miniDIN) (up to 3 SVideo’s when combining BNC’s) 1x VGA (D15 connector) 1x DVI (Digital Visual Interface) Outputs No output Communication 1 x D9 connectors for RS232 In/Out 1 x spherical IR receiver Compatibility All current video sources (PAL, SECAM, NTSC) in Composite, SVHS, Component or RGB formats All currently proposed HDTV, extended and improved television standards (1080i, 720p) All computer graphics formats from VGA, SVGA, XGA, SXGA to UXGA...
- Page 3 Product specifications iQ G350 Dust filters High Quality Microfilter (side removeable) Noise Level < 37dB Mains Voltage 90V255V Power consumption Max. 520 Watt Power Dissipation Max. 1775 BTU/h AC power Power factor preregulated SPMS, 90254 VAC / 5060Hz Weight Net weight: Body only 12.9kg / 28.5 lbs. Shipping weight: • without lens: max.17.5 kg / 28.5 lbs. • with lens: max. 20 kg / 44 lbs. Dimensions Projector body with cable basket: 415 mm (max. W) x 195 mm (max. H) x 565 (max. D) Projector body without cable basket: 415 mm(max. W) x 195 mm (max. H) x 487 (max. D) Safety Regulations Compliant with UL1950 and EN60950 Electromagnetic Interference Compliant with FCC rules & regulations, part 15 Class B and CE EN55022 Class B Generated on: 28 Jan 2014 Technical specifications are subject to change without prior notice. Please check www.barco.com for the latest information.
