TROUBLE SHOOTING
Exit does not light
• Check wiring connections.
• Secondary connection to LED light strip loose or
missing.
Emergency circuit does not work
• Batteries are shipped uncharged and disconnected.
Charge battery before testing.
• Check wiring connections.
MAINTENANCE
Signs should be tested and maintained in accordance
with National Electrical Code and NFPA 101 Life Safety Code
requirements. It is recommended that emergency exit
signs be tested for 30 seconds monthly and for
90 minutes annually.
RECYCLING INFORMATION
All thermoplastic parts are recyclable.
All cartons contain recycled materials.
Please recycle.
NOTICE:
Emergency model exit signs contain
rechargeable nickel-cadmium
batteries which must be recycled or
disposed of properly.
currentlighting.com/dual-lite
© 2022 HLI Solutions, Inc. All rights reserved. Information and specifications subject to change
without notice. All values are design or typical values when measured under laboratory conditions.
REVERSING EXIT PLAQUE ASSEMBLY
To reverse plaques on end mounted models
1. Remove end cap retaining screw
2. Slide plaque out of LED light strip extrusion
3. Rotate plaque
4. Slide plaque into LED light strip extrusion
5. Reinstall end cap
Rev 05/31/22
lesseries-installinstr-0601651_b_R01

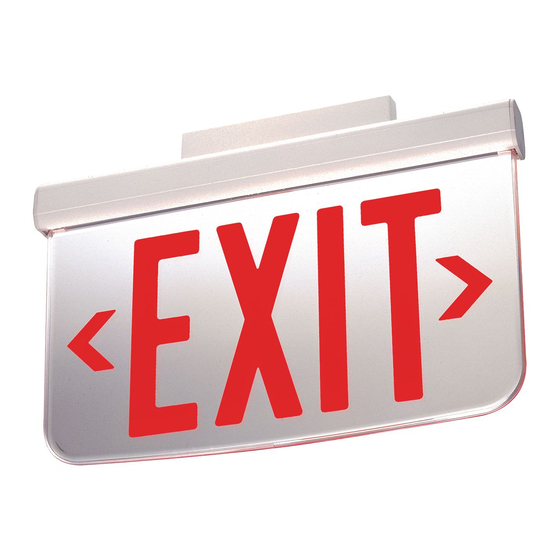

LES Series
Surface Mount Edge-Lit
LED Exit Signs
IMPORTANT SAFEGUARDS
When using electrical equipment, basic safety precautions should always be followed including the following:
READ AND FOLLOW ALL SAFETY INSTRUCTIONS
1. Do not use outdoors.
2. Do not mount near heaters or hot surfaces.
3. Equipment should be mounted in locations and at heights where it will not readily be subjected to
tampering by unauthorized personnel.
4. The use of accessory equipment not authorized by the manufacturer may cause an unsafe condition.
5. Do not use this equipment for other than its intended purpose.
6. Service of this equipment should be performed by qualified service personnel.
SAVE THESE INSTRUCTIONS
Installation Instructions
