Corbin HD-XR12-GL Quick Start Manual

Part Number:
Description:
Gunfighter & Lady Saddle
Fitment:
2009-2010 Harley Davidson XR 1200
Revision:
2
Tools Required
1/2" Socket Wrench
1/2" Open Wrench
7'16" Open or Combination Wrench
5/32" Allen Wrench
NOTE: We highly recommend using a
removable strength thread lock product such as
Loctite® on the bolts when installing your
mounting bracket.
1. Start by removing the stock front and rear
seats from your motorcycle. Refer to your
owner's manual if necessary.

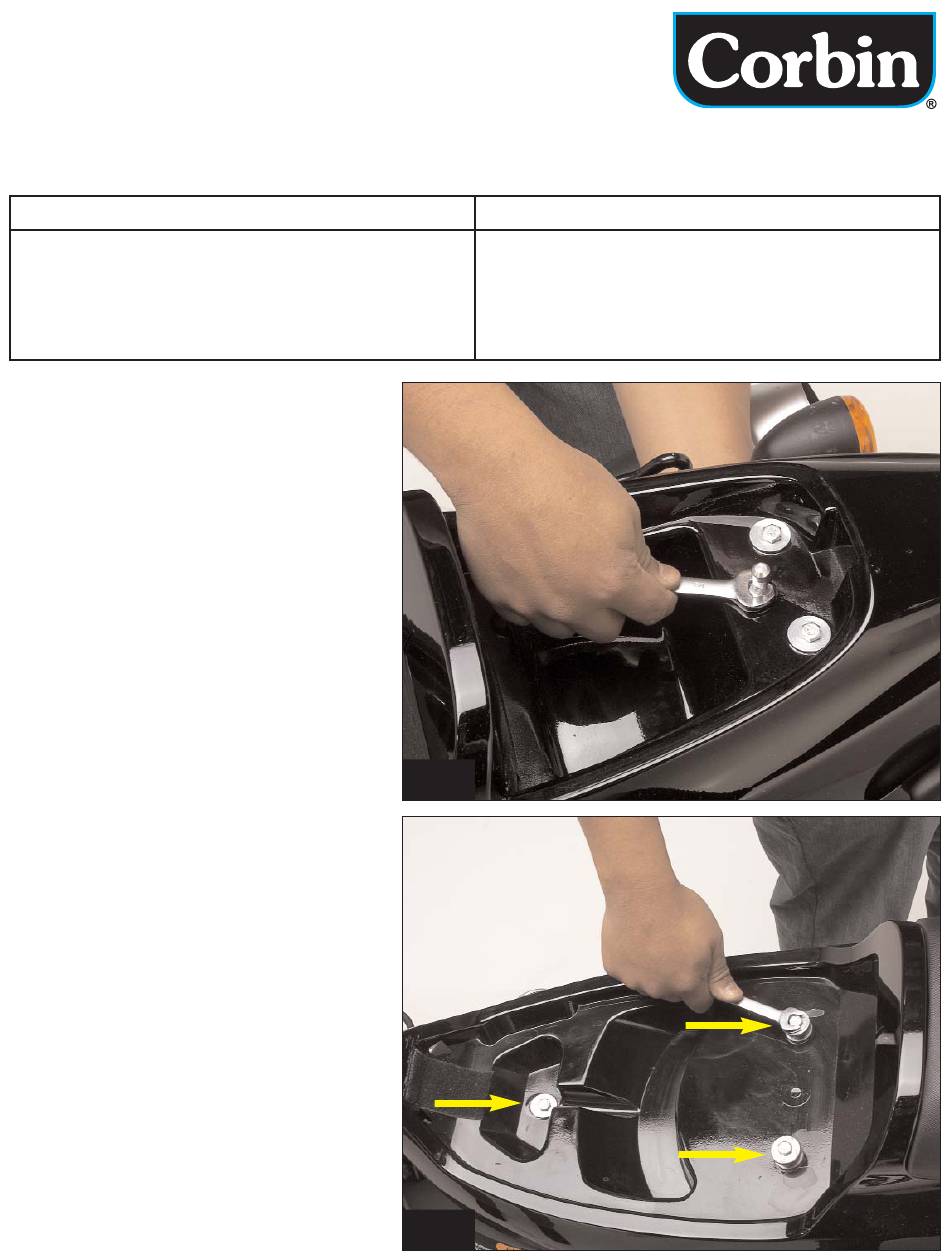

2. Remove the stock tail section by first
removing the pin, using a 1/2" open wrench on
the top and a 1/2" socket wrench on the bottom
(Figure 1).
3. Next, remove the five bolts using a 7/16"
open or combination wrench (Figures 2 & 3).
4. Remove the stock tail section.
5. Install the rear pin bracket onto the tail section
and secure with the supplied flat head Allen
screws, using a 5/32" Allen wrench (Figure 4).
Use Loctite®.
6. Install the front locking pin, flat washer and
lock washer using a 7/16" open wrench
(Figure 5). Use Loctite®.
7. To install your Gunfighter & Lady saddle,
simply place the rear of the saddle onto the latch
pin on the rear fender. Then lower the front of
the saddle onto the front latch pin and push
down on the saddle until you hear it click
(Figure 6).
HD-XR12-GL
2 1/4" x 20 (SP00653) Flat Head Allen Screws
1 #P11044 Rear Pin Bracket
1 #P10634 Front Locking Pin
1 (SP00102) Flat Washer
1 (SP00287) Lock Washer
FIG 1
FIG 2
Parts List
