Part Number:
Description:
Saddle Bags
Fitment:
2013-2014 Can-Am Spyder ST, STS, ST Limited
Revision:
1
Tools Required
8mm Socket wrench
10mm Socket wrench
12mm Socket wrench
13mm Socket wrench
13mm Open wrench
Parts List
1 #A01203 Left front mounting bracket
1 #A01204 Right front mounting bracket
1 #A01205 Left back mounting bracket
1 #A01206 Right back mounting bracket
1 #A01024 Right bag upper support bracket
1 #A01027 Left bag upper support bracket
16 #SP00699 m8 flat washers
8 #SP00265 3/8" flat washers
4 #SP00147 Zinc flat washers
8 #SP0076 m8 nylon nuts
2 #SP00126 m6 nylon nuts
12 #SP00157 3/8" lock washers
4 #SP00198 3/8" x 16 chrome acorn nuts
2 #SP02049 m6 x 50 hex head bolts
2 #SP00761 m8 x 60 hex head bolts
4 #SP1004 m8 x 40 hex head bolts
4 #SP00271 8/32" cap screws
1 Right signal cover
1 Left signal cover
1 Turn signal wires
6 Zipties
NOTE: We recommend the use of Loctite® or
similar thread lock product when assembling parts
on your motorcycle.

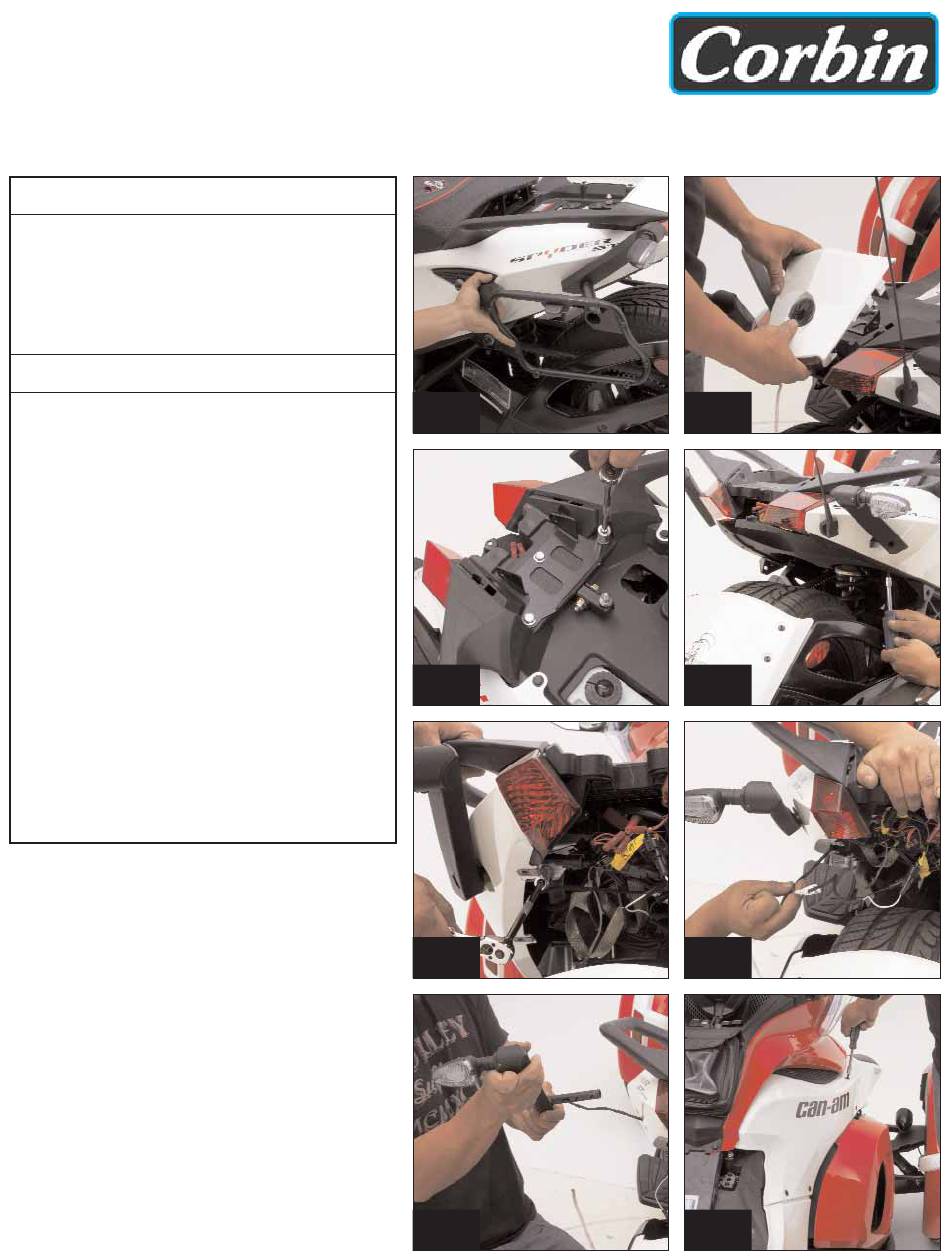

1. Remove stock carrier using the OEM triangular
head tool (Figure 1).
2. Remove stock seat or Corbin's front and rear
seats.
3. Pull off center light cap (Figure 2).
4. If you haven't done so already, remove the rear
hinge bracket, using a 13mm socket wrench
(Figure 3).
CA-BAG-ST
T27 Torx wrench
Flathead screwdriver
Phillips screwdriver
3mm Allen wrench
FIG 1
FIG 3
FIG 5
FIG 7
FIG 2
FIG 4
FIG 6
FIG 8
Advertisement
Related Manuals for Corbin CA-BAG-ST
Summary of Contents for Corbin CA-BAG-ST
- Page 1 FIG 6 1. Remove stock carrier using the OEM triangular head tool (Figure 1). 2. Remove stock seat or Corbin’s front and rear seats. 3. Pull off center light cap (Figure 2). 4. If you haven’t done so already, remove the rear...
- Page 2 5. Using a T27 torx wrench, remove the five screws holding the mud guard and use a 10mm socket to remove the two bottom screws (Figure 4). 6. Remove the two bolts on the turn signal holding mount, using a 13mm open wrench and 13mm socket wrench (Figure 5).
- Page 3 (Figure 25). Add wiring extensions. FIG 21 FIG 22 25. Install left turn signal on the the Corbin bracket (Figure 26). Run the turn signal wires through the side panel and into the housing. Secure housing, connect the wires and reinstall the cover (Figure 27).
- Page 4 Secure the top position with the provided stainless steel stud, using a 5/8” open/combination wrench (Figure 30). 29. Install right turn signal on the the Corbin bracket. Run the turn signal wires through the side panel and into the housing. Secure housing, connect the wires and reinstall the cover.
