Corbin BMW-F9XR-20 Manual

Part Number:
Description:
Dual Saddle
Fitment:
2020-2021 BMW F900XR
Revision:
1
Tools Required
Needlenose Pliers
Phillips Screwdriver
1. Begin by removing the stock seat (refer to
owner's manual).
2. Saddle mounts just like stock with brackets
preinstalled on the saddle.

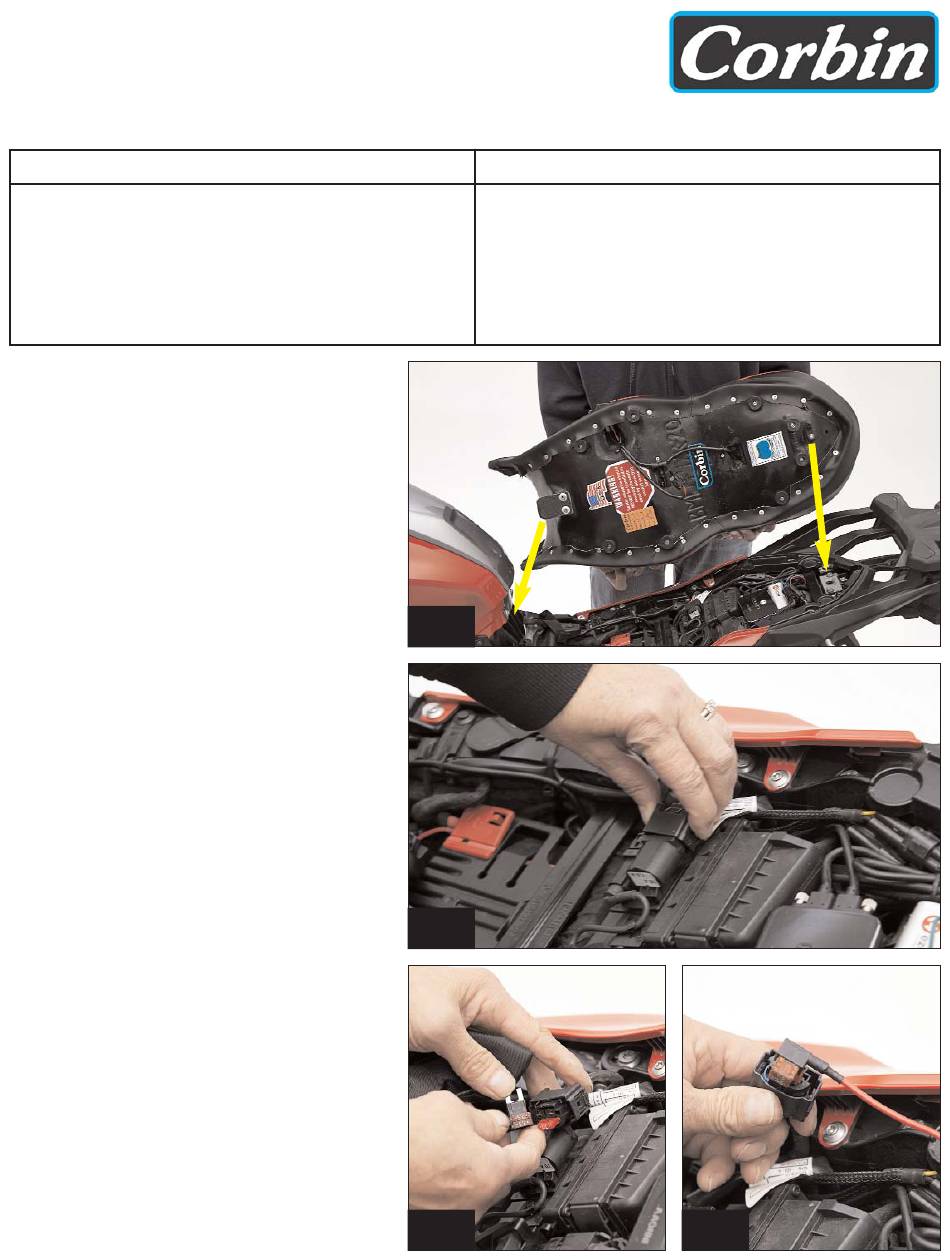

3. To install your Dual Saddle, slip the front
tongue of your saddle under the rear of the gas
tank, align the Corbin locking pin to the stock
locking mechanism and push down on the saddle
until you hear the lock click. (Figure 1)
HEATER INSTALLATION:
1. If you ordered the heated model, we also
included a wiring pigtail that hooks into your stock
fusebox, so start by unlatching the fusebox
(Figure 2).
2. Remove the 7.5 amp fuse and insert the fuse
into the adapter at the end of the wiring pigtail
(Figure 3).
3. Insert the adapter into the fusebox in the
space previously occupied by the Accessory fuse
(Figure 4).
4. With the pigtail in place, the stock fuse cover
will not fit, so slip the fuse adapter through the
small hole on the provided rain cover and loosely
cover the entire fuse plug (Figure 5).
5. Connect wiring adapters together (Figure 6).
BMW-F9XR-20(E)
1 #CB-PWR-HRN-36=12" Wiring Harness / pigtail
1 #FACC-05 Small Fuse Adapter
1 Small Fuse Box Rain Cover
1 6" Zip Tie
FIG 1
FIG 2
FIG 3
Parts List
FIG 4
