JOANNA GAINES MAGNOLIA HOME PHOENIX 7010180 Assembly Instructions

Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove
all components from pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and
count all parts as specified below.
PARTS LIST
No.
Description
A
Table Top
B
Table Leg Frame
C
Table Stretcher
Step 1: Place the Table Top (A) on a piece of cloth or carpet to prevent finish from scratching. Insert Wood Dowel (6) into
Table Leg Frame (B). Attach the Table Leg Frame (B) to Table Top (A) by using Flat Washer (4), Spring Washer (3), Long
Made in Viet Nam
ASSEMBLY INSTRUCTIONS
GROUP NO.: 7010180 MODERN BLACK

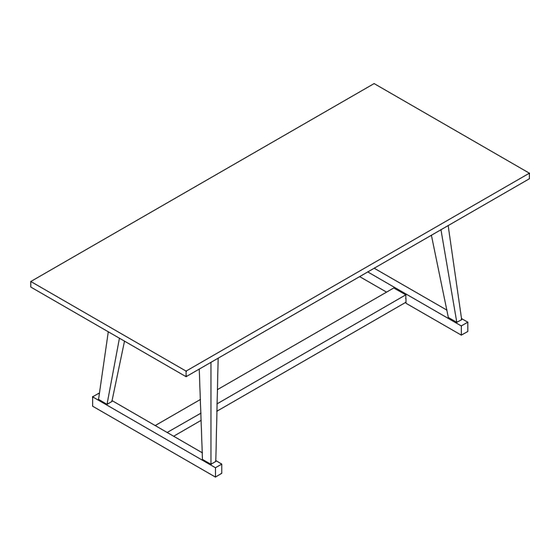

ITEM NO.: 7010181 TABLE, DINING - PHOENIX
Sketch
B
A
4
3
2
5
B
A
Qty
No.
Description
1
Short Bolt
1 pc
2 Long Bolt
Spring Washer
3
2 pcs
4
Flat Washer
5 Allen Key
1 pc
6 Wood Dowel
6
B
HARDWARE LIST
Sketch Size
ɸ 5/16'' x 38mm 2 pcs
ɸ 5/16'' x 50mm
ɸ 5/16''
ɸ 5/16'' x 19mm
4mm
10 x 30mm
Qty
8 pcs
10 pcs
10 pcs
1 pc
2 pcs
Page 1/2
