Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove
all components from pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and
count all parts as specified below.
PARTS LIST FOR 2 CHAIR
.
Description
No
A
Chair Back
B
Seat Cushion Frame
C
L/R Front Leg
D
Front Strecher
E
L/R Side Stretcher

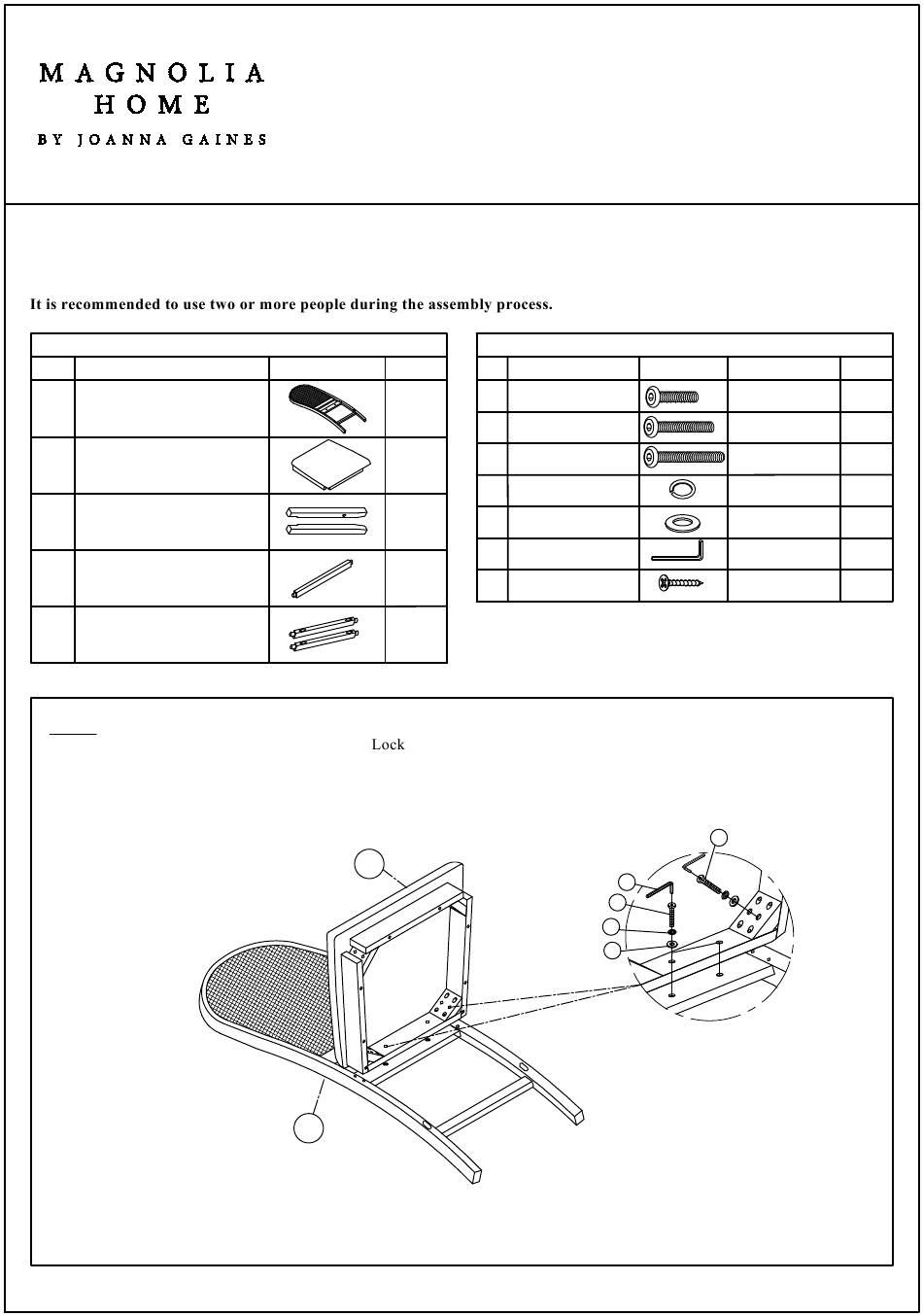

Step 1: Place the Chair Back (A) on a piece of cloth or carpet to prevent finish from scratching. Attach Seat Cushion Frame
(B) to Chair Back (A) by using Flat Washer (5),
of seat frame then secure with Allen Key (6). Do not fully tighten.
Made in Viet Nam

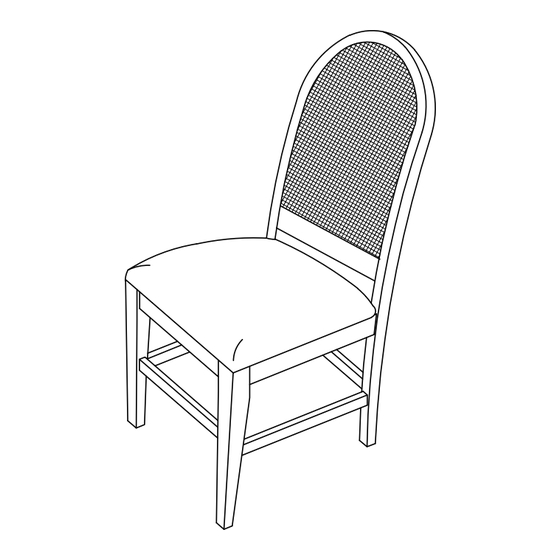

ASSEMBLY INSTRUCTIONS
GROUP NO.: 7010180 MODERN BLACK
ITEM NO.: 7010187 CHAIR,UPH SEAT, 2/CTN - PIERRE
Qty
Sketch
2 pcs
2 pcs
4 pcs
2 pcs
4 pcs
Washer (4), Short Bolt (1) on back rail and Long Bolt (3) at the corner
B
A
HARDWARE LIST FOR 2 CHAIR
No. Description
1
Short Bolt
Medium Bolt
2
3
Long Bolt
4
Lock Washer
5
Flat Washer
6
Allen Key
7
Screw
6
1
4
5
Sketch
Size
ɸ 5/16'' x 38mm
ɸ 5/16'' x 50mm
ɸ 5/16'' x 75mm
ɸ 5/16''
ɸ 5/16'' x 19mm
4mm
M4 x 38mm
3
Qty
4 pcs
8 pcs
8 pcs
20 pcs
20 pcs
1 pc
12 pcs
Page 1/2
Advertisement
Related Manuals for JOANNA GAINES MAGNOLIA HOME PIERRE 7010180
Summary of Contents for JOANNA GAINES MAGNOLIA HOME PIERRE 7010180
- Page 1 ASSEMBLY INSTRUCTIONS GROUP NO.: 7010180 MODERN BLACK ITEM NO.: 7010187 CHAIR,UPH SEAT, 2/CTN - PIERRE Read instructions carefully prior to assembly. Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove all components from pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish.
- Page 2 ASSEMBLY INSTRUCTIONS GROUP NO.: 7010180 MODERN BLACK ITEM NO.: 7010187 CHAIR,UPH SEAT, 2/CTN - PIERRE Step 2: Attach the Left and Right Front Leg (C) to Seat Cushion Frame (B) by using Flat Washer (5), Lock Washer (4), Medium Bolt (2) and tighten with Allen Key (6). Do not fully tighten. Attach The front strecher (D) and L/R Side Stretcher (E) to L/R Front Leg (C) with the Screw (7) and secure with Phillips-head screw drivers (Not provided).
