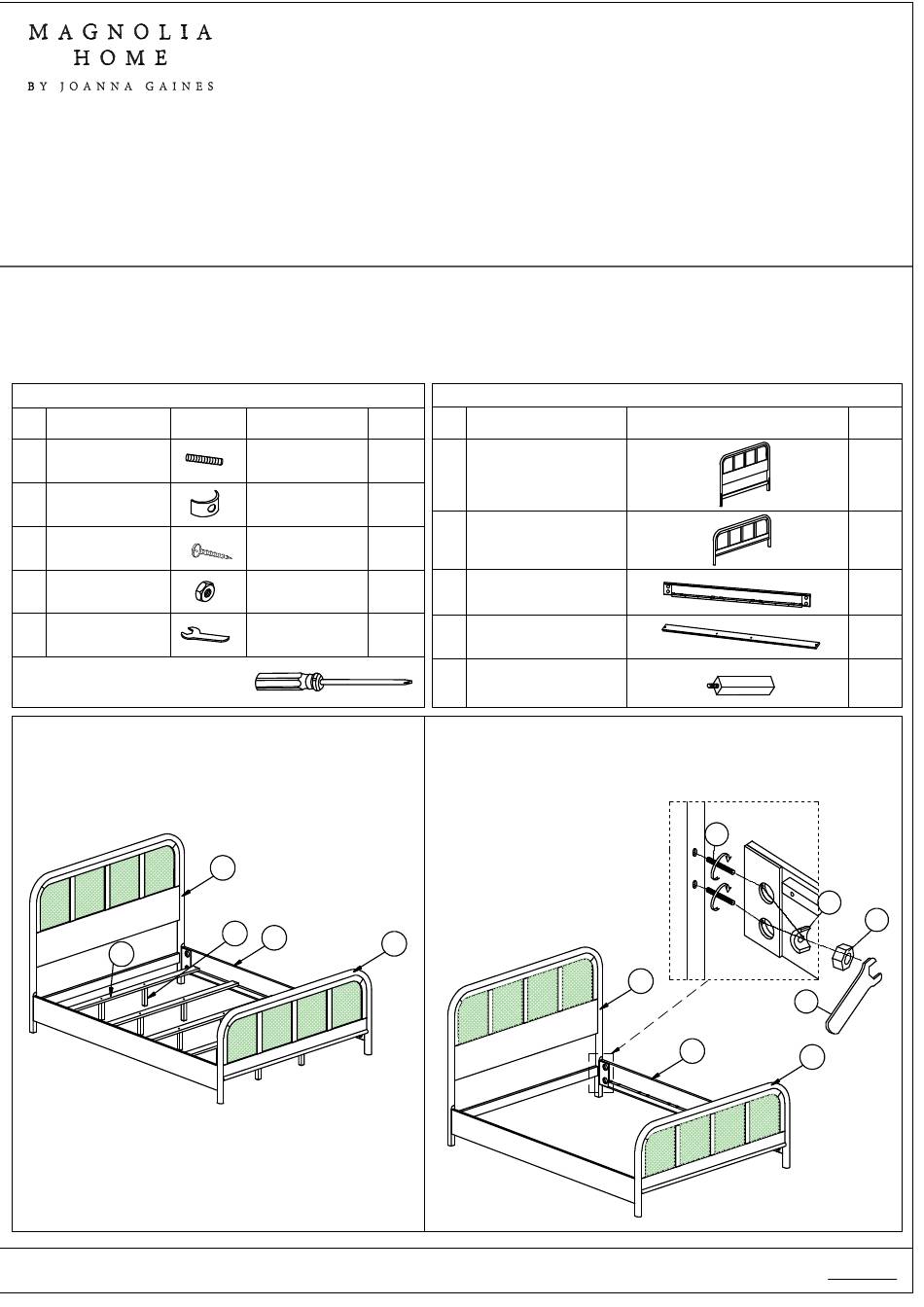

JOANNA GAINES Magnolia Home 7070200 Assembly Instructions

Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during
shipment. Remove all components from pack and place top down on soft surface such as carpet or cloth to prevent
scratching the finish. Identify and count all parts as specified below.
It is recommended to use two or more persons during the assembly process.

HARDWARE LIST:

No. Description Sketch
Thread Bolt
A
Curve Washer
B
C Screw
Hex Nut
D
E Wrench
Tool Required Phillips Head
Screw Driver (Not provided)
4
Made in Viet Nam
ASSEMBLY INSTRUCTIONS
GROUP NO : 7070200 MONTE BED
ITEM NO: 7070201 HEADBOARD, 5/0 PANEL BED
7070203 FOOTBOARD, 5/0 PANEL BED W 5 SLATS
7070202 RAILS 5/0-6/6 PANEL BED
7070211 HEADBOARD, 6/6 PANEL BED
7070213 FOOTBOARD, 6/6 PANEL BED W 5 SLATS
7070221 HEADBOARD, 6/0 PANEL BED
7070223 FOOTBOARD,6/0 PANEL BED W 5 SLATS
7070222 RAILS 6/0 PANEL BED
Size Qty
Ø 5/16" x 90mm 8 pcs
8 x 25mm
8 pcs
4 x 30mm
10 pcs
8 pcs
Ø 5/16" x 12mm
1 pc
12mm
1
5
3
2

PARTS LIST:

Description
No.
1 Headboard
2
Footboard
Side Rail
3
4 Slat
Slat Support Leg
5
Step 1: Turn Thread Bolt (A) to the Headboard (1) and Footboard
(2). Assemble Side Rail (3) to Headboard (1) and Footboard (2)
by using Curve Washer (B), Hex Nut (D) and Wrench (E).
Sketch
A
1
E
3
2
Qty
1 pc
1 pc
2 pcs
5 pcs
10 pcs
B
D
Page: 1/2
