JOANNA GAINES MAGNOLIA HONE 7010140 Assembly Instructions

Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during shipment. Remove
all components from pack and place top down on soft surface such as carpet or cloth to prevent scratching the finish. Identify and
count all parts as specified below.
PARTS LIST
No.
Description
A
Table Top
B Table Leg
C
Table Stretcher
D Wood Plug
E
Mounting Plate
Step 1: Attach Mounting Plate (E) to Table Leg (B) by using
Flat Washer (4), Spring Washer (3), Short Bolt (1) and tighten
with Allen Key (5).
E
B
Made in Viet Nam
ASSEMBLY INSTRUCTIONS
GROUP NO.: 7010140 CLASSIC TRESTLE

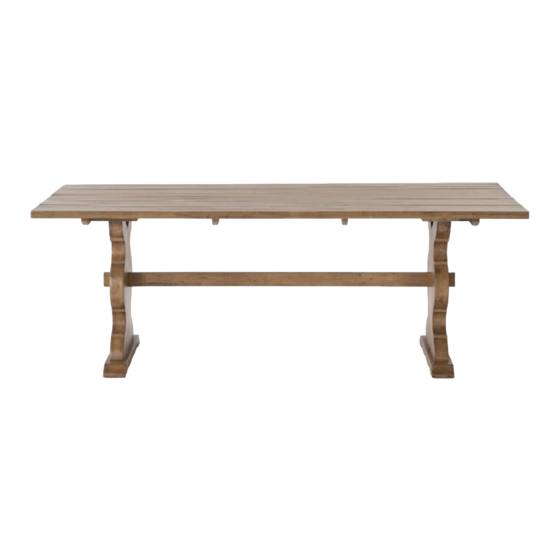

ITEM NO.: 7010141 COLLINS TRESTLE TABLE
Sketch
5
1
3
4
E
B
Qty
No.
Description
1
Short Bolt
1 pc
2 Long Bolt
2 pcs
Spring Washer
3
4
Flat Washer
1 pc
5 Allen Key
2 pcs
2 pcs
Step 2: Attach Table Leg (B) and Mounting Plate (E) to Table
Top (A) by using Flat Washer (4), Spring Washer (3), Short
Bolt
Do not fully tighten the bolts.
B
HARDWARE LIST
Sketch Size
ɸ 5/16'' x 40mm 20 pcs
ɸ 5/16'' x 50mm
ɸ 5/16''
ɸ 5/16'' x 19mm
4mm
B
E
5
1
3
E
4
E
A
Qty
4 pcs
24 pcs
24 pcs
1 pc
A
Page 1/2
