JOANNA GAINES Magnolia Home 40000007 Assembly Instruction

M A G N O L I A
H O M E
BY J O A N N A G A I N E S
Read instruction carefully prior to assembly
Thank you for purchasing this product . Be sure to check all packing material carefully for small parts that
may have come loose inside the carton during shipment .
Remove all components from pack and place on soft surface to prevent
scratch during assembly. Identify and count all parts as specified below
It is recommended to use two or more persons during the assembly process.
PARTS LIST
No. Description
A
B
C
D
E
F
ASSEMBLY INSTRUCTION
Group No: 40000007 - TRADTIONAL BR

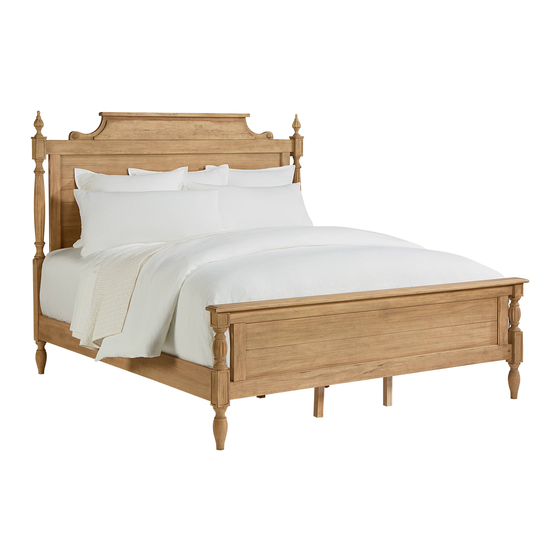

ITEM NO: 4070911Y - HEADBOARD, 6/6 BELLMEAD - WHEAT
4070913Y - FOOTBOARD, 6/6 W/SLATS BELLMEAD - WHEAT
4070904Y - RAILS, 5/0-6/6 W/SLATS BELLMEAD - WHEAT
Sketch Q'ty
1PC
1PC
2PCS
5PCS
10PCS
2PCS
HARDWARE LIST
No. Description
1
Flat Washer
2
Thread Bolt
3 Curve Washer
4
Hex Nut
5
Open Wrench
6
Screw
7
Wood Dowel
Sketch Size
5/16''*16mm
5/16''*75mm
W065
5/16''*12*6mm
12mm
*2mm
#8*25mm
10*30mm
Q'ty
8PCS
8PCS
8PCS
8PCS
1PC
10PCS
4PCS
