Read instructions carefully prior to assembly.
Thank you for purchasing this quality product. Check carefully for small parts which may come loose during
shipment. Remove all components from pack and place top down on soft surface such as carpet or cloth to prevent
scratching the finish. Identify and count all parts as specified below.
It is recommended to use two or more persons during the assembly process.
PARTS LIST
Item
Description
A
Desk Top
B
Stretcher Frame
C
Table Leg
Step 1: Place Desk Top (A) upside down on a soft surface such as carpet or cloth to prevent finish from
scratching. Attach Stretcher Frame (B) to Desk Top (A) by using Flat Washer (3), Lock Washer (2), Allen Bolt
(1) and tighten with Allen Key ( 4).
1
2
3
Made in Vietnam
ASSEMBLY INSTRUCTIONS

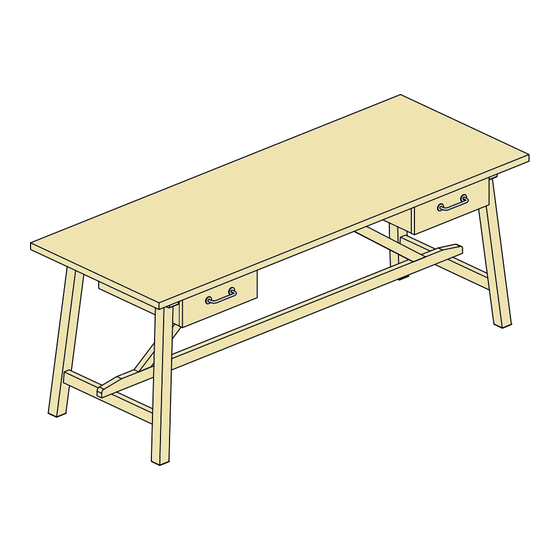

GROUP NO : 7020080 HATCHER DESK
ITEM NO : 7020081 DESK, CROSS STRETCHER
Sketch
Qty
1 pc
1 pc
2 pcs
4
HARDWARE LIST
No.
Description
Sketch
1
Allen Bolt
2
Lock Washer
Flat Washer
3
Allen Key
4
Size
5
Ø
" x 60mm
16
5
Ø
" x Ø11mm
16
5
Ø
" x Ø19mm
16
4mm
B
A
Qty
9 pcs
9 pcs
9 pcs
1 pc
Page: 1/2
