InSync™ CL/SL Installation Instructions
Installation Instructions
All parts needed to install the InSync™ CL/SL lock are included with each unit. Check to make sure all
parts are accounted for before beginning installation. Do not substitute any of the parts. The use of
substitute parts may result in poor performance of the lock.
1. Prepare the door using the InSync L installation template.
2. Prepare the door frame using the same template and install the strike plate using the screws provided.
3. Install the latch bolt in the door edge and fasten it to the door with the screws provided (see Fig. 1).
4. Position the outside trim, CAREFULLY feeding the wires through the middle 1/2" hole (see Fig. 1).

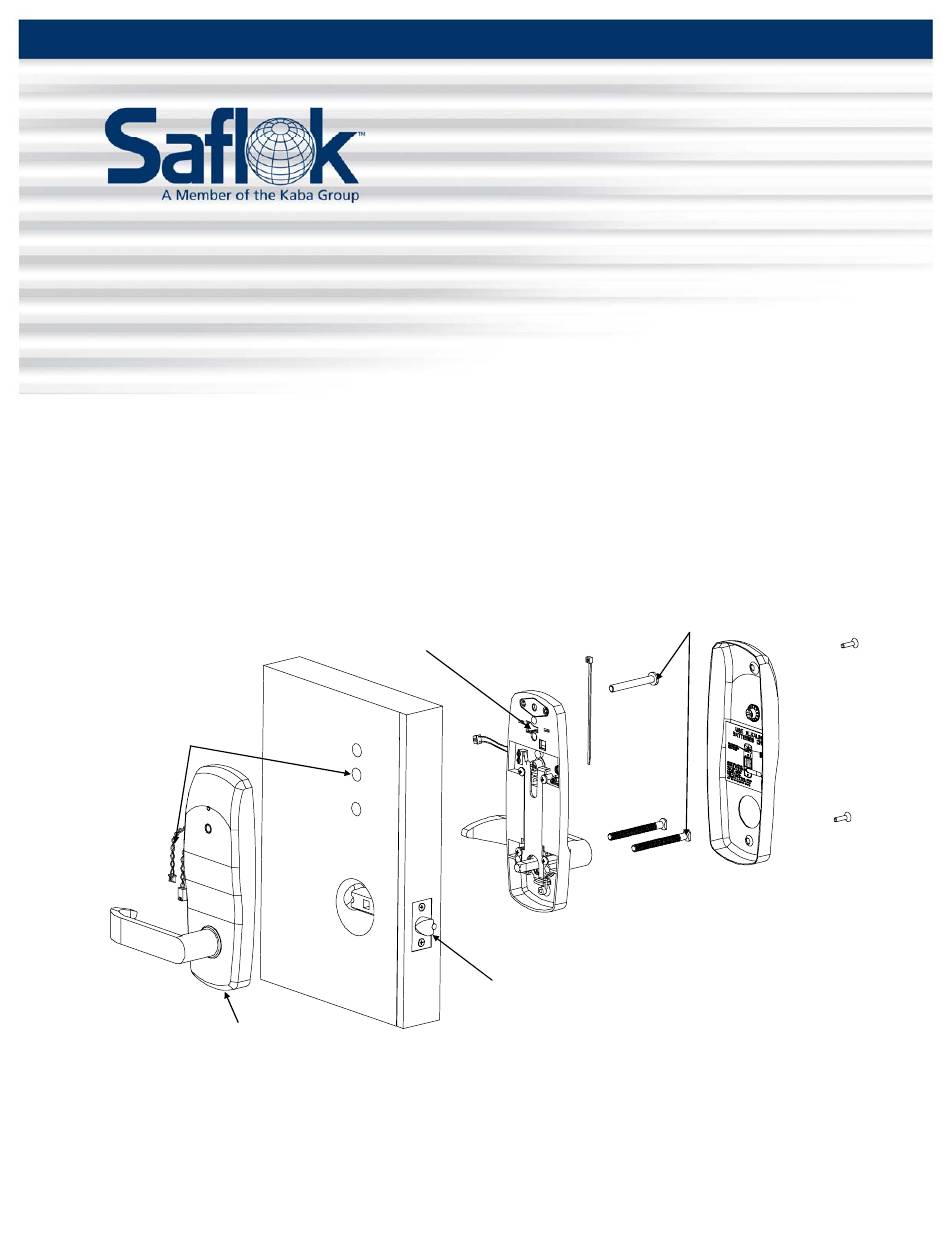

Fig. 1
Feed the wires through the
middle ½" hole
Outside Trim
All information contained herein, including but not limited to product pricing and other intellectual property, is confidential and
intended for the sole use of the addressee(s) so named. Any misuse of this confidential information contained herein may result in
legal action by Computerized Security Systems dba SAFLOK and its parent company.
© SAFLOK™, all rights reserved.
InSync
™
Common and Suite Configurations
Feed the wires
through this hole
CL/SL
Attach the trim with the
1/4-20 screws
Latch Bolt
Pg. 1 of 4
WL 4/28/2009
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Kaba Group Saflok InSync CL
Summary of Contents for Kaba Group Saflok InSync CL
- Page 1 InSync™ CL/SL Installation Instructions Pg. 1 of 4 InSync CL/SL ™ Installation Instructions Common and Suite Configurations All parts needed to install the InSync™ CL/SL lock are included with each unit. Check to make sure all parts are accounted for before beginning installation. Do not substitute any of the parts. The use of substitute parts may result in poor performance of the lock.
- Page 2 InSync™ CL/SL Installation Instructions Pg. 2 of 4 5. While placing the inner trim in position, feed the cables through the appropriate hole in the inner chassis and attach the trim with two 1/4-20 x 2-5/8 flat head Phillips machine screws and one 1/4-20 x 2 pan head Phillips machine screw.
- Page 3 InSync™ CL/SL Installation Instructions Pg. 3 of 4 Testing Lock Functionality Unlike the unit configuration, locks with the suite and common area locks will relock automatically after about five seconds. Lock Communication Electronic Function Description Green light flashes once The door is unlocked. when a key is inserted ©...
- Page 4 InSync™ CL/SL Installation Instructions Pg. 4 of 4 SAFLOK™ Door Unit Inspection Criteria Appearance • Finish is free of blemishes or scratches that would distract from lock appearance • Lock body and under plate (if used) are mounted straight on the door •...
