InSync™ CM/SM Installation Instructions
Installation Instructions
All parts needed to install the InSync
sure all parts are accounted for before beginning installation. Do not substitute any of the parts. The use
of substitute parts may result in poor performance of the lock.
1. Prepare the door using the InSync M installation template.
2. Prepare the door frame using the same template and install the strike plate using the appropriate
2. Prepare the door frame using the same template and install the strike plate using the appropriate
metal or wood screws (12 x 1-1/2) provided.
metal or wood screws (12 x 1-1/2) provided.
3. Install the mortise lock in the door mortise pocket while feeding the motor wire through the notch on
3. Install the mortise lock in the door mortise pocket while feeding the motor wire through the notch on
the inside of the door (see Fig. 1). Fasten the mortise lock with the appropriate machine screws
the inside of the door (see Fig. 1). Fasten the mortise lock with the appropriate machine screws
(12-24 x 3/8 flat head) or wood screws (12 x 1-1/4 flat head). Attach the lock face plate (scalp plate)
(12-24 x 3/8 flat head) or wood screws (12 x 1-1/4 flat head). Attach the lock face plate (scalp plate)
using two 8-32 x 1/4 flat head machine screws.
using two 8-32 x 1/4 flat head machine screws.
4. Position the outside trim in position, CAREFULLY feeding the cables through the middle 1/2"
4. Position the outside trim in position, CAREFULLY feeding the cables through the middle 1/2"
diameter hole (see Fig. 2).
diameter hole (see Fig. 2).
Surface
All information contained herein, including but not limited to product pricing and other intellectual property, is confidential and
All information contained herein, including but not limited to product pricing and other intellectual property, is confidential and
intended for the sole use of the addressee(s) so named. Any misuse of this confidential information contained herein may result in
intended for the sole use of the addressee(s) so named. Any misuse of this confidential information contained herein may result in
legal action by Computerized Security Systems dba SAFLOK and its parent company.
legal action by Computerized Security Systems dba SAFLOK and its parent company.
© SAFLOK™, all rights reserved.
InSync
™
Common and Suite Configurations
™
CM/SM lock are included with each unit. Please check to make

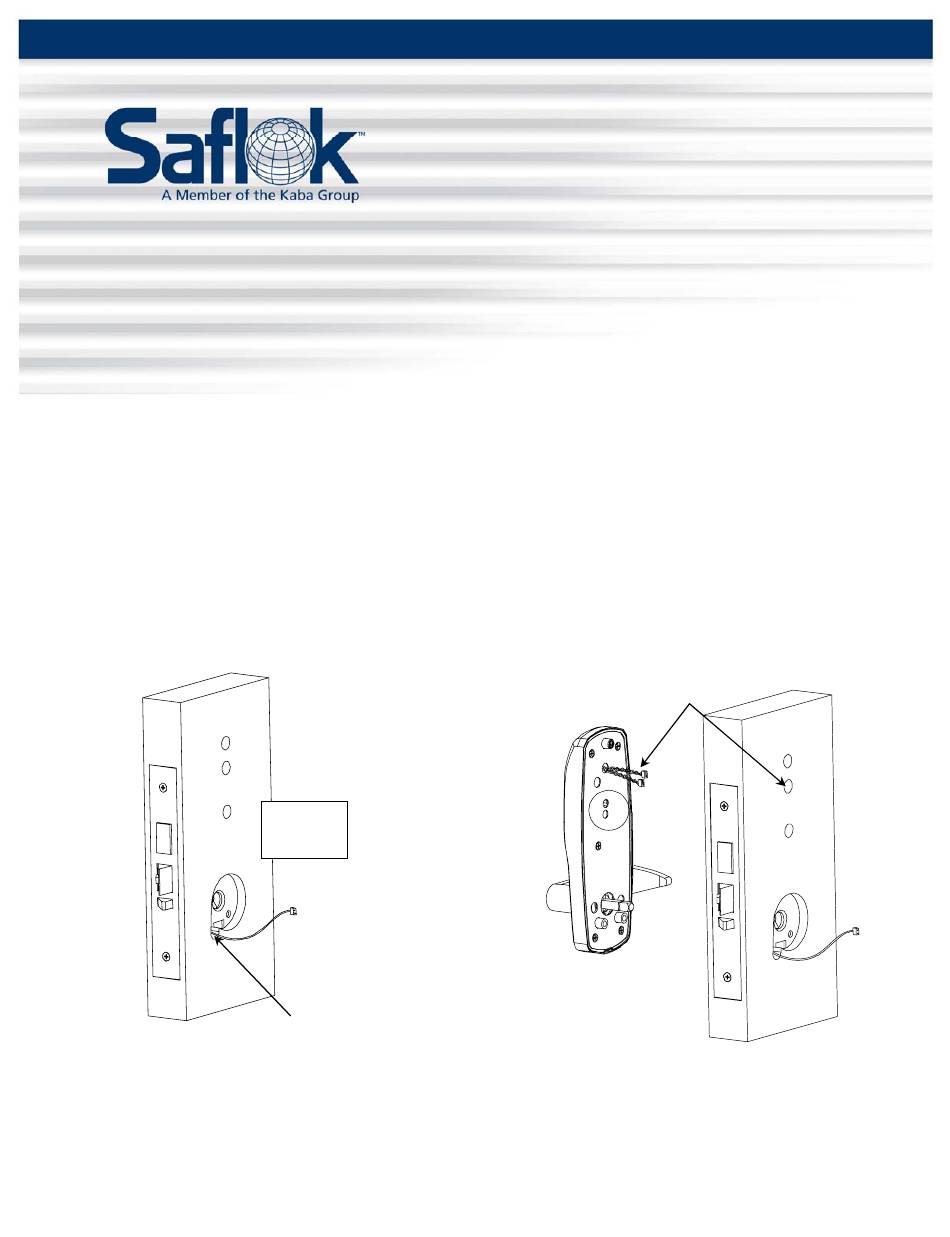

Fig. 1
Inside
Door
Feed the motor wire through
the notch on the inside of
the door.
CM/SM
Feed the cables
through the center
1/2" hole.
Outside
Trim
Fig. 2
Pg. 1 of 4
WL 4/28/2009
