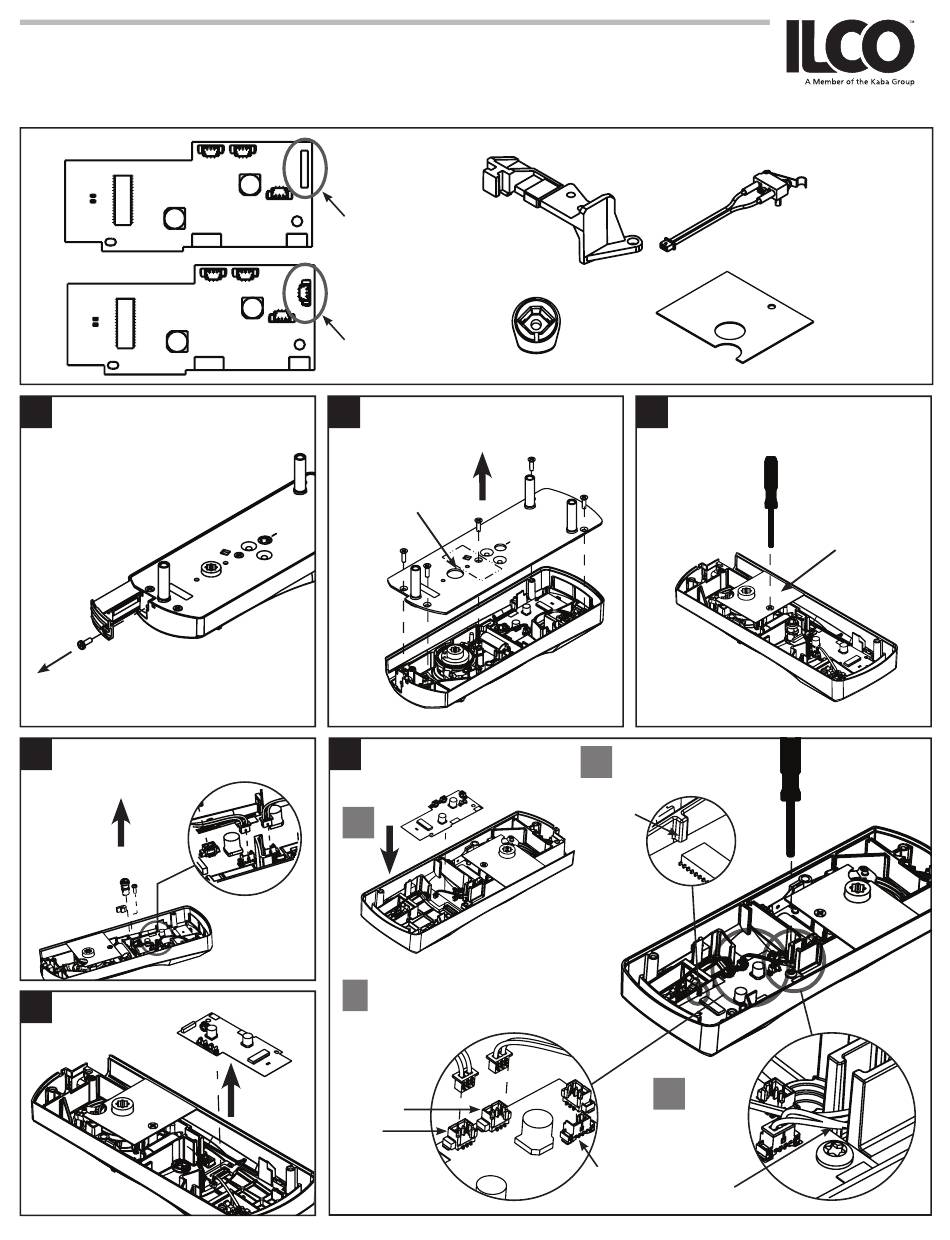

770 Rework Installation Sheet
IMPORTANT: Wear Safety glasses before starting the replacement of parts.
Remove screw and take out battery pack
1
Remove foam, cam & screws and discon-
4
nect cables
Remove PCB
5
All manuals and user guides at all-guides.com
Current PCB
New PCB
Remove 5 screws and take off the back
2
plate
Screw below center label
Assemble New PCB
6
A
B
Before placing PCB connect
cables orientation
as shown
Override
Switch
Reader
770 LOCK PCB + PRIVACY MECH. PARTS
Switch
Holder
New
Cam
Assemble protective bracket and hold with
3
one of the 5 screws from step 2
C
PCB must be under
plastic tab
D
Pass cables in
housing gap push
Motor
cables away from
the screw head
New privacy
Switch
Protective
Bracket
Protective Bracket
Use screws from step 4
PK3611_07_12
