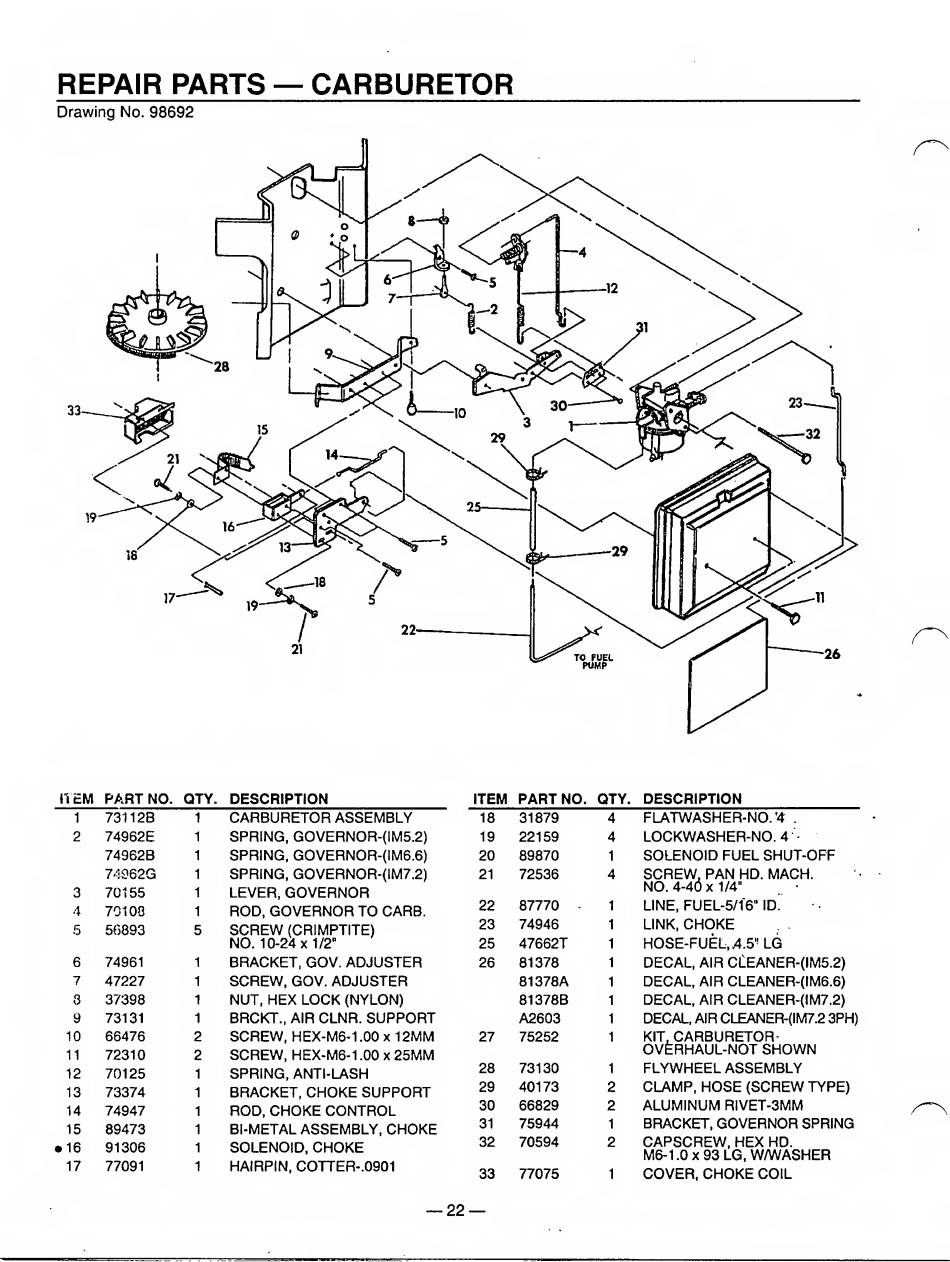

REPAIR PARTS — CARBURETOR
Drawing No. 98692
ITEM PART NO. QTY. DESCRIPTION
1 73112B 1
CARBURETOR ASSEMBLY
2 74962E 1 SPRING, GOVERNOR-(IM5.2)
74962B 1 SPRING, GOVERNOR-(IM6.6)
74962G 1 SPRING, GOVERNOR-(IM7.2)
3 70155 1 LEVER, GOVERNOR
4 70103 1 ROD, GOVERNOR TO CARB.
5 56893 5 SCREW (CRIMPTITE)
NO. 10-24x1/2°
6 74961 1 BRACKET, GOV. ADJUSTER
7 47227
1 SCREW, GOV. ADJUSTER
3 37398 1 NUT, HEX LOCK (NYLON)
9 73131
1
BRCKT., AIR CLNR. SUPPORT
10 66476 2 SCREW, HEX-M6-1.00 x 12MM
11 72310 2
SCREW, HEX-M6-1.00 x 25MM
12 70125 1 SPRING, ANTI-LASH
13 73374 1 BRACKET, CHOKE SUPPORT
14 74947 1 ROD, CHOKE CONTROL
15 89473 1 BI-METAL ASSEMBLY, CHOKE
• 16 91306 1 SOLENOID, CHOKE
17
77091 1 HAIRPIN, COTTER-.0901
ITEM PART NO. QTY. DESCRIPTION
18 31879 4
FLATWASHER-NO/4 .
19 22159 4 LOCKWASHER-NO. 4 -
20 89870 1 SOLENOID FUEL SHUT-OFF
21 72536 4 SCREW. PAN HD. MACH.
NO. 4-46 x 1/4°
22 87770 - 1 LINE, FUEL-5/1'6" ID.
23 74946 1 LINK, CHOKE
25 47662T 1
HOSE-FUEL, 4.5'! LG
26 81378 1 DECAL, AIR CLEANER-(IM5.2)
81378A 1 DECAL, AIR CLEANER-(IM6.6)
81378B 1 DECAL, AIR CLEANER-(IM7.2)
A2603 1 DECAL, AIR CLEANER-(IM7.2 3PH)
27 75252 1 KIT, CARBURETOR-
OVIzRHAUL-NOT SHOWN
28
73130 1
FLYWHEEL ASSEMBLY
29 40173 2 CLAMP, HOSE (SCREW TYPE)
30 66829 2 ALUMINUM RIVET-3MM
31 75944 1 BRACKET, GOVERNOR SPRING
32 70594
2 CAPSCREW, HEX HD.
M6-1.0 x 93 LG, W/WASHER
33 77075 1 COVER, CHOKE COIL
