Generac Power Systems 00843-0 Owner's Manual page 17

Drawing No. 92935

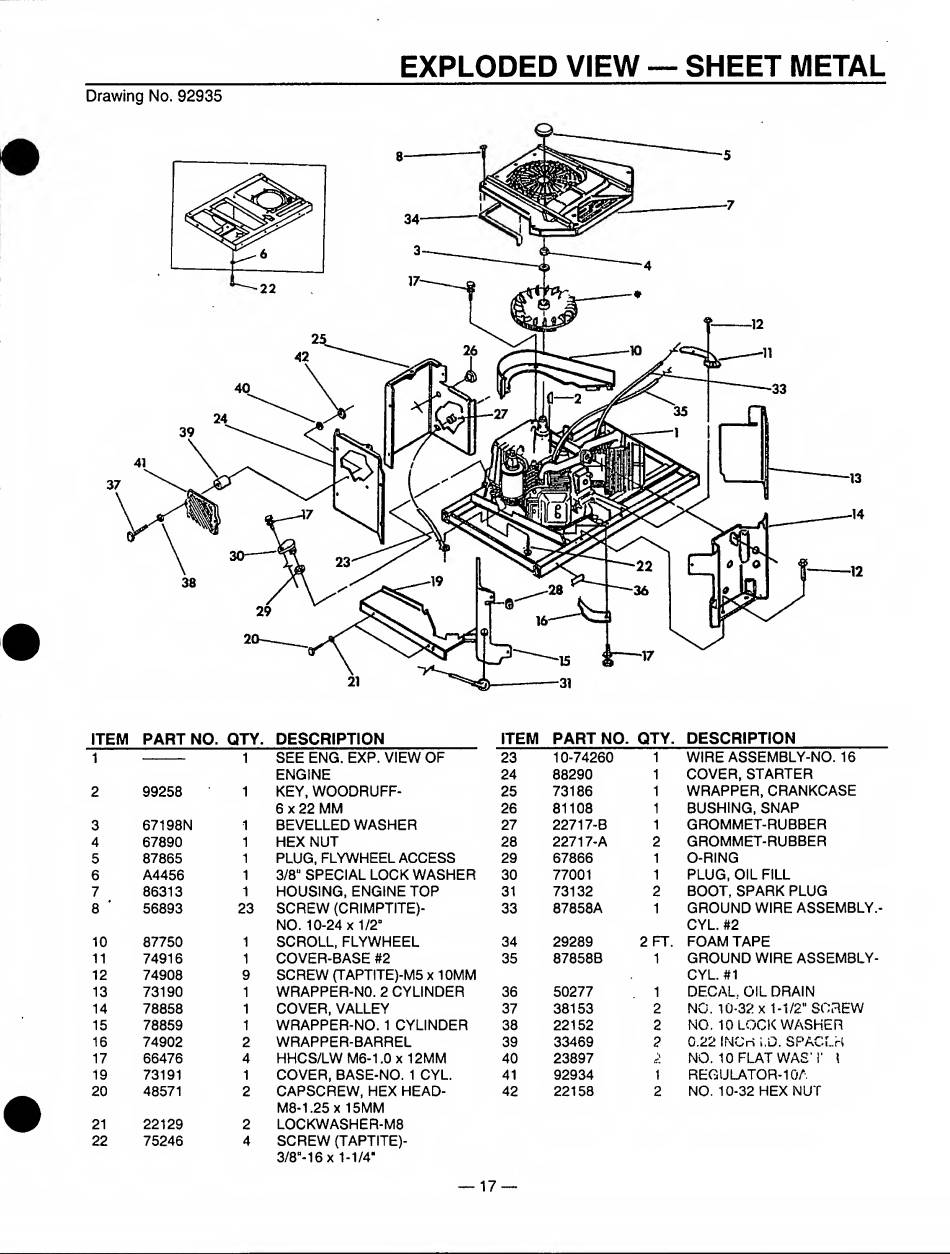

EXPLODED VIEW — SHEET METAL
ITEM PART NO. QTY
1 1
2 99258
1
3 67198N 1
4 67890 1
5
87865 1
6 A4456 1
7 86313 1
8 ' 56893 23
10 87750
1
11 74916 1
12 74908 9
13
73190 1
14 78858 1
15 78859 1
16 74902 2
17 66476 4
19 73191 1
20 48571 2
21 22129 2
22 75246 4
DESCRIPTION_
SEE ENG. EXP. VIEW OF
ENGINE
KEY, WOODRUFF-
6 x 22 MM
BEVELLED WASHER
HEX NUT
PLUG, FLYWHEEL ACCESS
3/8u SPECIAL LOCK WASHER
HOUSING, ENGINE TOP
SCREW (CRIMPTITE)-
NO. 10-24 x 1/2°
SCROLL, FLYWHEEL
COVER-BASE #2
SCREW (TAPTITE)-M5 x 10MM
WRAPPER-NO. 2 CYLINDER
COVER, VALLEY
WRAPPER-NO. 1 CYLINDER
WRAPPER-BARREL
HHCS/LW M6-1.0 x 12MM
COVER, BASE-NO. 1 CYL.
CAPSCREW, HEX HEAD-
M8-1.25 x 15MM
LOCKWASHER-M8
SCREW (TAPTITE)-
3/8"-16 x 1-1/4"
ITEM PART NO. QTY.
23
10-74260 1
24 88290 1
25 73186 1
26 81108 1
27 22717-B
1
28
22717-A 2
29 67866
1
30 77001
1
31 73132 2
33 87858A 1
34 29289 2 FT.
35 87858B 1
36 50277 1
37 38153 2
38 22152 2
39 33469 2
40 23897 2
41 92934 1
42 22158 2
DESCRIPTION_
WIRE ASSEMBLY-NO. 16
COVER, STARTER
WRAPPER, CRANKCASE
BUSHING, SNAP
GROMMET-RUBBER
GROMMET-RUBBER
O-RING
PLUG, OIL FILL
BOOT, SPARK PLUG
GROUND WIRE ASSEMBLY.-
CYL. #2
FOAM TAPE
GROUND WIRE ASSEMBLY-
CYL. #1
DECAL. OIL DRAIN
NO. 10-32 x 1-1/2" SCREW
NO. 10 LOCK WASHER
0.22 INCH i.D. SPACER
NO. 10 FLAT WAS'I'
\
REGIJLATOR-10A
NO. 10-32 HEX NUT
—
17
—
