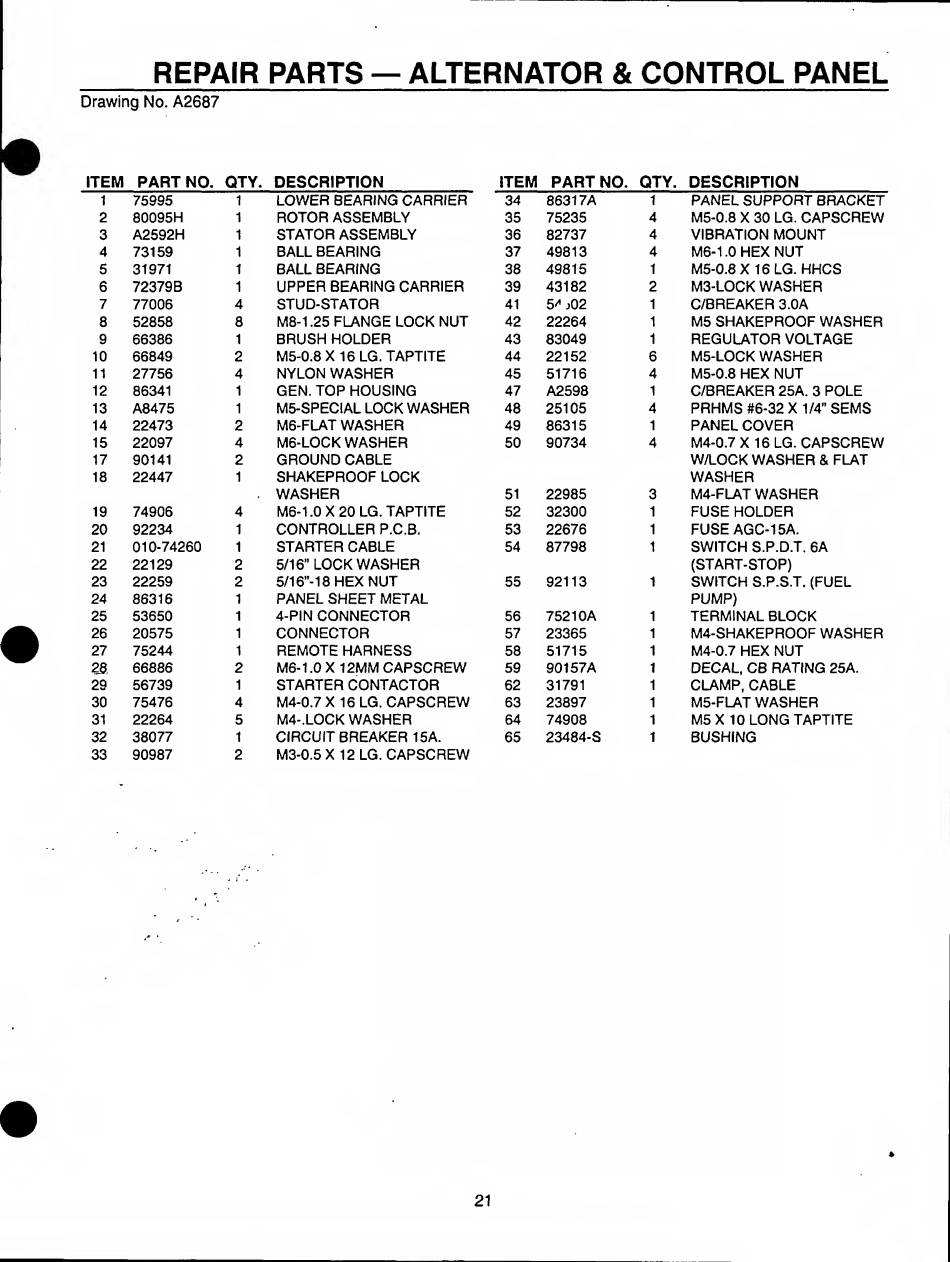

REPAIR PARTS — ALTERNATOR & CONTROL PANEL
Drawing No. A2687
ITEM PART NO. QTY. DESCRIPTION
ITEM PART NO. QTY. DESCRIPTION
1
75995
1
LOWER BEARING CARRIER
34
86317A
1
PANEL SUPPORT BRACKET
2
80095H
1
ROTOR ASSEMBLY
35
75235
4
M5-0.8 X 30 LG. CAPSCREW
3
A2592H
1
STATOR ASSEMBLY
36
82737
4
VIBRATION MOUNT
4
73159
1
BALL BEARING
37
49813
4
M6-1.0 HEX NUT
5
31971
1
BALL BEARING
38
49815
1
M5-0.8 X 16 LG. HHCS
6
72379B
1
UPPER BEARING CARRIER
39
43182
2
M3-LOCK WASHER
7
77006
4
STUD-STATOR
41
5^ j02
1
C/BREAKER 3.0A
8
52858
8
M8-1.25 FLANGE LOCK NUT
42
22264
1
M5 SHAKEPROOF WASHER
9
66386
1
BRUSH HOLDER
43
83049
1
REGULATOR VOLTAGE
10
66849
2
M5-0.8 X 16 LG. TAPTITE
44
22152
6
M5-LOCK WASHER
11
27756
4
NYLON WASHER
45
51716
4
M5-0.8 HEX NUT
12
86341
1
GEN. TOP HOUSING
47
A2598
1
C/BREAKER 25A. 3 POLE
13
A8475
1
M5-SPECIAL LOCK WASHER
48
25105
4
PRHMS #6-32 X 1/4" SEMS
14
22473
2
M6-FLAT WASHER
49
86315
1
PANEL COVER
15
22097
4
M6-LOCK WASHER
50
90734
4
M4-0.7 X 16 LG. CAPSCREW
17
90141
2
GROUND CABLE
W/LOCK WASHER & FLAT
18
22447
1
SHAKEPROOF LOCK
WASHER
WASHER
51
22985
3
M4-FLAT WASHER
19
74906
4
M6-1.0X 20 LG. TAPTITE
52
32300
1
FUSE HOLDER
20
92234
1
CONTROLLER P.C.B.
53
22676
1
FUSE AGC-15A,
21
010-74260
1
STARTER CABLE
54
87798
1
SWITCH S.P.D.T. 6A
22
22129
2
5/16" LOCK WASHER
(START-STOP)
23
22259
2
5/16"-18 HEX NUT
55
92113
1
SWITCH S.P.S.T. (FUEL
24
86316
1
PANEL SHEET METAL
PUMP)
25
53650
1
4-PIN CONNECTOR
56
75210A
1
TERMINAL BLOCK
26
20575
1
CONNECTOR
57
23365
1
M4-SHAKEPROOF WASHER
27
75244
1
REMOTE HARNESS
58
51715
1
M4-0.7 HEX NUT
23
66886
2
M6-1.0 X 12MM CAPSCREW
59
90157A
1
DECAL, CB RATING 25A.
29
56739
1
STARTER CONTACTOR
62
31791
1
CLAMP, CABLE
30
75476
4
M4-0.7 X 16 LG. CAPSCREW
63
23897
1
M5-FLAT WASHER
31
22264
5
M4-.LOCK WASHER
64
74908
1
M5X 10 LONG TAPTITE
32
38077
1
CIRCUIT BREAKER 15A.
65
23484-S
1
BUSHING
33
90987
2
M3-0.5X 12 LG. CAPSCREW
