Armstrong Brain DRV50 Quick Start Manual

Connect to the DRV
Download and install the USB-RS485 Driver and The Brain®
1
DRV40/50/80 Programming Software from the Armstrong website:
https://armstronginternational.com/wp-content/uploads/SW_
DRVProgrammingSoftwareDRV405080_EN_20220512.zip.
Plug the PC USB Cable into the USB port of a laptop or PC. Plug
2
the other end of the cable into the RS-485 serial port on the DRV80
Electronics Module
Electronics Module
Double click on the DRV Programming Software icon on the desktop, or
3
search for "Brain DRV Programming Software.exe" and run the file.
Follow the steps located in the full product manual at
4
armstronginternational.com/wp-content/uploads/IOM_DRV80_
TheBrain_501_EN_20180301.pdf
the IOM, scan the QR code on the front cover of this guide.
Warranty and Certifications
The Brain® Model DRV50 and The Brain® Model DRV80 shall have a five (5) year
parts warranty on all components other than preventative maintenance service
items listed in the IOM, which includes batteries and all 'wetted' O-rings and seals.
Armstrong International
North America • Latin America • India • Europe / Middle East / Africa • China • Pacific Rim
armstronginternational.com
https://
to adjust settings. For quick access to

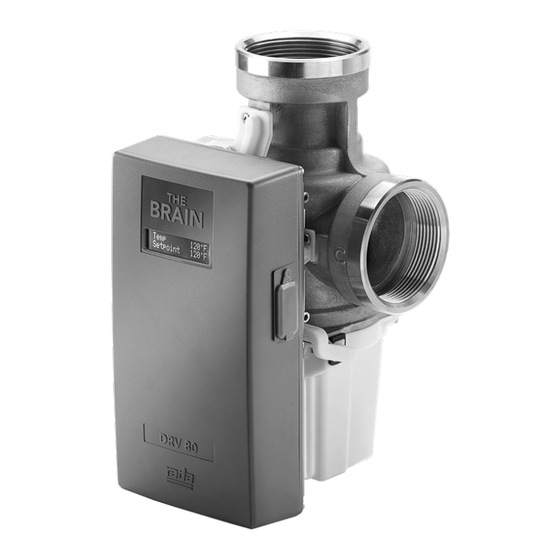

The Brain® Model DRV50 and DRV80 Digital Recirculation Valve
Quick Start Guide
Read this guide before starting up the DRV.
• Applicable codes must be followed and supersede any other instructions.
Generally applicable codes in the US include: IPC (International Plumbing
Code).
• Improper installation or operation may cause a flood resulting in property
damage, personal injury, or death. Armstrong strongly recommends that a
qualified installer perform DRV start-up.
• DRV service must be performed by a qualified individual.
• Improper installation, start-up, operation, maintenance, or service may
void the warranty.
• Hot water or metal may cause scald burns. Skin exposure to 140°F
water or metal for only five seconds could cause a second-degree
Before using The Brain®, consult the full product manual by scanning the QR code or
visiting https://armstronginternational.com/products/the-brain-digital-recirculation-valve/.
DRV50/80 IOM
burn.
