1.00-inch (25 mm) Marine Component Tweeters
Haut-parleurs d'aigus composites marins 25 mm (1 po)
Tweeters de 1,00 in (25 mm) para componentes marinos
1,00-Zoll (25 mm) Hochtonlautsprecher Marinekomponente
Tweeter marini da 1 poll. (25 mm)
OWNER'S MANUAL
M6-100CT_092622
©2022 JL Audio, Inc.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for JL Audio M6-100CT
Summary of Contents for JL Audio M6-100CT
- Page 1 1.00-inch (25 mm) Marine Component Tweeters Haut-parleurs d’aigus composites marins 25 mm (1 po) Tweeters de 1,00 in (25 mm) para componentes marinos 1,00-Zoll (25 mm) Hochtonlautsprecher Marinekomponente Tweeter marini da 1 poll. (25 mm) OWNER’S MANUAL M6-100CT_092622 ©2022 JL Audio, Inc.

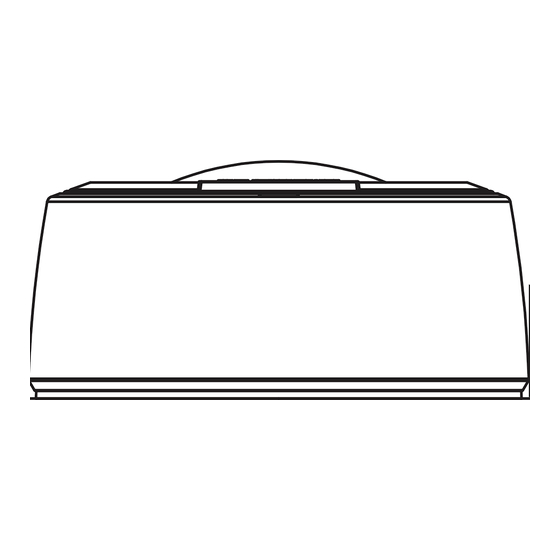

- Page 2 32 mm 0.80 in 20 mm 1.70 in 43 mm 2.125 in 54 mm M6-100CT 1.00 in / 25 mm 75 W 10 - 75 W 91.0 dB @ 1W/1m 4.8 KHz – 25 KHz ± 3 dB 4 Ω...
- Page 3 M6-100CT #10-32 x 1.50 in (38 mm) #6 x 5/8 in (16 mm) #8 x 5/8 in (16 mm) 7/64 in (2.78 mm) #8 x 5/8 in (16 mm) – WARNING! These tweeters must be used with an appropriate high-pass crossover filter, like those supplied in this kit, or actively filtered: 24 dB/octave (Butterworth) at 3,200 Hz.
-
Page 4: Flush Mount
FLUSH MOUNT (MONTAGE ENCASTRE / MONTAJE EMPOTRADO / EINBAUMONTAGE / MONTAGGIO A FILO) Ø 2.125 in Ø 54 mm ≤ 1.00 in ≤ 25 mm #10-32 x 1.50 in (38 mm) SURFACE MOUNT (MONTAGE EN SURFACE / MONTAJE SOBRE SUPERFICIE / AUFBAUMONTAGE / MONTAGGIO SUPERFICIALE) 3/32 in (2.5 mm) #6 x 5/8 in (16 mm) - Page 5 IMPORTANT: IMPORTANT : IMPORTANTE: • Installation requires appropriate • L’installation nécessite des outils • Para la instalación se requieren tools and safety equipment. et des équipements de sécurité herramientas y equipos de Professional installation appropriés. Une installation par un seguridad adecuados. Se is recommended.
