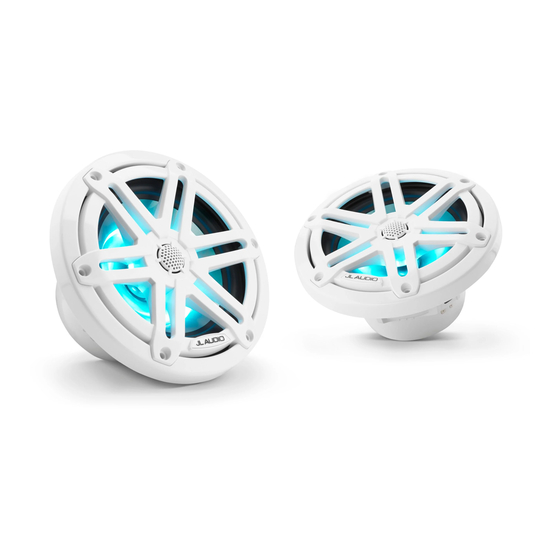

Marine coaxial loudspeakers with built-in rgb led lighting (optional)
Hide thumbs
1
2
3
4
5
6
7
8
Table of Contents

Advertisement

Quick Links

Download this manual

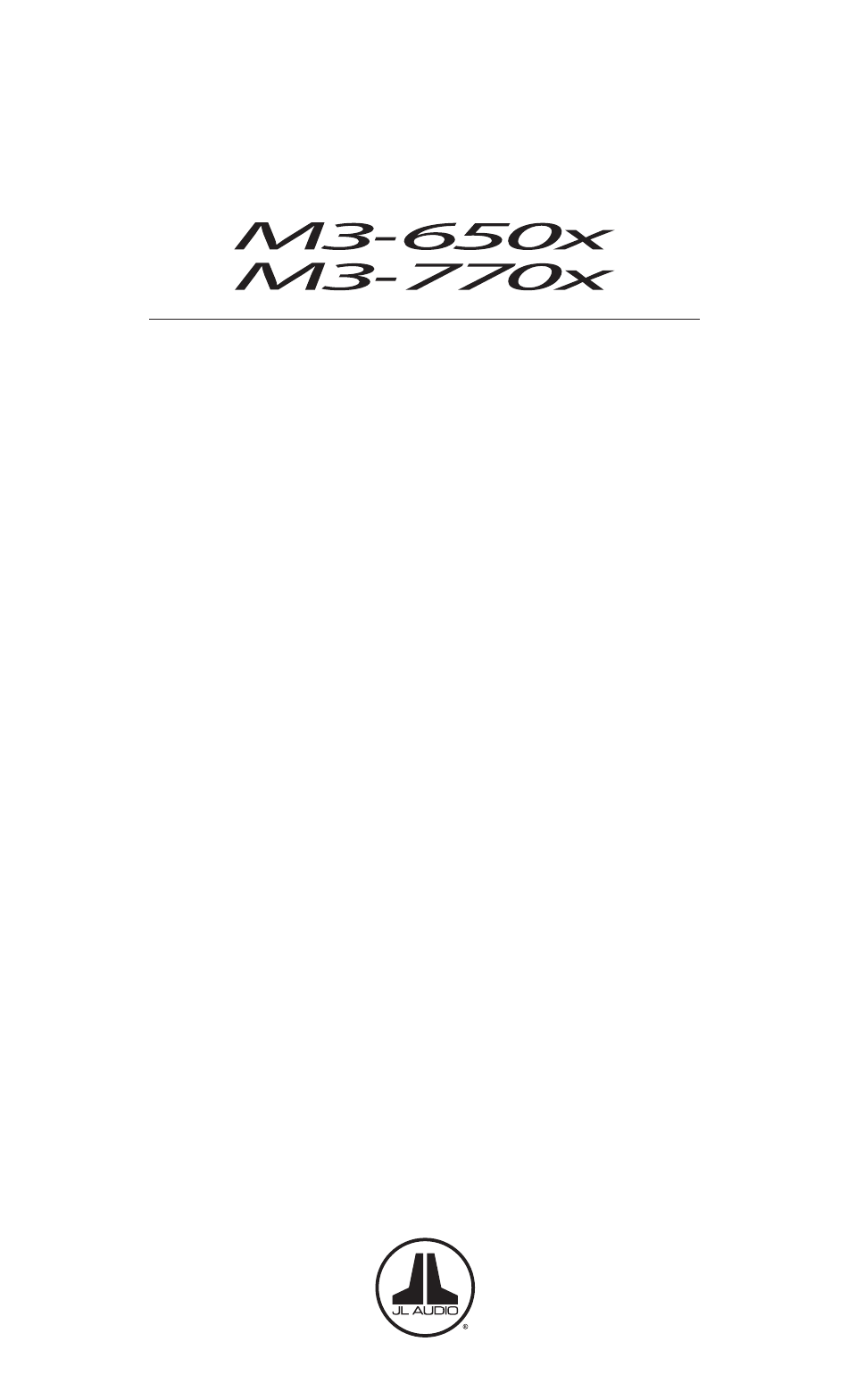

OWNER'S MANUAL
Marine Coaxial Loudspeakers with
Built-In RGB LED Lighting (optional)
Thank you for purchasing a JL Audio Marine Coaxial Speaker System.
With proper installation, your new speakers will deliver
years of listening pleasure.
We strongly recommend that you have your new marine speakers
installed by your authorized JL Audio dealer.
The installation professionals employed by your dealer have
the necessary tools and experience to properly install your new speakers.
If you prefer to perform your own installation,
please read this instruction manual completely before
beginning the process.
