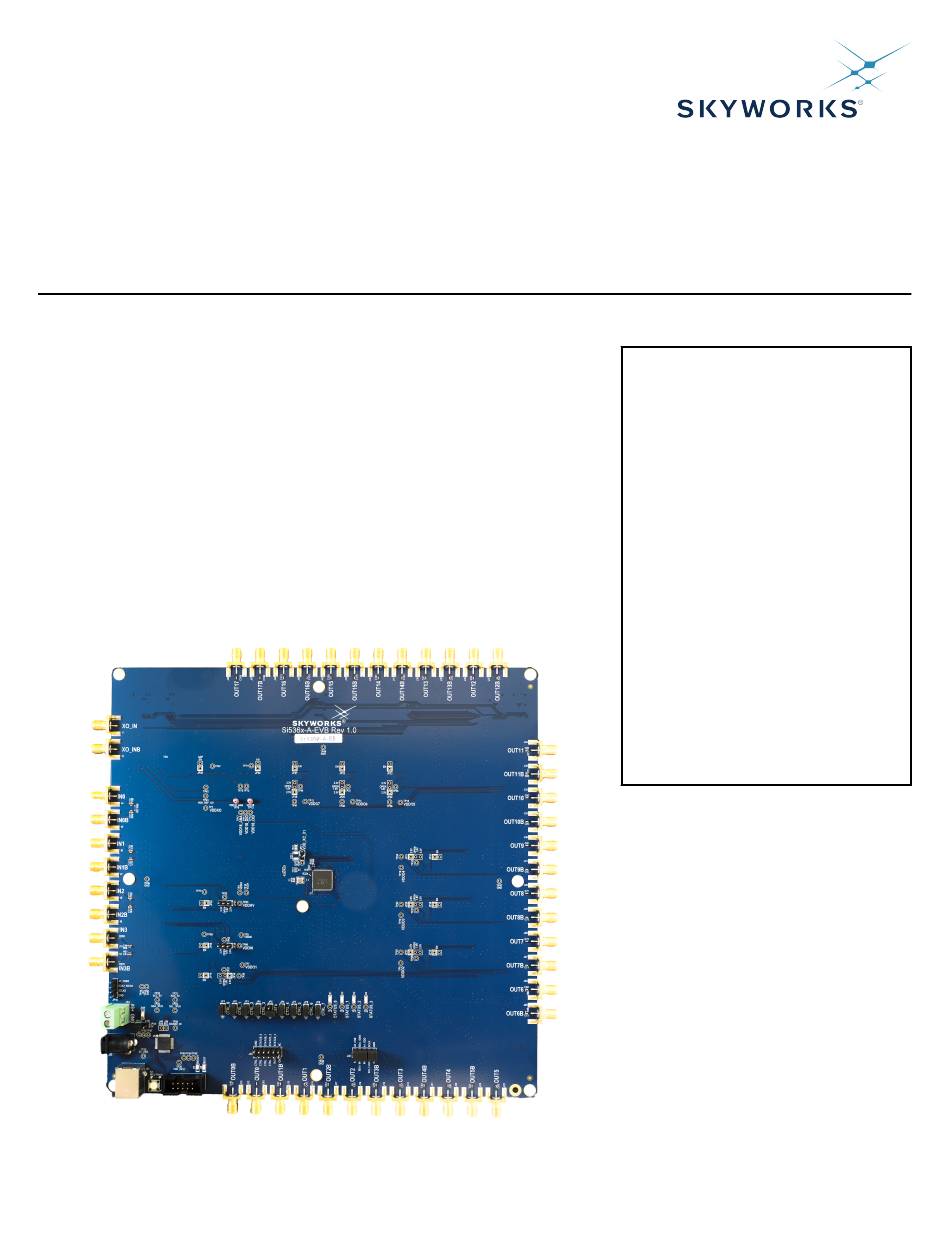

UG514: Si5360/61/62/63 Evaluation Board
User's Guide

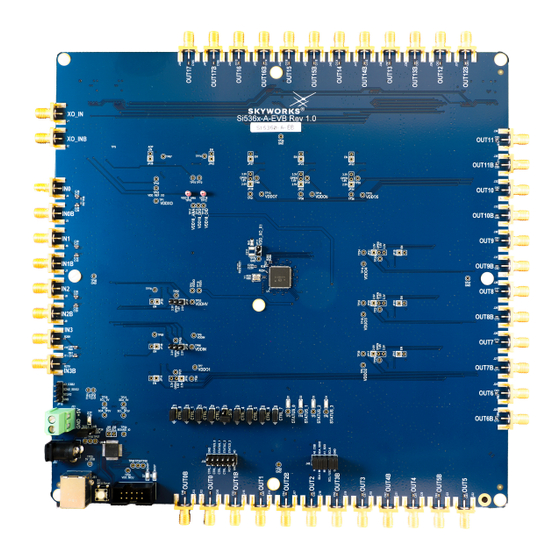

This document is intended for all Si536x-A-EVB product variants,
including Si5363, Si5362, Si5361 jitter attenuators and Si5360
clock generator. The exact device and revision is distinguished by
a white 1 inch x 0.187 inch label underneath the board's silkscreen
name. In this user guide, the Si5360 is used as a representation
for the evaluation of all the Si536x variants. CBPro software is
used to select the specific product variant to be evaluated. The
label "Si5360-A-EB" indicates the evaluation board has been as-
sembled with an Si5360 device, Revision A, installed. Strictly for
ordering purposes, the terms "EB" and "EVB" refer to the board
and kit, respectively. In this document, the terms are synonymous.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
1 206415A • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • November 4, 2022
KEY FEATURES
• Si536x-A-EVB used with CBPro software
to evaluate Si5363, Si5362, Si5361, and
Si5360
• Powered from USB port and an external
power supply, via either a terminal block or
a compatible wall mount AC adapter
• Onboard 48 MHz crystal and a 48 MHz
low phase noise XO
• ClockBuilder Pro ®
(CBPro) GUI
programmable VDD supply supports
device core voltages of 3.3 V and 1.8 V
• CBPro GUI programmable VDDO supplies
allow each of the outputs to have its own
power supply voltage selectable from 3.3
V, 2.5 V, or 1.8 V
• CBPro GUI-controlled voltage, current,
and power measurements of VDD and all
VDDO supplies
• Status LEDs for power supplies and
control/ status signals of the Si536x device
• SMA connectors for input clocks, output
clocks, optional external reference
