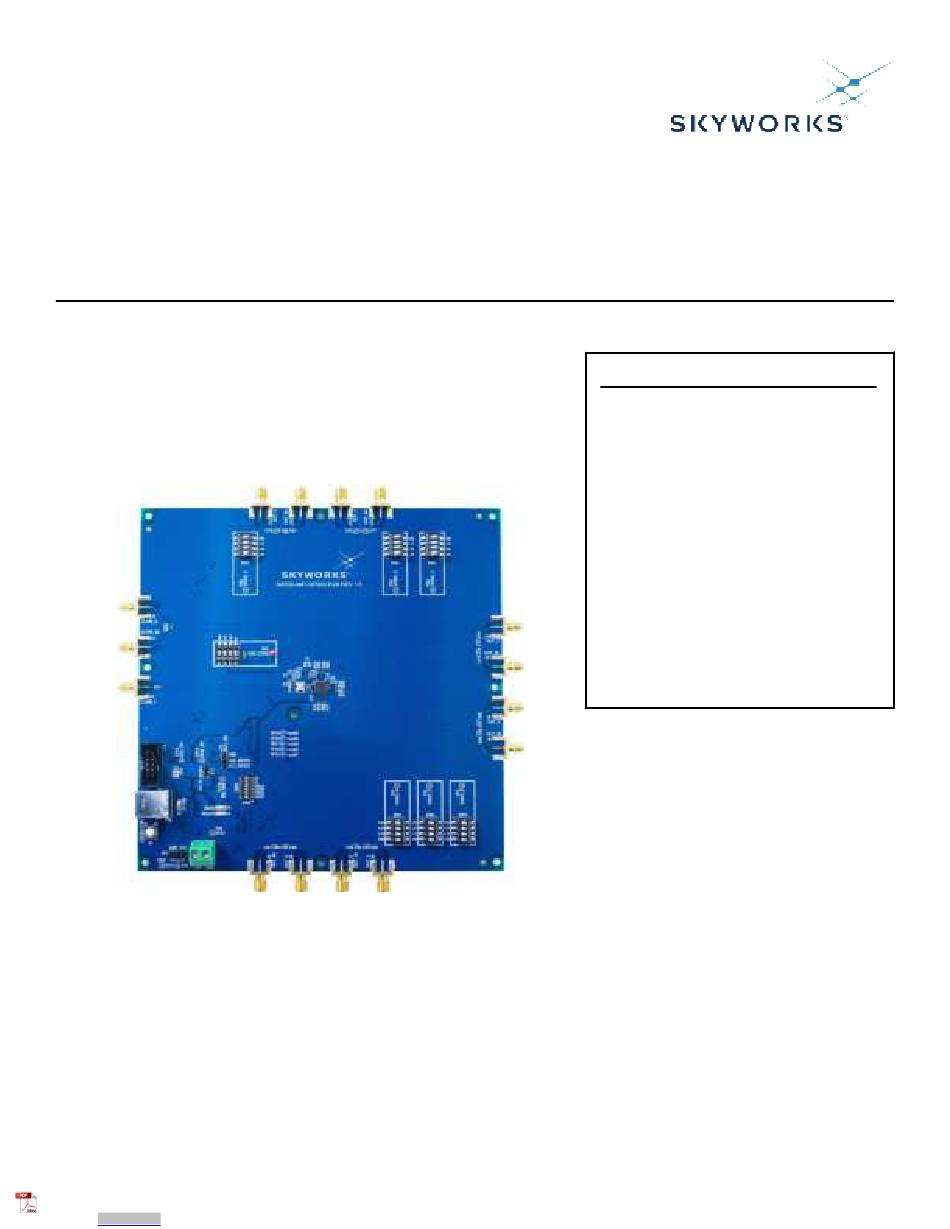

UG397: Si5332-6A-EVB Users' Guide
(Using Si5332-AM1-QFN32-EVB)

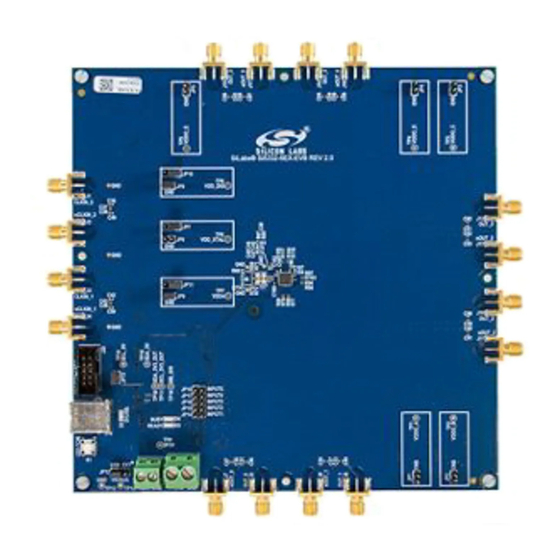

The Si5332-6A-EVB is used for evaluating the six-output Automotive Grade Si5332
Low Jitter Any-Frequency Clock Generator. The Si5332-AM1 device uses the pa-
tented Multisynth™ technology to generate up to six independent clock frequen-
cies each with 0 ppm synthesis error. The Si5332-6A-EVB has two independent
input reference clocks or can use the on-board 25 MHz crystal as reference. The
Si5332-6A-EVB can be controlled and configured using the Skyworks Clock Builder
Pro™ (CBPro™) software tool.
Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com
1
Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022
Arrow.com.
Downloaded from
KEY FEATURES
• Powered from either USB port or external +5V
power supply.
• 25 MHz crystal reference or external input clock
reference.
• Programmable device VDD supply for operation
at 3.3 V, 2.5 V, or 1.8 V, controlled by CBPro™
Software.
• Programmable VDDO supplies allow each of
the 6 outputs to have its own power supply
voltage selectable from 3.3 V, 2.5 V, 1.8 V, or
1.5 V (1.5 V LVCMOS only).
• CBPro™ GUI-controlled voltage, current, and
power measurements of VDD and all VDDO
supplies.
• SMA connectors for all input and output clocks.
• External digital input functions emulated via on-
board switches.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Si5332-6A-EVB and is the answer not in the manual?

Questions and answers

Related Manuals for Skyworks Si5332-6A-EVB

Summary of Contents for Skyworks Si5332-6A-EVB

  • Page 1 Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com. Downloaded from...

  • Page 2: Table Of Contents

    3.5 Output Clocks ......8 4. Using CBPro™ with Si5332-6A-EVB ..... . . 9 4.1 CBPro™...

  • Page 3: Functional Block Diagram

    1. Functional Block Diagram Below is a functional block diagram of the Si5332-6A-EVB. This EVB can be connected to a PC via the main USB connector for configuration, control, and monitoring using Skyworks’ CBPro software. The EVB’s power can be supplied from the USB connection or external +5 V power source.

  • Page 4: Si5332 Cbpro™ Overview

    Figure 2.1. CBPro Start-up Window Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.

  • Page 5: Si5332-6A-Evb Operation

    3.1 Initial Default Configuration The Si5332-6A-EVB has power supply configuration DIP switches (SW1 – SW7) which are set at the factory to the OFF position. The EVB also has a programmable digital I/O (GPIO) configuration DIP switch (SW8) also with all switches set to OFF position. The required EVB default DIP switch settings are all switches OFF (as shown below) and these settings are required to allow the CBPro software to control and configure the EVB.

  • Page 6: Leds

    (Busy) lights to indicate CBPro has successfully connected to the EVB. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.

  • Page 7: Input Clocks

    CLKIN_2/CLKIN_2b pins. As shown in the schematic below, the Si5332-6A-EVB is pre-populated with a 25 MHz crystal on the XA/XB crystal input. The CLKIN_2/ CLKIN_2b external clock inputs have 50-ohm terminations installed by default. The CLKIN1 input has “not-installed” (“NI”) components to isolate the CLKIN1 input from the crystal circuit when the crystal is installed.

  • Page 8: Output Clocks

    Figure 3.4. Si5332-6A-EVB Single Pair Output Clock Termination Circuit Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.

  • Page 9: Using Cbpro™ With Si5332-6A-Evb

    The EVB GUI can also be used to read and write on-chip registers and report other useful status information. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.

  • Page 10: Cbpro™ Evb Gui

    Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.

  • Page 11: Device Register Changes Using The Cbpro™ Evb Gui

    • Confirm device is now in “Active” mode. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.

  • Page 12: Creating A New Si5332-Am1 Cbpro™ Configuration

    The configuration should now be actively running in the Si5332-6A-EVB. Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.

  • Page 13: Si5332-6A-Evb Rev 1.0 Schematics

    5. Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 14 UG397: Si5332-6A-EVB Users' Guide (Using Si5332-AM1-QFN32-EVB) • Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 15 UG397: Si5332-6A-EVB Users' Guide (Using Si5332-AM1-QFN32-EVB) • Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 16 UG397: Si5332-6A-EVB Users' Guide (Using Si5332-AM1-QFN32-EVB) • Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 17 UG397: Si5332-6A-EVB Users' Guide (Using Si5332-AM1-QFN32-EVB) • Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 18 UG397: Si5332-6A-EVB Users' Guide (Using Si5332-AM1-QFN32-EVB) • Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 19 UG397: Si5332-6A-EVB Users' Guide (Using Si5332-AM1-QFN32-EVB) • Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 20 UG397: Si5332-6A-EVB Users' Guide (Using Si5332-AM1-QFN32-EVB) • Si5332-6A-EVB Rev 1.0 Schematics Skyworks Solutions, Inc. • Phone [781] 376-3000 • Fax [781] 376-3100 • sales@skyworksinc.com • www.skyworksinc.com Rev. 0.1 • Skyworks Proprietary Information • Products and Product Information are Subject to Change Without Notice • January 21, 2022 Arrow.com.
  • Page 21 Skyworks Solutions, Inc. (“Skyworks”) products or services. These materials, including the information contained herein, are provided by Skyworks as a service to its customers and may be used for informational purposes only by the customer.
