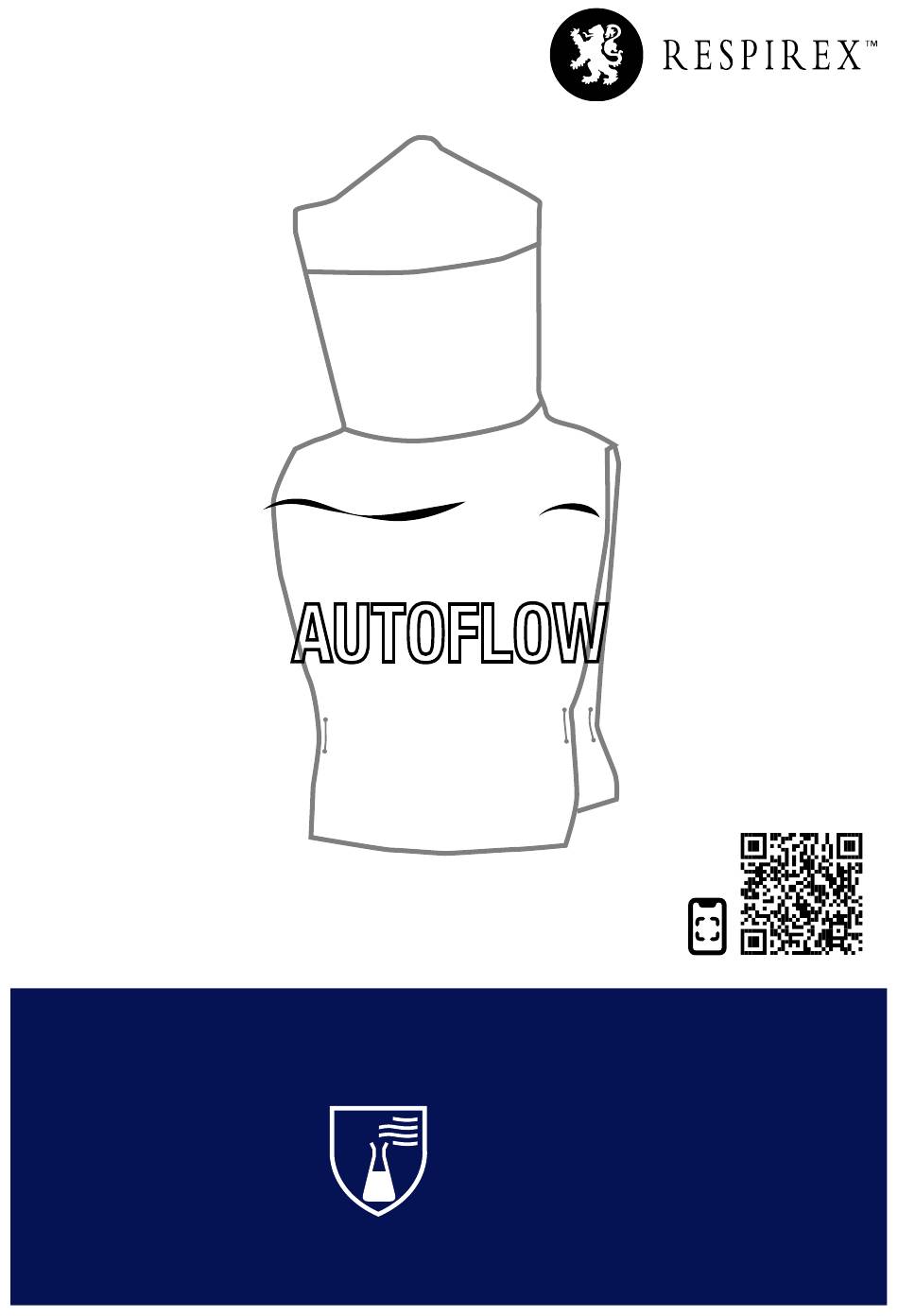

- Page 1 CTIVE CHEMICAL PROTECTIVE HOOD INSTRUCTIONS FOR USE Type PB [4] Type PB [6] BS/118/B/2024...
-
Page 2: Table Of Contents
Limitations & Warnings .............. 1 Storage ....................3 ActiveAir Autoflow Regulator ............4 ActiveAir Autoflow Waist Belt Assembly ........4 Airflow Assessment ................. 6 Pre-Checks ..................7 Compressed Air Supply Tube (CAST) ..........7 Dressing Procedure ................8 Decontamination for Removal of Hood .......... -
Page 3: General Information
• A single use, semi-rigid chemical protective visor, internal breathing hose and the barrier laminate fabric. • A reusable ActiveAir Autoflow Regulator, attached to the hip of the wearer, for connection to the Compressed Air Supply Tube (CAST) and the internal breathing hose in the Hood. - Page 4 Respirex assumes no responsibility for improper use of the ActiveAir Autoflow Hood. • If the hood is to be used in low temperatures and misting of the visor occurs, apply Respirex FOG OFF to the inner and outer surfaces of the visor.
-
Page 5: Storage
In order to maintain the level of protection offered, care should be taken to minimize the risk of damage occurring to the ActiveAir Autoflow Hoods during transportation between work areas. It is recommended that all ActiveAir Autoflow suits are transported in a suitably sized rigid container resistant to penetration by sharp objects, abrasive surfaces, chemicals, oils, solvents etc. -
Page 6: Activeair Autoflow Regulator
3. Compressed Air Supply Tube (CAST) coupling ActiveAir Autoflow Waist Belt Assembly 1. Lay the Regulator on a flat surface with the label facing upwards, Figure A. Next to the Regulator are the buckle clips used to fasten the belt 2. - Page 7 Figure C 3. Thread the belt through the buckle clips, Figure D and Figure E. Figure D Figure E 4. The completed ActiveAir Autoflow Regulator waist belt assembly ready for use, Figure F. Figure F...
-
Page 8: Airflow Assessment
Maximum 9 bar (Airflow rate inside the hood at 9 bar, 363 litres per minute) Minimum 2 bar (Airflow rate inside the hood at 2 bar, 198 litres per minute) This must be checked prior to each use. Respirex have supplied an airflow meter to provide a visual check for correct airflow (see below). -
Page 9: Pre-Checks
CASTs joined together to achieve this length. The CAST must meet the requirements of EN 14594:2018. If CASTs and couplings not supplied by Respirex are to be used they should be suitable for the intended purpose and conform to the requirements of EN 14594:2018. -
Page 10: Dressing Procedure
Figure 4 Note: If the ActiveAir Autoflow suit is connected to a mobile compressed air supply system operated by an assistant, care must be taken that when wearing ear defenders the audibility of the Autoflow Regulator warning device may be reduced. -
Page 11: Decontamination For Removal Of Hood
Figure 10 Decontamination for Removal of Hood Because the ActiveAir Autoflow Hood is designed primarily as a SINGLE USE garment, the end-user will be the sole judge for how long it can be worn on a specific task. Preliminary washing by means of a high pressure shower will remove most of the contaminant from the outer surfaces of the hood sufficient to allow the wearer to undress from the garment. -
Page 12: Undressing Procedure
Undressing Procedure It is essential that the hood is decontaminated sufficiently to safely remove it from the wearer. It may be necessary for a dressing assistant to aid the wearer to remove the hood (it is essential that the dressing assistant wears suitable protective clothing). -
Page 13: Product Labelling
Product Labelling Manufacturer of garment; Respirex International Ltd. Manufacturer’s Model number Material of Manufacture. Manufacturer’s Order No. Customer Name. Storage Temperature Garment Size. Unit F Kingsfield Business Centre, Philanthropic Road, Redhill, Surrey RH1 4DP. UK TEL +44 (0)1737 778600 info@respirex.co.uk Wilthener Straße 32 / Gebäude 4a,... -
Page 14: Chemical Permeation Testing
For advice on chemical permeation or decontamination contact Respirex on Tel : +44 (0)1737 778600, Fax : +44 (0) 1737 779441 or Email: info@respirex.co.uk, where our qualified staff will be happy to help you. Contact outside of normal working hours (9.00am-5.00pm) on Tel : +44 (0)1737 778600 answer phone, leave details of your enquiry and we will deal with your query with the minimum of delay. -
Page 15: Repellency To Liquid Chemicals
Resistance to penetration by liquid chemicals Tests carried out under laboratory conditions by independent accredited laboratories in accordance with EN ISO 6530. Penetration Chemical EN Class* index Sulphuric acid 30% < 1% 3 of 3 Sodium Hydroxide 10% < 1% 3 of 3 o-Xylene 99.9% <... -
Page 16: Sizing
Sizing The following table designates the range of height & chest sizes suitable for the ActiveAir Autoflow Hood; check your body measurements to make sure you are suitable. Body measurements in cm (inches). 60 - 112 158 - 194 Body measurements in cm... - Page 20 RESPIREX GmbH, RESPIREX INTERNATIONAL LTD, Wilthener Straße 32 Unit F Kingsfield Business Centre, Gebäude 4a, Philanthropic Road, D-02625, Redhill, Bautzen Surrey RH1 4DP DEUTSCHLAND ENGLAND Tel.: +49 (0)3591-5311290 Tel.: +44 (0)1737 778 600 Fax: +49 (0)3591-5311292 Fax: +44 (0)1737 779 441 info@respirex.de...
