To tune the carburetor on a TVS Jupiter, follow these steps:

1. Warm Up the Engine – Drive the vehicle for at least 10 minutes to ensure the engine is warm.
2. Start the Engine – Turn on the engine to begin the tuning process.
3. Adjust Idle Screw – Rotate the idle screw to increase the RPM.
4. Loosen Air-Fuel Mixture Screw – Slowly loosen the screw until you reach the maximum RPM, then mark this position.
5. Tighten Idle Screw Slightly – Increase the idle screw a little more.
6. Tighten Air-Fuel Mixture Screw – Slowly tighten until you reach the lowest RPM, then mark this position.
7. Loosen Air-Fuel Mixture Screw Slightly – Loosen it by a quarter turn to finalize the adjustment.
8. Test Acceleration – Accelerate and check if the engine shuts down. If it runs smoothly, the tuning is complete.

This process helps in optimizing fuel efficiency and engine performance.

This answer is automatically generated

raghavan

May 13, 2025

how to open helmut console

Summary of Contents for TVS JUPITER

Page 3 EXPRESS SERVICE … Get your vehicle serviced in 1 hour at no additional cost. Contact your nearest Dealership for details. … Facility available at selected Dealerships only. Terms and conditions apply...
Page 4 EXPERT ON WHEELS Busy Life? Easy Servicing! Now, service your bike anywhere, anytime. Service the vehicle at your door step. Available for regular maintenance or breakdown service only. Offered at nominal convenience charges. … Contact your nearest Dealership for details. …...
Page 5 PICKUP AND DROP Busy Life? Easy Servicing! Now, service your bike anywhere, anytime. Service the vehicle at your door step. Available for regular maintenance or breakdown service only. Offered at nominal convenience charges … Contact your nearest Dealership for details. …...
Page 6: Table Of Contents
CONTENTS CONTACT(S) FOR SUPPORT UNIQUE FEATURES OF TVS JUPITER ACCESSORIES FOREWORD NOTICE SAFETY INFORMATION RUNNING-IN INFORMATION SAFE RIDING TIPS KNOW YOUR TVS JUPITER RIDING YOUR TVS JUPITER MAINTENANCE WARRANTY AND SERVICES TECHNICAL SPECIFICATIONS GENERAL INFORMATION...
Page 7: Contact(S) For Support
Email : customercare@tvsmotor.com Disclaimer : TVS Motor Company or any of its officials / Authorized Main dealer / Authorized Dealer do not ask customers for bank / card / wallet details / authentication. In case you face any such claim, please report to the relevant local authorities immediately.
Page 8 CONTACT AT OUR AREA OFFICES TAMILNADU-1 & 3 KARNATAKA-1 & 2 MAHARASHTRA - 3 1. TVS Motor Company Limited 4. TVS Motor Company Limited 7. TVS Motor Company Limited V Floor, Gee Gee Universal, No. 600, Anand Surya, 2nd Floor, No.
Page 9 MADHYA PRADESH-1 & 2 PUNJAB & CHANDIGARH WEST BENGAL 10. TVS Motor Company Limited 13. TVS Motor Company Limited 16. TVS Motor Company Limited No. 211-212, 2nd Floor, 4th Floor, Royal Business Park, Ground Floor & First Floor, Chinar Incube Business Centre, Chandigarh Ambala Highway, 133 A.
Page 10 JHARKHAND 19. TVS Motor Company Limited Second Floor, Lucas Service Building, Argora Byepass Road, Ranchi - 834 002. Phone : 0651-2244715 Email : AO.Ranchi@tvsmotor.com NORTH EAST STATES 20. TVS Motor Company Limited 147 , Udayan, Ganesh Guri, Near Hotel D Courtyard, R G B.
Page 11: Unique Features Of Tvs Jupiter
Economy and Power to identify your vehicle from a crowded mode indications, Emergency parking lot. Log in to the TVS Connect brake warning, Turn signal lamp app to discover more SmartXonnect features. reset and Find my vehicle etc. Refer page 27 for more details.
Page 12 FIND MY VEHICLE iGO ASSIST Another remarkable feature of your TVS Jupiter is its ‘Find My Vehicle’ iGO assist technology that draws capability. This function enables power from Battery for improved users to locate their vehicle even Acceleration &...
Page 13 HEADLAMP WITH ‘FOLLOW ME HEADLAMP’ The TVS Jupiter’s speedometer FEATURE is equipped with a unique feature called ‘ECONOMETER’. The TVS Jupiter is equipped with a high-quality ‘LED Headlamp’, This feature designed adding premium look to the help riders optimize their fuel...
Page 14 Refer page 66 for details. EMERGENCY BRAKE WARNING TURN SIGNAL LAMP RESET Yet another pioneering feature of The TVS Jupiter includes a unique the TVS Jupiter is its “Emergency feature where its turn signal Brake Warning” system. When lamps automatically deactivates...
Page 15: Tubeless Tyres
‘Retractable TVS Jupiter TUBELESS TYRES Bag Hooks‘ to carry light luggage like carry bags weighing upto 3 The TVS Jupiter comes with the advantage of ‘Tubeless Tyres‘, which significantly reduces the risk of punctures. Even in the FRONT FUEL FILL...
Page 16: Front Glove Box
UNDER-SEAT STORAGE (UTILITY BOX) Taking technological innovation to next level, your TVS Jupiter Your TVS Jupiter has a 33 litre comes with ‘Synchronised Brake under-seat storage space to carry Technology (SBT)’. This feature your luggage belongings, two enhances the safety by avoiding helmet etc.
Page 17: Accessories
1. Side stand 2. Lady pillion foot rest SMART PHONE CHARGER 3. License plates Your TVS Jupiter is provided with 4. Kickstarter system in Disc SXC variant a provision for fixing a socket for 5. Smart phone charger charging your smart phone even 6.
Page 18: Foreword
For over 10 years, the TVS Jupiter has been known for ‘’Zyada ka Fayda, “ delivering exceptional value to millions. The all-new Jupiter builds on this legacy, offering best-in-class features like Double Helmet Space, Longest seat in its...
Page 19: Notice
(refer page 28 for further details). TVS Jupiter has a side stand sensor, it enables engine cut-off when side stand is in open condition (for anti fall safety). Rider must ensure to close / retract the side stand before starting the vehicle.
Page 20: Safety Information
SAFETY INFORMATION Operating this vehicle safely is an important responsibility of the rider. To help you make decisions on safety, we have provided necessary operating procedure and other information in this manual. This information alerts you on potential hazards that could hurt you or others. Since it is not possible to warn you about all the hazards associated with operating or maintaining the vehicle, you must use your own judgment.
Page 21: Running-In Information
Timely performance of the first free service will ensure optimum service life and performance from the engine. Caution Replacing the engine and transmission oil during first service is most important for better life of engine. Always use TVS TRU4 SKUUTA (SAE 10W30 API-SL, JASO MB) oil for better performance and life.
Page 22: Safe Riding Tips
Riding skill and your mechanical knowledge form the foundation of safe riding practices. We suggest you to practice riding TVS Jupiter in a low-traffic condition until you are thoroughly familiar with your vehicle and its controls. Remember practice makes you perfect.
Page 23 Posture Cornering Proper vehicle riding starts with proper posture. When cornering, centrifugal force works in a direction perpendicular to the direction in which the vehicle 1. Keep your elbows relaxed and flexible. is moving. Centrifugal force increases in proportion 2. Sit and adjust yourself on seat so that arms and with speed and the radius of the corner.
Page 24 Use extreme caution while selecting and installing or if there is water or oil on them, sufficient friction the accessories for your TVS Jupiter. does not develop and brakes do not work well. The addition of unsuitable accessories can lead to Even when the brake works normally, if the road unsafe operating conditions.
Page 25: Emission Control
Crankcase emission control system Note The engine of new TVS Jupiter is equipped with a Your vehicle is tested and certified for emission closed crankcase system to prevent discharging which meets BS VI emission norms and is valid for crankcase emissions into the atmosphere.
Page 26: Know Your Tvs Jupiter
VEHICLE IDENTIFICATION NUMBER The frame and engine serial numbers are the only means of identifying your TVS Jupiter from others of the same model and type. They are also required to assist your Dealer for ordering parts or referring to special information.
Page 27 LOCATION OF PARTS - HANDLE BAR 1. Speedometer assembly 2. Rear view mirror R 3. Right hand brake lever 4. Throttle grip 5. ‘TVS intelliGO’ switch 6. Electric start cum voice assist switch 7 . Smartphone charger** 8. All in one lock 9.
Page 28 LOCATION OF PARTS - VEHICLE LEFT SIDE 1. Transmission oil level screw 2. Brake adjuster rear 3. Kickstarter lever** 4. Pillion foot rest L 5. Effortless easy center stand 6. Side stand & side stand sensor*** 7 . Front wheel axle 8.
Page 29 LOCATION OF PARTS - VEHICLE RIGHT SIDE 1. Front wheel axle nut 2. Cover front 3. Pillion foot rest R 4. Gauge oil level 5. Muffler assembly 6. Rear fender 7 . Pillion handle 8. Seat assembly...
Page 30 LOCATION OF PARTS - VEHICLE FRONT & REAR FRONT 1. LED Head lamp 2. Head lamp focus adjuster 3. Infinity lamp cum turn signal indicators front L & R 4. Throttle cable adjuster REAR 1. Tail / brake lamp cum turn signal indicators rear L &...
Page 31 To lock the steering, turn the handle bar all the way to the ‘left’ or ‘right’. Push the key ‘IN’, turn it to the TVS Jupiter comes with an ‘all in one lock’. It has five ‘LOCK’ position and take out. All the electrical circuits positions and they are: are turned ‘OFF’...
Page 32 The seat lock operation is integrated into the ‘all in The fuel tank cap lock operation is also inbuilt in ‘all in one lock’ of the TVS Jupiter. one lock’ of TVS Jupiter. To unlock the seat, ensure the key is in the ‘OFF’...
Page 33 (if stored) will be The fully digital connected speedometer of the displayed instead of ‘RIDER’. TVS Jupiter boasts a wide range of innovative functionalities, complemented by informative tell-tale Various functionalities and tell-tale information of the indicators.
Page 34 MIL will be turned ‘ON’ when the ECU detects a To overcome this issue ‘TVS intelliGO’ system is fault in the system and MIL will blink when the ECU introduced in TVS Jupiter vehicle to automatically detects a misfire in the engine.
Page 35 ‘kick start’ when the engine is in stall condition closing the throttle trigger. and the ignition key is in ‘ON’ condition. ‘TVS intelliGO’ Deactivation of ‘intelliGO’ system: switch can be activated / deactivated at any point of time.
Page 36 When ‘TVS intelliGO’ is enabled, the intelliGO 7. Multifunction display lamp glows for 5 seconds and then blinks for predetermined time and then the engine stops. The intelliGO lamp glows continuously once the vehicle 7g 7h has stopped due to intelliGO system.
Page 37 7a. Fuel level indicator (fuel gauge) Only single bar will be shown when the fuel goes below 1.55 liters approx. Digital bars indicates the approximate quantity of fuel available in fuel tank. There are five bars to indicate the fuel quantity available in the tank. All the five bars will be displayed when the fuel in the tank reaches above 4.35 liters approx.
Page 38 Provision is provided for the users to measure two is shown in the notification area of the speedometer, different distances as per their convenience. Press contact nearest TVS Motor Company Authorised the mode button once to enter ‘TRIP A’ and twice Main Dealer / Authorised Dealer.
Page 39 7e. Digital clock contact nearest TVS Motor Company Authorised Indicates the time in 12 hour time format (AM or PM). Main Dealer / Authorised Dealer.
Page 40 An information message also will be popped-up in the notification area as shown: Get the battery checked at TVS Motor Company Authorised Main Dealer / Authorised Dealer. Caution Start ability of the vehicle using electric start will be Get the vehicle serviced at TVS Motor Company difficult when the low battery indication is ‘ON’.
Page 41 7j. Smartphone info 7k. Bluetooth connectivity ( ‘Smart phone info’ displays your smart phone’s The connected speedometer of your TVS Jupiter will Bluetooth, Battery level, Network providers signal display the Bluetooth icon ( ) once it is connected strength, Call alerts and Message alerts when the with your smart phone through mobile app.
Page 42 As a safety To reset the Range indicator, press the ‘SET’ button measure it is recommended to visit the nearest TVS Motor Company Authorised Main Dealer / Authorised for more than 5 seconds. This action resets both Dealer to get it rectified.
Page 43 9. Mode and Set switch ‘MODE’ switch is used to change the mode between ‘Average mileage & ODO meter, Average mileage & ‘TRIP A’ / ‘TRIP B’ / ‘TRIP F’, ‘Real time mileage & ODO meter’, ‘BLE MODE’, ‘BRIGHTNESS SET‘ and ‘SET CLOCK’...
Page 44 Real time economy: The ‘Real time economy‘ indicates the current fuel economy of the vehicle at that very moment. It The connected speedometer of your TVS Jupiter can displays the real-time fuel economy of the vehicle for be connected to your Android...
Page 45 3. Open the ‘TVS CONNECT’ app and press the gets adjusted automatically. ‘CONNECT’ icon, while ensuring that the smart Similarly, the rider‘s name stored in the app will get phone is near to the vehicle.
Page 46 ‘OFF’ and ‘ON’, and the application also need from Bluetooth settings in the following manner: to be restarted. Please remember that all the smart phones are not TVS Jupiter‘ compatible for pairing with the s connected speedometer. During the search of Bluetooth devices in app, if the vehicle‘s connected speedometer’s Bluetooth device ID...
Page 47 1. In the previous connected iPhone, open the Steps to ‘unpair’ in Android phones: SETTINGS -> BLUETOOTH tab. Similarly, if the user has any issue in auto pairing the 2. Select the connected speedometer, which was existing paired Android smart phone or to connect connected previously.
Page 48 In case of Android smart phones with Android OS version above 8.0, for App to work seamlessly, any battery optimization setting to be removed in the TVS Connect App and GPS shall be allowed to run in background in high accuracy mode.
Page 49 Once the connected speedometer of your TVS Auto pairing: Jupiter is connected with your smart phone, the Once the first time pairing is done between vehicle‘s connected speedometer displays Bluetooth ‘ ‘ connected speedometer and your smart phone, the icon, your smart phone‘s battery level ‘...
Page 50 Incase if the incoming call is missed, the number of Navigation assist: missed calls will be displayed as shown below for After pairing, once the navigation option is enabled 10 seconds. on the mobile app, the speedometer enters the navigation mode and displays the below message: The last caller details incase if the caller ID is stored On receipt of the navigation commands from the in the memory will be displayed as shown below:...
Page 51 During navigation, if the ‘MODE’ button is short Brightness set: pressed, the distance remaining to reach the Press the ‘MODE’ switch for more than 5 seconds destination will be displayed by the connected from ‘BLE MODE’ to enter the ‘BRIGHTNESS SET’ speedometer as shown below: mode.
Page 52 Phone battery low indication: Set clock: If the connected smart phone‘s battery charge status From the ‘BRIGHTNESS SET’ mode press the is lesser than 10% then, the speedometer displays ‘MODE’ switch for 5 seconds to enter ‘SET CLOCK’ the below warning message: mode.
Page 53 High speed alert: engine temperature exceeds Whenever the you are riding your TVS Jupiter at high approximately 55°C. speed than set speed, the ‘HIGH SPEED ALERT‘ will be displayed by the connected speedometer as The vehicle has traveled approximately 100 shown below: meters.
Page 54 Dedicated smart phone app is available in the Google To enable / disable ‘High Speed Alert’ during ride. Play and the Apple store for your ‘TVS Jupiter’ and To send navigational assist instructions inputs it can be installed in your Android and Apple smart to the connected speedometer from your smart phones.
Page 55 How to login On opening the TVS CONNECT App the following introductory screen will be displayed. Now, an OTP verification screen will get open. Key- in or copy & paste the OTP received from TVSM to login. Click on the ‘Login’ tab provided at the top of the Note screen to begin a login process.
Page 56 An logging in successfully the default vehicle screen Onboarding TVS Vehicle opens as shown below with various informations. You can onboard your TVS vehicle into the App by following the procedure given below: • Scroll down the initial screen and click on the ‘Onboard TVS Vehicle or Accessory’...
Page 57 Now, Another screen gets open with the VIN After completing the trip, whenever the vehicle is number and Invoice date or Engine/Motor switched ON again, TVS Connect app will not connect number entering options. automatically. Click the ‘Connect’ button of TVS connect •...
Page 58: Voice Assist
VOICE ASSIST We have upgraded our electric start switch with an additional function to invoke voice assistant. Once, the mobile app is connected to the connected speedometer. There are two ways to invoke voice assist in your scooter: 1. By pressing the Electric start / Voice assist switch for >2s.
Page 59 After listening the voice command, while the If the you provide a command that is not in the list of command is getting processed, the connected command (refer page 64), the message ‘REFER speedometer displays the following information. TO CMD LIST’ will be displayed on the connected speedometer.
Page 60 The following are the list of intents recognized by Note voice assist. You can refer page 64 for sample If you prompt to take to some location or prompt to take commands of each intent: to nearest POI after invoking the voice assist, based on Greeting command the time required to fetch the location, ‘PROCESSING’...
Page 61 EX. ‘01 CALLS MISS’. Warning TVS Motor Company Limited does not recommend usage of any type of Mobile Hand Held Devices, and applications / features whether installed or associated with the vehicle which deprives the rider’s...
Page 62 Voice assist commands and key words Sl. No. Intent Commands Voice Feedback Hi buddie How are you doing GREETING Hey buddie HELLO “________________” Hello friend How u doing Go to Take me to Let‘s go to Navigate to Navigate me to NAVIGATION TAKING YOU TO “______________”...
Page 63 Sl. No. Intent Commands Voice Feedback Near Near by TAKING YOU TO NEAREST “________________” Near to Nearest Brightness Increase Brightness Up Brightness High BRIGHTNESS INCREASED Increase the speedo brightness BRIGHTNESS INCREASE Turn up the brightness Turn off night mode REFER TO CMD LIST Increase the brightness BRIGHTNESS INCREASED Increase speedo brightness...
Page 64 Sl. No. Intent Commands Voice Feedback Decrease the brightness a bit REFER TO CMD LIST Decrease the speedo brightness BRIGHTNESS BRIGHTNESS DECREASED DECREASE Decrease speedo brightness Go dark REFER TO CMD LIST My location Where we right now What is the name of this place Where am i right now &...
Page 65 Sl. No. Intent Commands Voice Feedback How many missed calls I have Have I missed calls Missed call CALL MISSED Number of missed calls “____” MISSED CALLS Did i get any calls Show me missed calls Update status on the missed call Last call Who called me last Who called recently...
Page 66 Sl. No. Intent Commands Voice Feedback Show me the stats for the last ride Tell me the top speed for the last ride Whats my top speed achieved in my last ride SPEED What‘s the top speed we hit toady TOP SPEED “_____”...
Page 67 Sl. No. Intent Commands Voice Feedback Enable do not disturb Do Not Disturb enable Do Not Disturb ON Enable DND SETTING DND ENABLE ENABLED DND DND setting enabled DND mode enabled Do not disturb setting enabled Do not disturb mode enabled Disable do not disturb Do Not Disturb disable Do Not Disturb OFF...
Page 68 Sl. No. Intent Commands Voice Feedback Decrease volume Volume down VOLUME DECREASE VOLUME DECREASED Decrease sound Reduce volume SETTING HIGH SPEED Enable high speed alert ENABLED SPEED ALERT ALERT ENABLE SETTING HIGH SPEED Disable high speed alert DISABLED SPEED ALERT ALERT DISABLE Note The list of commands and intent will be updated periodically.
Page 69 Things to do while using voice assistant: Customization of follow me headlamp timer using TVS Connect app 1. We recommend to use ANC (Active Noise Canceling) Bluetooth devices better Follow me home headlamp timer can be customized performance. using the mobile app through the settings screen.
Page 70 Voice assist commands and key words TVS Jupiter is equipped with yet another first-in-class feature – Smart talk. Smart talk feature communicates from vehicle to customer of either critical parameters like fuel level or achievements done like top speed achieved as shown below: Sl.
Page 71 PREMIUM LED HEADLAMP WITH ‘FOLLOW ME INFINITY LAMPS HEADLAMP’ FEATURE The TVS Jupiter is furnished with ‘Infinity Lamps’, TVS Jupiter is equipped with a high-quality ‘LED enhancing its appearance with a stylish touch and Headlamp’ which glows automatically once the elevating its overall aesthetic appeal.
Page 72 HANDLE BAR LEFT SIDE Press the turn signal cum hazard lamp switch knob continuously for few seconds to operate the hazard 1. Horn switch lamps ‘ ’ whenever it is necessary to park the Press the switch ‘ ’ to operate the horn. scooter in a hazardous location due to emergency 2.
Page 73 ‘ ’ to operate headlamp low beam. TVS Jupiter has a combined switch for headlamp ‘high / low beam’ and ’pass-by’ operation. To operate the ‘pass-by’, keep the switch in ‘low beam’ position, press gently and release. This makes the headlamp high beam to flash and signal the approaching vehicle.
Page 74 Simple short press the switch to activate the voice control when your smart phone is connected with your connected speedometer. 1. ‘TVS intelliGO’ switch To activate the ‘TVS intelliGO’ system, set the intelliGo switch to ‘ ’ position. The intelliGo indicator ’ ’...
Page 75: Fuel Tank Cap
FUEL TANK* CAP Caution Fuel tank is located at the front end of the vehicle Ensure that the fuel gun is inserted fully into the tank below the handle bar. neck while refueling. To open the fuel tank cap, follow the procedure given Whenever refueling, fill upto the bottom of the neck in the page 26.
Page 76: Kickstarter Lever
EFFORTLESS E-Z CENTRE STAND The kick starter lever is located on the left side of the TVS Jupiter is equipped with a effortless center vehicle. To start the vehicle, park the vehicle on center stand. The center stand (1) has a pivoted flexible stand and turn ‘ON’.
Page 77: Side Stand
In such condition, It is recommended to use the tool kit in case of any please visit the nearest TVS Motor Company Limited emergency only. It is always advisable to take your Authorised Main Dealer / Authorised Dealer.
Page 78: Utility Box
Ensure the first aid equipments are changed periodically based on the date of expiry. Warning Operating the TVS Jupiter overloaded will hamper the riding stability and may lead to loss of control. Hence, it is advisable to carry the recommended amount of load...
Page 79 Do not keep valuable items inside the utility box when leaving the vehicle unattended. Warning Ensure that your mobile or any material stored is safely held with in the glove box front while riding your TVS Jupiter.
Page 80 BAG HOOK SMART PHONE CHARGER** A bag hook is provided with your TVS Jupiter to carry A smart phone charger is provided with your vehicle light luggage like carry bags weighing upto 3 kg. This and it located below left side of the handle bar. This hook is located below handle bar on the rear panel.
Page 81 DO‘s 1. Ensure that no water enters into the socket by closing the USB flap properly. 2. Use only mobile phone company‘s authorized USB cable for mobile charging. 3. Do make sure the flap is not damaged while opening / inserting the USB cable. DON‘Ts 1.
Page 82: Riding Your Tvs Jupiter
RIDING YOUR TVS JUPITER PRE RIDE INSPECTION Check the following items before riding ITEM WHAT TO CHECK FOR Engine oil Availability of oil upto the level (refer page 90) Transmission oil Availability of oil upto the level (refer page 91)
Page 83: Starting The Engine
STARTING THE ENGINE Warning Ensure availability of fuel in the fuel tank. Insert the Do not raise the throttle rapidly so the vehicle will move control key into the ignition cum steering lock and forward suddenly and lead to loss of control. turn it to the ‘ON’...
Page 84: Fuel Recommendation
FUEL RECOMMENDATION Caution Use only BS VI petrol with minimum RON 91. Never mix oil in petrol in the fuel tank. Always fill fuel BS VI petrol containing upto 20% of ethanol by from the reputed and reliable fuel stations. volume can be used.
Page 85 Ensure to close fuel tank cap after every filling. If the fuel tank cap kept open for long Note time, it leads to safety and fuel loss. TVS Jupiter The on-road mileage of is dependent on Tyres several factors like road condition, quality of fuel, riding Low tyre pressure has adverse effect on the vehicle.
Page 86: Maintenance
Cylinder head, steering components, suspension and wheel components etc., are key items and require very special and careful servicing. TVS Motor Company Limited strongly recommends that the jobs as per the maintenance schedule be performed by your TVS Motor Company Authorised Main Dealer / Authorised Dealer.
Page 87 PERIODIC MAINTENANCE SCHEDULE (months or km whichever occurs earlier) AFTER FREE SERVICE FREE SERVICE RIDE REMARKS SERVICE Every CHECK 500 ~ 750 5500 ~ 6000 11500 ~ 12000 6000 km / PERIOD FROM DATE OF SALE 30 ~ 60 days 6 months 12 months 6 months...
Page 88 AFTER FREE SERVICE FREE SERVICE RIDE REMARKS SERVICE Every CHECK 500 ~ 750 5500 ~ 6000 11500 ~ 12000 6000 km / PERIOD FROM DATE OF SALE 30 ~ 60 days 6 months 12 months 6 months ITEMS ACTIVITY Inspect and adjust Steering smooth operation / play Inspect and adjust or Lubricate –...
Page 89: Recommended Lubricants
RECOMMENDED LUBRICANTS APPLICATION MANUFACTURER BRAND TVS TRU4 SKUUTA oil Engine oil 700 ml TVS Motor Company (SAE 10W30 API-SL, JASO MB) Transmission oil 120 ml -do- -do- Front fork oil 92 ± 1 ml / leg Gabriel Premium front fork oil Disc brake fluid* –...
Page 90 1. Follow the procedure for front panel removal: the battery using recommended MF battery 2. Remove the front panel mounting screws shown charger at TVS Motor Company Authorised Main in the figure (2 nos.). Dealer / Authorised Dealer. 3. Gently pull out the front panel by dislocating its lugs by carefully dislocating lugs from its mounting.
Page 91 5. lncase of any abnormality or for removal of battery a stretch in one ride or several rides during the week. from the vehicle, contact TVS Motor Company Authorised Main Dealer / Authorised Dealer. The vehicle speed will vary during the ride but an average speed of minimum 30 kmph will be helpful to ensure proper battery charging.
Page 92 c. Alternatively, battery connecting wires (Above recommendations do not consider storage (positive negative wires) effects on other systems such as induction and disconnected and fasteners can be secured fuel systems and wheels) with battery terminals.* Periodic Maintenance of Batteries: 2. During Storage Keep top of battery clean a.
Page 93 FUSE Non-working of electrical systems may be due to safety fuse failure. Short circuit or overload in the electrical system are the main causes for fuse failure. There is a 50A cartridge type fuse is fixed on the right side of the battery as illustrated below: Similarly, another two more fuse cases containing three blade type fuses (15A x 2 and 10A x 1) located on the left side of the battery as illustrated.
Page 94: Spark Plug
7 . Turn ‘ON’ the ignition switch and check for proper functioning of electrical systems. Incase the fuse fails again, consult the nearest TVS Motor Company Authorised Main Dealer / Authorised Dealer.
Page 95 5. Pull out the suppressor cap from spark plug. After cleaning and adjusting the gap, reinstall the Using the spark plug spanner, remove the spark spark plug and tighten by hand to avoid cross plug. threading. Finally tighten using spark plug spanner. A spark plug with heavy carbon deposits will not produce strong sparks.
Page 96: Engine Oil Level
Do not fill excess oil may cause oil leak. Always level marks of the gauge (shown in the figure). use ‘TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO 5. If the oil is less than the minimum level, add ‘TVS MB)’ only. TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)’...
Page 97: Transmission Oil - Level
If the vehicle is driven with less transmission oil, the transmission components will be severely damaged. Check the oil level as per the schedule to avoid costly damage. Do not fill excess oil may cause oil leak. Always use ‘TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB)’ only.
Page 98 BRAKES Front brake - SBT drum type 1. Measure the free play of the front brake lever at the lever end as shown in the figure. 2. The free play of the brake lever before the engagement of brake should be between 10 ~ 15 mm.
Page 99 Technology (SBT) adjust the brakes with additional between the bullet top (3) and the slot top (4). care. If not it may result in brakes not working properly. Please contact TVS Motor Company Authorised Main Dealer or Authorised Dealer for further assistance. Clearance Clearance...
Page 100 1. You can observe a master cylinder (1) right side of the handle bar under the head lamp housing. Warning In case of vehicle fitted disc brake SBS version, if there is any abnormality in brake performance, contact TVS Motor Company Authorised Main Dealer / Authorised Dealer.
Page 101 TVS Motor Company Authorised Main Dealer or Authorised Dealer for topping-up the brake fluid, air bleeding and other brake related 10 ~ 15 mm inspections.
Page 102 Brake shoe wear indicator - Rear When brake is applied, the wear limit indication pointer (1) on the rear brake cam lever should be within the wear limit indicator (2) on the crankcase In case the wear limit indication pointer (1) is going beyond wear limit indicator (2), index the lever to next slot with the help of Dealers to extend shoe life.
Page 103: Rear Shock Absorbers
REAR SHOCK ABSORBERS TVS Jupiter is provided with 3 step adjustable rear shock absorbers to meet different road and load. There are 3 notches for adjusting spring load. If the spring is adjusted to the minimum notch, then the shock absorber will be softer which is good for light loads.
Page 104 TYRES Tyre pressure Check the tyre pressure atleast once in a week if not more frequently. Insufficient air pressure in the tyres not only hasten the tyre wear, but also seriously affects the stability of the vehicle. Under inflated tyres make smooth cornering difficult and over inflated tyres decreases the tyre contact with the ground which can lead to skidding and loss of control.
Page 105 Even though, if there is need of tyre removal, it is strongly recommended to use a tyre removal / fitment machine. If at all, tyre levers needs to be used, the levers should be free from sharp edges. Care should be taken not to damage the tyres and rims.
Page 106 Tyre Maintenance Tips Inflation Pressure Check - Condition Within Within 1 km 5 km Note If vehicle is in hold condition for long time • Need movement of vehicle to avoid particular spot of tyre not to touch the ground for more than week time. •...
Page 107 FRONT WHEEL REMOVAL AND REASSEMBLY Disc brake Drum brake 1. Remove the axle nut (1) along with a washer. 1. Remove the axle nut (1) along with a washer. 2. Pull out the axle (2) along with a washer and take 2.
Page 108: Storage Procedures
STORAGE PROCEDURES REAR WHEEL REMOVAL AND REASSEMBLY 1. For storage of TVS Jupiter for longer period of 1. Place the vehicle on the center stand. over a month and above, we recommend to carry 2. Hold the rear brake firmly and remove the wheel out the following steps: mounting nut (A) along with a washer.
Page 109 Make sure that the 3. Fill the engine oil (TVS TRU4 SKUUTA - SAE storage area is well ventilated and free from any 10W30 API-SL, JASO MB oil) and check the oil source of flame or spark.
Page 110 Caution 2. Adequate fuel in the fuel tank. Long journey are to be taken only after the running-in C) Check your TVS Jupiter for the following: period of 1000 km. 1. Tightness of all bolts and nuts with correct torque value.
Page 111: Warranty And Services
TVS Motor Company Limited (‘the Company’) give this warranty with respect to the TVS Jupiter manufactured by the Company. While the Company has taken every care to maintain quality in the manufacture of the TVS Jupiter, the above said warranty is subject to other terms of warranty: ...
Page 112 Authorised Main Dealer / Authorised Dealer the owner’s manual for the concerned vehicle for verification of relevant details. 8. This is the only warranty given by the Company for the TVS SmartXonnect. No employee, Dealer or other person is authorised to extend or enlarge this warranty.
Page 113 List of parts not covered under warranty ITEM WHAT TO CHECK FOR Engine tune-up, decarbonizing, fuel system cleaning, oil changes, head light Normal Maintenance Operations focusing, fastener retightening, ignition timing, clutch and brakes as well as other normal adjustments. Chain, sprockets, clutch and brake linings, fasteners, shims, washers, oil seals, Wear and Tear Items gaskets, O’...
Page 114 Vehicles on which engine number or chassis number is deleted, defaced or altered. Vehicles on which any warranty service including scheduled paid service is not availed when it falls due (at TVS Motor Company Authorised Main Dealer / Authorised Dealer).
Page 115: Service Information
SERVICE INFORMATION There are seventeen services for TVS Jupiter during warranty period. Of these, first four services are free services for which labour charges are free. In addition to these four free services, we have a scheme of thirteen pay services.
Page 116 Planned Service Schedule (kms or month whichever of the two occurs early)* Sl.No. Service Type Months 1st Service Free 500 ~ 750 30 ~ 60 days 2nd Service Free 5500 ~ 6000 3rd Service Free 11500 ~ 12000 4th Service 17500 ~ 18000 5th Service 23500 ~ 24000...
Page 117: Technical Specifications
Front & Rear Alloy Wheel Front & Rear Alloy Wheel (Front Disc Brake Type) (Front Drum Brake Type) TVS Motor Company Limited P . B. No. 4, Harita,Hosur - 635 109, India MANUFACTURER TVS Motor Company Limited Village Bhatian, Bharatgarh Road, Teh Nalagarh, Dist. Solan.
Page 118 TVS Jupiter DESCRIPTION Front & Rear Alloy Wheel Front & Rear Alloy Wheel (Front Disc Brake Type) (Front Drum Brake Type) ENGINE Maximum speed 82 km/h Engine idling rpm 1450 ± 200 rpm (under warm condition) Starting system Electric starter / kickstarter***...
Page 119 TVS Jupiter DESCRIPTION Front & Rear Alloy Wheel Front & Rear Alloy Wheel (Front Disc Brake Type) (Front Drum Brake Type) CHASSIS Ground clearance (unladen) 163 mm Wheel base 1275 mm Kerb weight (with toolkit and 90% of fuel) 105 kg...
Page 120 TVS Jupiter DESCRIPTION Front & Rear Alloy Wheel Front & Rear Alloy Wheel (Front Disc Brake Type) (Front Drum Brake Type) TYRE Front tyre 90/90 - 12 54J (tubeless) Rear tyre 90/90 - 12 54J (tubeless) Front tyre pressure* 1.70 kg/cm² (24 PSI) Rear tyre pressure - Solo* 2.25 kg/cm²...
Page 121 TVS Jupiter DESCRIPTION Front & Rear Alloy Wheel Front & Rear Alloy Wheel (Front Disc Brake Type) (Front Drum Brake Type) ELECTRICAL Turn signal lamp 9V, LED Position lamp 9V, LED Number plate lamp 12V, 3W x 1 bulb Instrument panel Turn signal indicator lamp LCD screen &...
Page 122 …… BS VI petrol with minimum RON 91 (containing upto 20% of ethanol by Fuel volume) Engine / transmission oil grade TVS TRU4 SKUUTA oil (SAE 10W30 API-SL, JASO MB) Engine oil capacity 700 ml Transmission oil capacity 120 ml...
Page 123: General Information
GENERAL INFORMATION Dear Customer, It is mandatory under the Motor Vehicles Act to insure all motor vehicles. No motor vehicle can be used in a public place without a valid policy of insurance issued by an authorised insurer. Driving a motor vehicle without any such insurance is an offense under Motor Vehicles Act.

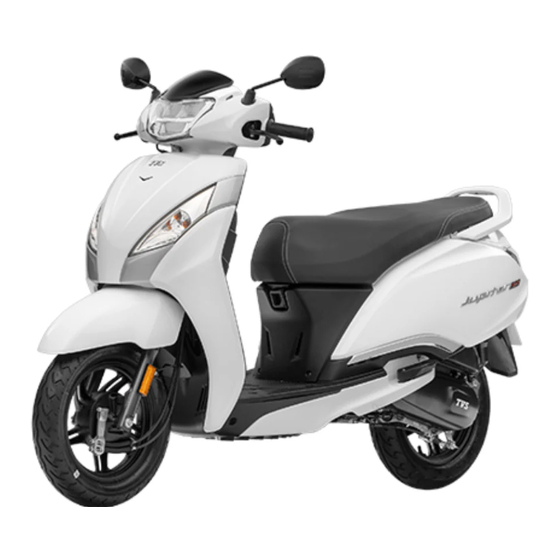

TVS JUPITER User Manual
