Summary of Contents for TVS iQUBE

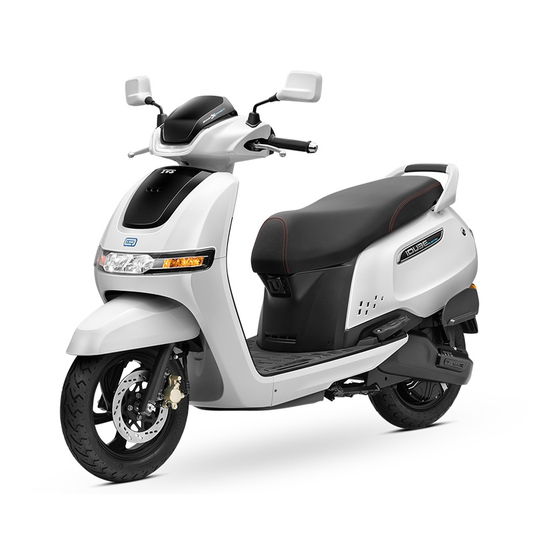

- Page 3 TVS iQube. Follow the instructions and enjoy an intelligent and eco-friendly experience. To always ensure a care-free journey on your TVS iQube, we urge you to get your TVS iQube serviced only at TVS Motor Company Authorized Dealers.
- Page 4 Under any circumstances, TVS Motor Company Limited will be glad to provide any additional information or service assistance you require. Please feel free to contact us at: Dealer code, name ................................Address .............................................................................................. Contact person name and mobile no. (Sales) ................................
- Page 5 INTRODUCTION One of the finest and modern technology products of TVS Motor is waiting to be unveiled; an electric scooter which is futuristic and contains plenty of features and technological advancements. However, before delving further into this manual, let us first have a glimpse of what your electric two wheeler is and how it is different from an internal combustion engine powered vehicle.
- Page 6 All informa on, illustra ons, photographs and specifica ons contained in this owners manual are based on the latest product informa on available at the me of this publica on. TVS Motor Company Limited may, however, incorporate modifica ons or improvements on its vehicles at any me without no ce and therefore, in such events it is possible that the relevant part of the owner’s manual does not apply to your vehicle.
- Page 7 2. Use appropriate head lamp beam ‘high / low’ as per the traffic and road conditions for your safety and avoid inconvenience to other riders. 3. Operating the TVS iQube overloaded will hamper riding stability and may lead to loss of control. Hence, it is advisable to carry the recommended amount of load only.
- Page 8 PLUG IN CHARGING LCD / TFT INSTRUMENT CLUSTER Unlike conven onal scooters this vehicle is Plug in charging helps user to charge the having a digital instrument cluster which vehicle ba ery with the help of included ensures brighter display and allows ease of charger.
- Page 9 REGENERATIVE BRAKING RANGE 9:15 AM REGEN REGEN 30 Aug 2018 Thiruvana... CALL ALERT POWER POWER TRIP AVG SPEED 13614.3 12.2 km/h It recuperate energy lost during braking / decelera on of trac on motor under specified condi ons and charge the ba ery. Once Mobile phones connected with vehicle speedometer, incoming call options and messages will be shown in speedometer while...
- Page 10 BATTERY CHARGE LEVEL & RANGE RANGE 9:15 AM REGEN REGEN ILLUMINATING LOGO & UTILITY BOX 30 Aug 2018 Thiruvana... LIGHT Incoming... POWER POWER Sanket Koktk... TRIP AVG SPEED Service due in 13614.3 12.2 500 km km/h LOW BATTERY ECO MODE Battery level indication helps customer to know how much battery charge is left in the vehicle by displaying percentage of SOC...
- Page 11 SIDE STAND INDICATION MALFUNCTION INDICATION AND SERVICE Vehicle will be immobile and side stand REMINDER indication will be shown in the speedometer if the vehicle is on side stand. Caution Always release the side stand to its full up position before moving the vehicle.
- Page 13 CHAPTER A Overview ---- (Pages 1 - 8) CHAPTER B Vehicle Charging ---- (Page 9 - 10) CHAPTER C At a Glance ---- (Pages 11 - 13) CHAPTER D Control ---- (Pages 14 - 19) CHAPTER E PMS ---- (Page 20 - 22) CHAPTER F Warranty Terms &...
- Page 14 OVERVIEW...
- Page 15 VEHICLE IDENTIFICATION NUMBER The frame and traction motor serial numbers are the only means of identifying your vehicle from others of the same and type. They are also required to assist your Dealer for ordering parts or referring to special information. The frame serial number is stamped on the frame, at the rear end below the seat assembly.
- Page 16 Your TVS iQube is provided with a fully digital connected instrument cluster with lots of feature and modes like Economy, Power, Parking, navigation assist, Bluetooth connected app for mobile devices, etc. Morever your vehicle’s instrument cluster is provided with several tell tales & alerts to inform you about the vehicles current condition, lets have a...
- Page 17 REGEN...
- Page 18 POWER / ECONOMY MODE DISPLAY 1. Battery level indicator (SOC) - 8. Average Speed - Indicates battery charge in percentage as It indicates average speed in Kmph. well as bars; 9. Trip A / Trip B - Ÿ This instrument cluster comes with two trip Full SOC –...
- Page 19 DAY / NIGHT MODE Day / Night mode change over based on the level of ambient light. INCOMING CALL AND MESSAGE ALERT LOW BATTERY ECO MODE Once Mobile phones connected with vehicle speedometer, incoming Call options and messages will be shown in speedometer while customer is riding the vehicle as shown above.
- Page 20 è your internet enabled smart phone (#TVSM APP name) even if you are not near to vehicle. Live tracking – The live status of the vehicle can be checked remotely at any time using TVS è mobile app prescribed for this vehicle.
- Page 21 PARKING THE VEHICLE Note If ‘ ’ is glowing in cluster shows that the User can select Park assistance while è vehicle is in park assist mode. parking, by pressing park assist switch & either of the brake switch [(4) / (13)] Caution s i m u l t a n e o u s l y f o r a t l e a s t 5 0 0 milliseconds.
- Page 22 POWER MODE To activate the vehicle- è Press mode switch and either one of the Ü brake [(4) / (13)] simultaneously until you will hear a beep sound once it is activated and it will enter into economy mode- While in economy mode, press mode è...
- Page 23 VEHICLE CHARGING...
- Page 24 RCD Integrated Cable VEHICLE END AC END AC end of the charging cable as well as AC socket is of the IEC 60309 standard, industrial plug type for your additional safety. *CONNECTING FOR CHARGING Plug in cable AC end to AC socket Socket 2ⁿ...
- Page 25 DISCONNECTING CHARGER Turn off and take out cable AC end from AC socket Socket 2ⁿ Press Rotate clock wise Note * Smart home charging unit is an optional accessory. Charging cable is provided with the vehicle. Caution Charge the batteries only using provided charger. Turn on the power supply switch once charger is plugged in the vehicle.
- Page 26 AT A GLANCE...
- Page 27 VEHICLE LEFT SIDE 1. Brake Disc 2. Front wheel axle 3. Side stand 4. Pillion foot rest L 5. Center stand* *Center stand is an optional accessary VEHICLE RIGHT SIDE 1. Seat assembly 2. Crash Guard 3. Pillion foot rest R 4.
- Page 28 VEHICLE FRONT SIDE 1. Front Position Lamp 2. Turn signal lamp front L 3. Headlamp (AHO) 4. Turn signal lamp front R VEHICLE REAR SIDE 1. Tail/ brake lamp 2. Turn signal lamp rear R 3. License plate lamp 4. Turn signal lamp rear L 5.
- Page 29 VEHICLE TOP SIDE 1. Instrument cluster 9. Bag hook (front) 2. Hazard switch 10. Charging Socket 3. Rear view mirror R 11. Horn switch 4. Right hand brake lever 12. Turn signal lamp switch 5. Throttle grip 13. Left hand brake lever 6.
- Page 30 CONTROLS...
- Page 31 Your TVS iQube comes with a pair of identical Note control keys. These keys are to operate ignition Instrument cluster background illumination, cum steering lock, fuel tank cap and seat lock. front position lamp, illuminating logo, automatic headlamp on (AHO) and tail lamp...
- Page 32 HANDLE BAR LEFT SIDE Unlocked Lever Locked Press 11. Horn switch 15. High/low beam switch Press the switch ‘ ’ to operate the horn. With the head lamp ‘ON’, press the switch towards ‘ ’ to operate head lamp high beam 12.
- Page 33 AUTOMATIC HEAD LAMP ON (AHO) 3. Hazard Switch Whenever it is necessary to park iQube in a hazardous location, press the hazard switch in ignition ‘ON’ condition to start simultaneously flashing of all turn signal lamps as to aware others of your vehicle presence.
- Page 34 Warning Always release the side stand to its full up position before moving the vehicle. TVS iQube is equipped with a effortless TOOL KIT AND FIRST AID KIT (optional accessory) centre stand. The centre stand has a pivoted flexible spring loaded...
- Page 35 Warning Caution It is recommended to use the tool kit in case of Operating the TVS iQube overloaded will any emergency only. It is always advisable to hamper riding stability and may lead to loss of take your vehicle to TVS Motor Company control.
- Page 36 UTILITY BOX LIGHT 2. Use the USB, if approved standard USB cable used for charging mobile. Utility box light illuminates the utility box and 3. Do make sure the flap is not damaged while enhance visibility inside the box when it is opening / inserting the USB cable.
- Page 38 TVS Motor Company Authorised Main Dealer. Periodic inspections may reveal one or more parts that may need replacement. Whenever replacing parts of TVS iQube, it is recommended that you use only the TVS Motor Company Genuine parts.
- Page 40 REAR BRAKE (DRUM BRAKE) - SELF MAINTENANCE 1. Measure the free play of the rear brake lever at the lever end as shown in the figure. 2. Free play of brake lever before the engagement of brake should be between 10 -15 mm. 3.
- Page 41 WARRANTY TERMS & CONDITIONS TECHNICAL SPEFICATION...
- Page 42 Authorised Main Dealer the owner’s manual for the concerned vehicle for verification of relevant details. 8. This is the only warranty given by the Company for the TVS iQube. No employee, Dealer or other persons authorised to extend or enlarge this warranty.
- Page 43 Warning Modifications to this vehicle not approved by the TVS Motor Company may cause loss of performance and render it unsafe for use and disqualifies for warranty coverage also. List of parts not covered under warranty ITEM WHAT TO CHECK FOR...
- Page 44 TVS iQube performing good. Please note that carrying out the services for your vehicle at scheduled intervals at any of the TVS Motor Company Authorised Main Dealer / Authorised Dealer is necessary for availing of warranty.
- Page 45 MANUFACTURER TVS MOTOR COMPANY LIMITED P. B. No.4, Harita, Hosur - 635 109, India. POWER TRAIN TYRE Type : Plug in EV Tyre size : Battery type : Li-ion Front : 90/90-12 54J No. of batteries : 3 Packs (Tubeless)
- Page 46 Range per charge (POW) : 55 km at full charge** Front fork oil grade : Gabriel front fork fluid Front fork oil capacity : 91 ± 1 cc Brake fluid : TVS (DOT 3 / DOT 4) Battery capacity : 2250 W.h (Approx.)** Top Speed : 78 km/h Note Ÿ...
- Page 48 TVS MOTOR COMPANY LIMITED P . B. No. 4, Harita, Hosur - 635 109, Tamil Nadu, India. Tel: +91 (4344) 276780. Fax: +91 (4344) 277311/276878. www.tvsmotor.com.
