Summary of Contents for Pyle PLMRB38B

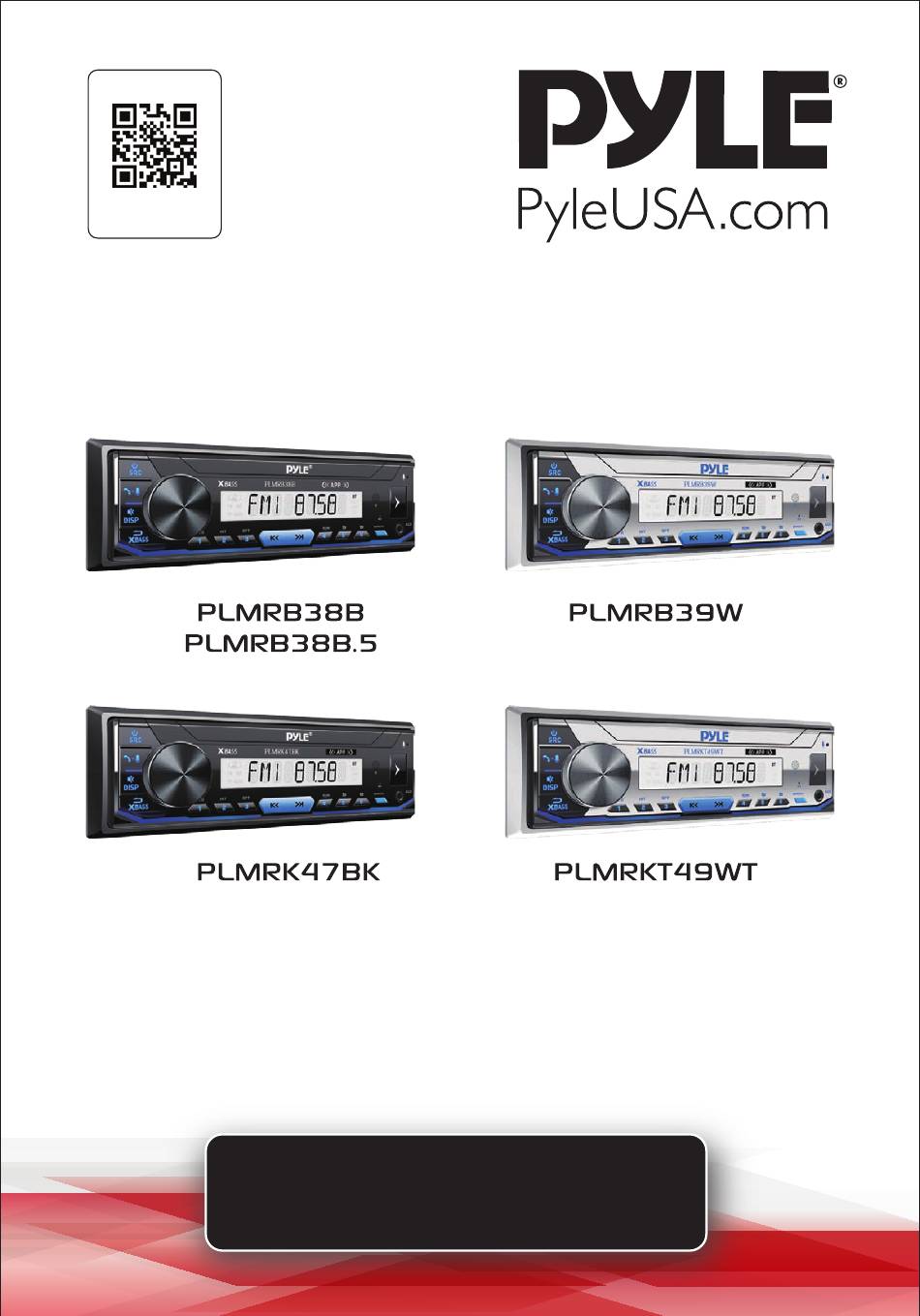

- Page 1 START HERE SCAN ME PyleUSA.com Marine Stereo Receiver Power Amplifier USER GUIDE...
- Page 2 Features: • AM/FM/MP3/USB/AUX/SD Card Reader Marine Stereo Receiver • Single DIN • LCD Display with Remote Control • Marine Stereo Receiver System • AM/FM Stereo Radio, 30 Station Memory • Wireless BT Streaming Audio Ability • USB Flash & SD Memory Card Readers •...
-
Page 3: Technical Specs
Wireless BT Connectivity: • Built-in Wireless BT Music Streaming • Built-in Microphone for Hands-Free Calling • Conveniently Reject/Answer Incoming Calls • Compatible with All of Your Favorite Bluetooth Devices (iPhone, Androids, Smartphones, iPad, Tablets, etc.) • Wireless BT Version: BT VERSION 4.2 Technical Specs: •... -
Page 4: Installation
INSTALLATION Preparation The preparation kit is necessary to mount the radio on the dashboard. This kit is available at electronics stores and car audio specialists. Check the installation kit before using it to make sure it is the right one for your vehicle. INSTALL THE DEVICE 1. -
Page 5: Wiring Connections
WIRING CONNECTIONS WIRING DIAGRAM AMPLIFIER OUTPUT Power/speaker Connector FUSE 10A White: Front Output Left Red: Right Front Output Rear RCA Output (Right) Rear RCA Output (Left) ANT: RADIO ANTENNA JACK F-L: Front RCA Output (Left) PRECAUTION F-R: Front RCA Output (Right) +12V DC R-L: Rear RCA Output (Left) NEGATIVE... -
Page 6: General Operation
CONTROL PANEL BUTTONS (Power)/MODE (source) button 2. SEL (select/menu) button and VOL (volume) knob 3. Back to the previous con guration point /Bass enhances the pulse function Press In power-on mode, press the MUTE button to toggle mute ON or OFF /DISP (CLK) button (Pause/Start), Button 1 preset station 6. - Page 7 (volume), DX/LOC, STEREO/MONO, CLOCK 12/24, BLUE/RED/CYAN/GREEN/ PURPLE/YELLOW/WHITE/AUTO. Turn the VOL knob on the front panel or press the VOL+ /VOL- buttons on the remote control to set the selected item. Press the SEL button to select SWE (subwoofer), then rotate the knob to select ON/OFF. Press the SEL button, then press the BAND button to enter the 10EQ control •...
-
Page 8: Radio Operation
GENERAL OPERATION Preset Equalizer (EQ) Press the EQ button on the front panel or on the remote control to switch between EQ settings: OFF, CLASS, ROCK, POP, and FLAT. USB Port The USB port on this stereo device is designed for playing media from USB memory devices. - Page 9 Memorize a Station Turn the radio on and select the desired band and station. • Select a station using the button. • Press and hold the desired preset button (numbered 1-6 on the face of the • radio) for more than 2 seconds to save the station to that preset number. To Recall a Preset Station Select the desired band.
- Page 10 EJECT/USB/SD To eject a USB device, press the button to stop playback, then remove the • USB device. To eject an SD card, press the button to stop playback, press the button to • release and remove the front panel, then remove the SD card from the chassis. Play/Pause Press the (play/pause) button to pause or resume playback.
-
Page 11: Auxiliary Input Operation
To begin pairing, enable BT mode on your mobile phone. 2. When the phone nds this ship/car audio system, the name “PYLE” will be displayed. 3. Choose “PYLE” from the device list to pair and connect with this ship/car audio system. - Page 12 Make a Call To make a call, dial the number directly from the paired mobile phone. • To make a call with this Wireless BT hands-free system: • a. When linking the Wireless BT-enabled mobile phone to this BT hands-free system, press the button to access the dial telephone number mode, then press the “0~9, ”...
-
Page 13: Remote Control
Audio Streaming (A2DP) /MODE button to enter BT mode, and the display will show "Pause" 1. Press the on the LCD. 2. When a mobile device is paired, music played through that device will automatically be heard through the car audio system. 3. - Page 14 Remove Insulating Sheet The remote control comes with an insulating sheet attached to the underside. The remote control will not work until the insulating sheet is removed. Replace Lithium Battery Cell 1. When the lithium cell battery becomes weak, replace it as illustrated. 2.
-
Page 15: Troubleshooting
TROUBLESHOOTING If you suspect something is wrong, immediately switch o the power. Do not use the unit in abnormal conditions, such as when there is no sound, smoke, or a foul smell, as this can cause re or electric shock. Stop using it immediately and contact the store where you purchased it. -
Page 16: Push To Talk
Radio 1. Much noise in broadcasts. Station or signal is too weak. Select other stations with stronger signal levels. 2. The antenna cable is not connected. Insert the antenna cable rmly into the antenna socket of this receiver. 3. Preset station is reset. Battery cable is not correctly connected. -
Page 17: Register Product
PYLE APP PYLE Smart App is the ultimate in remote technology for your PLMRB38B, PLMRB39W, PLMRK47BK, and PLMRKT49WT. Download the PYLE Smart app from Google or Apple Store and install it on your phone or tablet. Scan the QR code to download the PYLE Android App. - Page 18 Questions or Comments? We are here to help! Phone: 1.718.535.1800 PyleUSA.com/ContactUs...
Need help?
Do you have a question about the PLMRB38B and is the answer not in the manual?
Questions and answers
What is the blue wire for and what do I hook to it on Pyle plmrb38b
The blue wire on the Pyle PLMRB38B is the battery cable. It should be connected to a terminal that is always live (provides constant power) to retain preset station memory and proper function.
This answer is automatically generated
