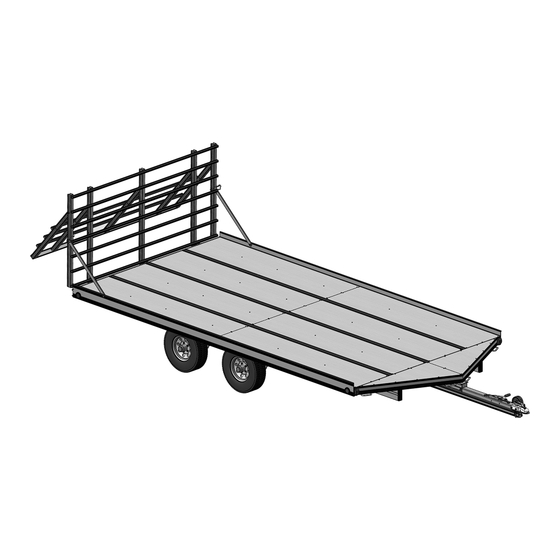

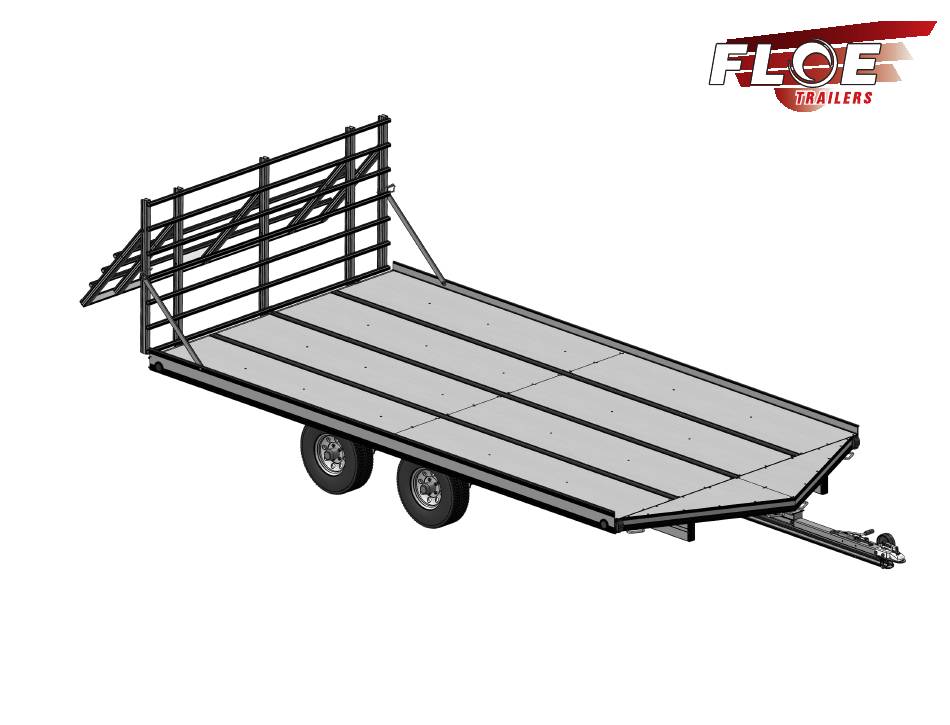

FLOE 100" WIDE TRAILER BI-FOLD RAMP
P/N 549-00545-00
ASSEMBLY INSTRUCTIONS
P/N 649-00545-00
ISSSUE DATE 7/19/23
Tools Required:
-Drill
-Tape Measure
-7/16" Drill Bit
-17/32" Drill Bit
-(2) 9/16" Wrench
-(2) 3/4" Wrenches or Sockets
Manufactured by:
Floe International
48473 State Hwy 65
McGregor, MN 55760
www.floeintl.com
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Floe 549-00545-00
Summary of Contents for Floe 549-00545-00
- Page 1 FLOE 100” WIDE TRAILER BI-FOLD RAMP P/N 549-00545-00 ASSEMBLY INSTRUCTIONS Tools Required: -Drill -Tape Measure -7/16” Drill Bit -17/32” Drill Bit -(2) 9/16” Wrench -(2) 3/4” Wrenches or Sockets Manufactured by: Floe International 48473 State Hwy 65 P/N 649-00545-00 McGregor, MN 55760 ISSSUE DATE 7/19/23 www.floeintl.com...
- Page 2 INSTALLATION INSTRUCTIONS: Step 1 Slide ramp onto the back rail of the trailer. Align the center of the middle hinge with the center of the trailer. Using the hinge as a guide, make a mark on the top rail of the trailer directly in the middle of the hole of the hinge.
- Page 3 FLOE 100” WIDE TRAILER BI-FOLD RAMP EXPLODED VIEW...
