OWNER'S MANUAL

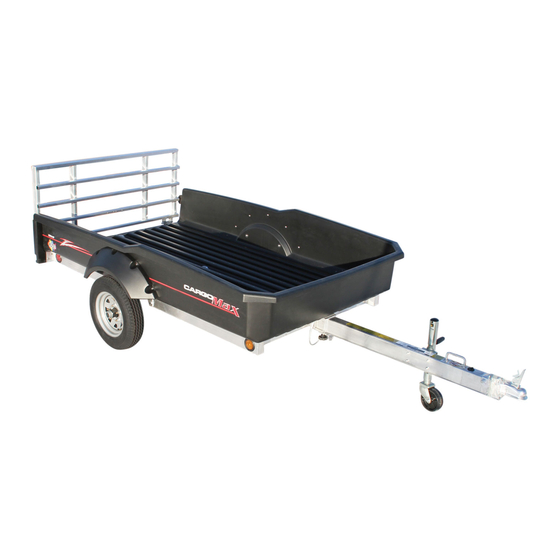

THE ULTIMATE
"GRAB AND GO"
TRAILER!
All trailer users should watch the 4 minute Basic Operations video prior to using trailer.
Go to www.floeintl.com/manuals-information and click on "Play Video".
Retain this manual for future reference.
ATTENTION
ATTENTION
ATTENTION
Read and follow all safety rules and operating instructions carefully before using trailer.
Serious injury, potential death and/or mechanical failure could result from neglecting to take appropriate action.
P/N 500-95030-00 2014-2019
1/30/20
1
