ASSEMBLY AND MOUNTING INSTRUCTIONS
GENERAL
•
WARNING-ALWAYS UNPLUG THE LAMP TO CUT ELECTRIC
POWER OFF BEFORE INSTALLING, CLEANING, OR OTHER
MAINTENANCE.
•
FAILURE TO INSTALL FIXTURE CORRECTLY COULD RESULT IN
SERIOUS INJURY OR DEATH
INSTALLATION
STEP 1.
Un-wrap fixture and screw on the bottom stem to the arm
fitting
STEP 2. Remove the mounting plate from the backplate
STEP 3. Determine the location for the lamp. Using the mounting
plate as a template, mark the location of the holes for the
wall anchors.
STEP 4. Drill the appropriate size holes for the wall anchors (holes
should be slightly smaller than the size of the anchors).
STEP 5. Install the wall anchors, and anchor screws.
STEP 6. Install the mounting plate to the anchor screws using the
key slot
STEP 7. Place the fixture to the wall over the mounting plate and
secure using the set screws.
STEP 8. Install the lamp(s). The fixture is rated for 4 watt G9 LED
CLEANING
Please clean with a soft, dry cloth ONLY! Do not use cleaning products

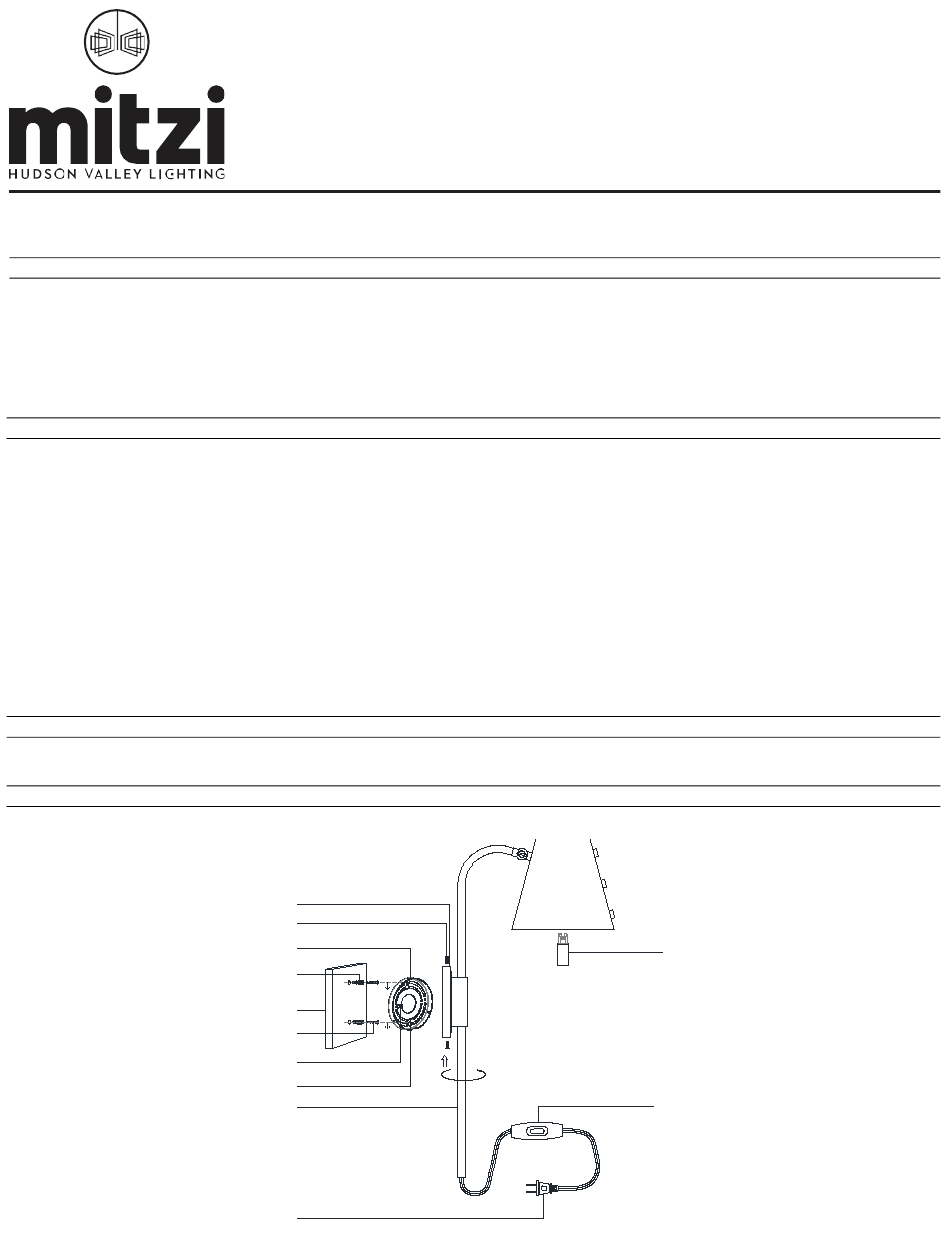

ASSEMBLY AND MOUNTING DIAGRAM
BACKPLATE
SETSCREW
MOUNTING PLATE
WALL ANCHOR
WALL
ANCHOR SCREW
GROUND SCREW
KEY SLOT
STEM
PLUG
www.hudsonvalleylighting.com/mitzi
HL174101 META PORTABLE WALL SCONCE
•
READ ALL INSTRUCTIONS BEFORE STARTING INSTALLATION.
•
BEFORE DISCARDING THE CARTON DOUBLE CHECK THE
PACKAGING TO MAKE SURE ALL PARTS HAVE BEEN FOUND.
lamp.
DO NOT EXCEED RECOMMENDED WATTAGE!
STEP 9. Plug cord into a qualified socket of properly rated
voltage.
IMPORTANT SAFETY INSTRUCTION: THIS PORTABLE
LAMP HAS A POLARIZED PLUG (ONE BLADE IS WIDER
THAN THE OTHER). THIS PLUG CAN BE USED IN A
POLARIZED OUTLET ONLY ONE WAY. IF THE PLUG
DOES NOT FIT FULLY INTO THE OUTLET, REVERSE THE
PLUG. IF IT STILL DOES NOT FIT CONTACT A
QUALIFIED ELECTRICAN. NEVER USE WITH AN
EXTENSION CORD UNLESS THE PLUG CAN BE FULLY
INSERTED. DO NOT ALTER THE PLUG
LAMP
ON/OFF SWITCH
| #mymitzi
