ComAp flamco NexusValve Installation And Operating Instruction

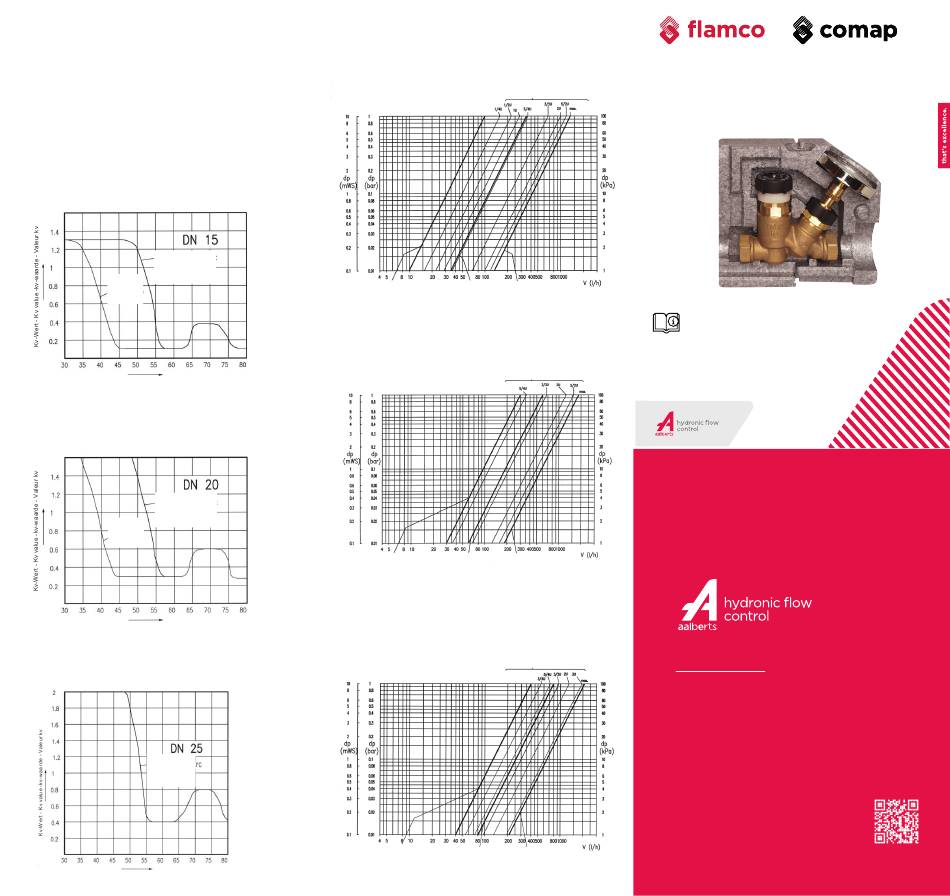

Kennlinie / Characteristic curve / Karakteristiek /
Courbe caractéristique
Kennlinie – Kv-Wert in Abhängigkeit von der
Wassertemperatur bei Werkseinstellung 43°C bzw. 57°C
Characteristic curve for Kv value depending on the water
temperature at a factory setting of 43°C or 57°C
Karakteristiek voor Kv-waarde afhankelijk van de
watertemperatuur bij een fabrieksinstelling van 43°C of 57°C
Courbe caractéristique de la valeur Kv en fonction de la
température de l'eau réglée en usine à 43°C ou 57°C
DN15
Regelbereich
Control range
Regelbereik
Regelbereich Zone de régulation
Control range 50-60°C
Regelbereik
Zone de régulation
30-50°C
Wassertemperatur - Water temperature - Watertemperatuur
température de l'eau
DN20
Regelbereich
Control range
Regelbereik
Zone de régulation
Regelbereich
50-60°C
Control range
Regelbereik
Zone de régulation
30-50°C
Wassertemperatur - Water temperature - Watertemperatuur
température de l'eau
DN25
Regelbereich
Control range
Regelbereik
Zone de régulation
50-60°C
Wassertemperatur - Water temperature - Watertemperatuur
température de l'eau
Durchfluss-Diagramme / Flow Diagram /
Stroomdiagram / Diagramme de débit
DN15
Flow diagram for circulation valve DN15 Max. flow values following manual
adjustment via the shut-off spindle with
Control range 50-60°C (according to DVGW VP554) rotation starting from the closed point.
Flow during disinfection
Max. flow at temperatures below
Minimum flow Kvmin = 0.1
mode KvTD = 0.35
50°C Kvmax = 1.3
DN20
Flow diagram for circulation valve DN20
Max. flow values following manual
adjustment via the shut-off spindle with
Control range 50-60°C (according to DVGW VP554) rotation starting from the closed point.
Flow during disinfection Max. flow at temperatures below
Minimum flow Kvmin = 0.3
mode KvTD = 0.6
50°C Kvmax = 1.85
DN25
Flow diagram for circulation valve DN25
Max. flow values following manual adjustment
via the shut-off spindle with rotation starting
Control range 50-60°C (according to DVGW VP554)
from the closed point.
Minimum flow
Flow during disinfection mode Max. flow at temperatures below
Kvmin = 0.4
KvTD = 0.8 50°C Kvmax = 2.1
We reserve the right to make changes to the designs and technical specifications of our products.

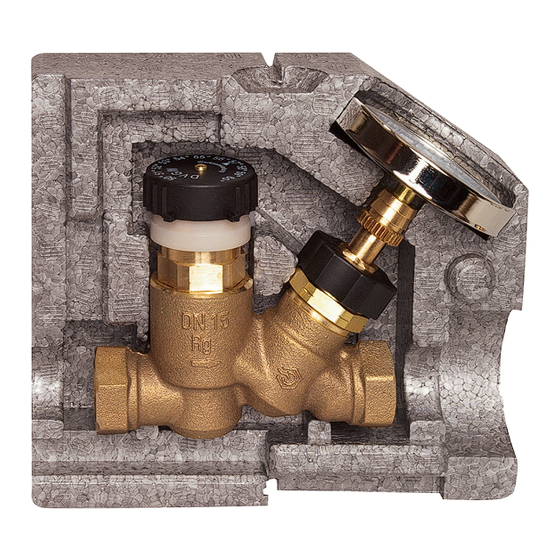

NexusValve
Thermostatisch gesteuertes Zirkulationsventil
Thermostatically controlled circulation valve
Thermostatisch geregelde circulatiepomp
Vanne de circulation à commande thermostatique
ENG Installation and operating instruction
DEU Montage- und Bedienungsanleitung
NLD Montage- en bedieningsinstructies
FRA Installation et mode d'emploi
