CM2-4G-GPS Quick Guide
CM2-4G-GPS plug-in module is a 2G/3G/4G cellular modem in combination with a GPS/GLONASS receiver.
The cellular modem can work in two modes of operation based on the settings in the setpoint Internet
Connection.
IMPORTANT: Any manipulation with plug-in module shall be done with disconnected power
supply to controller.
CM2-4G-GPS module setup
1. You will need a controller, CM2-4G-GPS module, antenna and SIM card with SMS and packet data
service.
Note: Make sure that your SIM supports the packet data network type you want to use. – i.e. if you
want to use the module in LTE (4G) network you have to confirm with the operator that the particular
SIM card supports 4G network.
2. Contact your mobile operator for getting packet data APN (APN = Access Point Name).
Note: Typical APN name is "internet".
3. Make sure SIM card does not require PIN code. Use any mobile phone to switch the SIM PIN security off.
4. Place the SIM card into slot on CM2-4G-GPS card.
5. Connect the antenna to Cellular module antenna connector. Use secondary "diversity" antenna if you
have troubles with signal/connection quality.
6. If you want to use the built-in GPS receiver connect also an active GPS antenna to the GPS antenna
connector.
7. Switch off the controller. Insert CM2-4G-GPS module into controller.
8. Power up the controller.
9. Select the required operation mode of CM2-4G-GPS module by adjusting setpoint Internet Connection.
10. Enter correct APN Name into the setpoint Access Point Name.
11. Adjust AirGate key in InteliConfig.
12. Wait for approx 2 – 4 minutes for first connection of the system to AirGate. AirGate will generate
automatically the AirGate ID value. Then navigate to measurement screens where you will find signal
strength bar and AirGate ID identifier.
CM2-4G-GPS Quick Guide

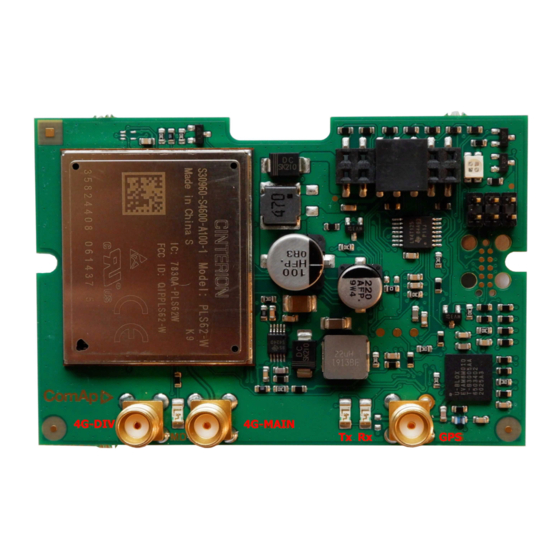

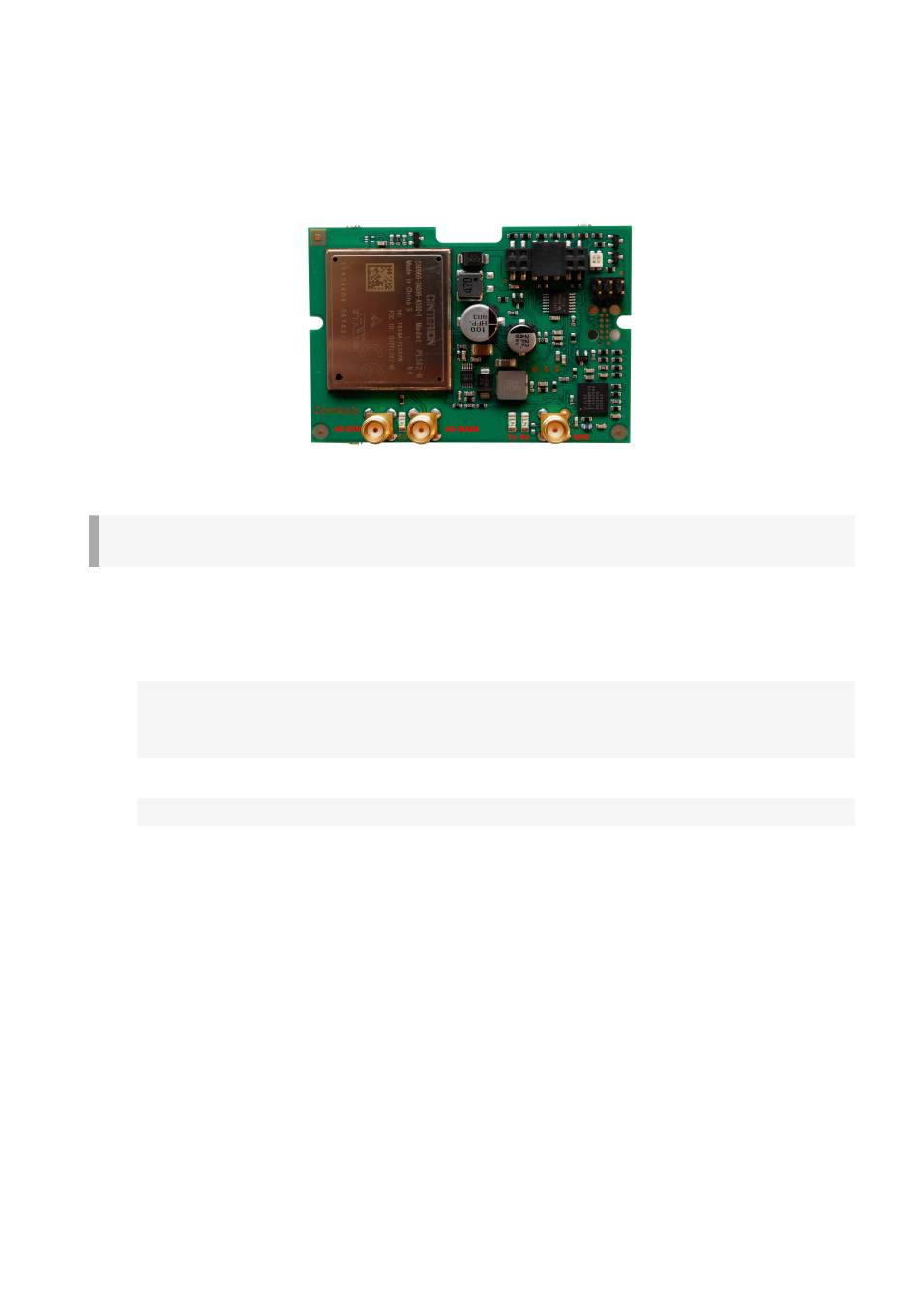

Image 1.1 CM2-4G-GPS module
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the CM2-4G-GPS and is the answer not in the manual?

Questions and answers

Related Manuals for ComAp CM2-4G-GPS

Summary of Contents for ComAp CM2-4G-GPS

  • Page 1 CM2-4G-GPS module setup 1. You will need a controller, CM2-4G-GPS module, antenna and SIM card with SMS and packet data service. Note: Make sure that your SIM supports the packet data network type you want to use. – i.e. if you want to use the module in LTE (4G) network you have to confirm with the operator that the particular SIM card supports 4G network.

  • Page 2: Modem Status

    Modem hardware configuration error E conn lost Loss of connection with cellular network Modem configuration error Restart-config Modem was restarted due to the change of controller setpoint Restart-app Modem was restarted due to the performed cellular connection check CM2-4G-GPS Quick Guide...
  • Page 3 1. Make sure controller has link to Internet a. CM3-Ethernet is connected to LAN infrastructure, has an IP address and access to Internet b. CM2-4G-GPS is connected to a mobile operator (preferably to 3G/4G network) and has an IP address 2.
  • Page 4 Conn operable to any other one. Indicated when the service is enabled but suspended due to empty AirGate key. Susp Note: If you see this status message you have to adjust AirGate Key as per AGkeyEmpty instructions above. CM2-4G-GPS Quick Guide...

  • Page 5: Firmware Upgrade

    SMTP Encryption = NONE Firmware upgrade Download the newest FW of module from ComAp website (in form of PSI file or installation package) Instal package to computer or open PSI to instal it into InteliConfig Plug the module into the controller and power the controller on.
  • Page 6 The firmware update process may be performed via any kind of connection including connection via the same module in which the firmware is to be updated. The connection is reestablished again automatically when the update process is finished. Note: For more information see InteliLite 4 Global Guide on www.comap-control.com. CM2-4G-GPS Quick Guide...

  • Page 7: Plug-In Module Installation

    After locking the plug-in module into holders, place back the back cover (small cover for connectors has to be removed from back cover). Finally insert the small cover for connectors. Small covers are unique for each plug-in module. CM2-4G-GPS Quick Guide...
