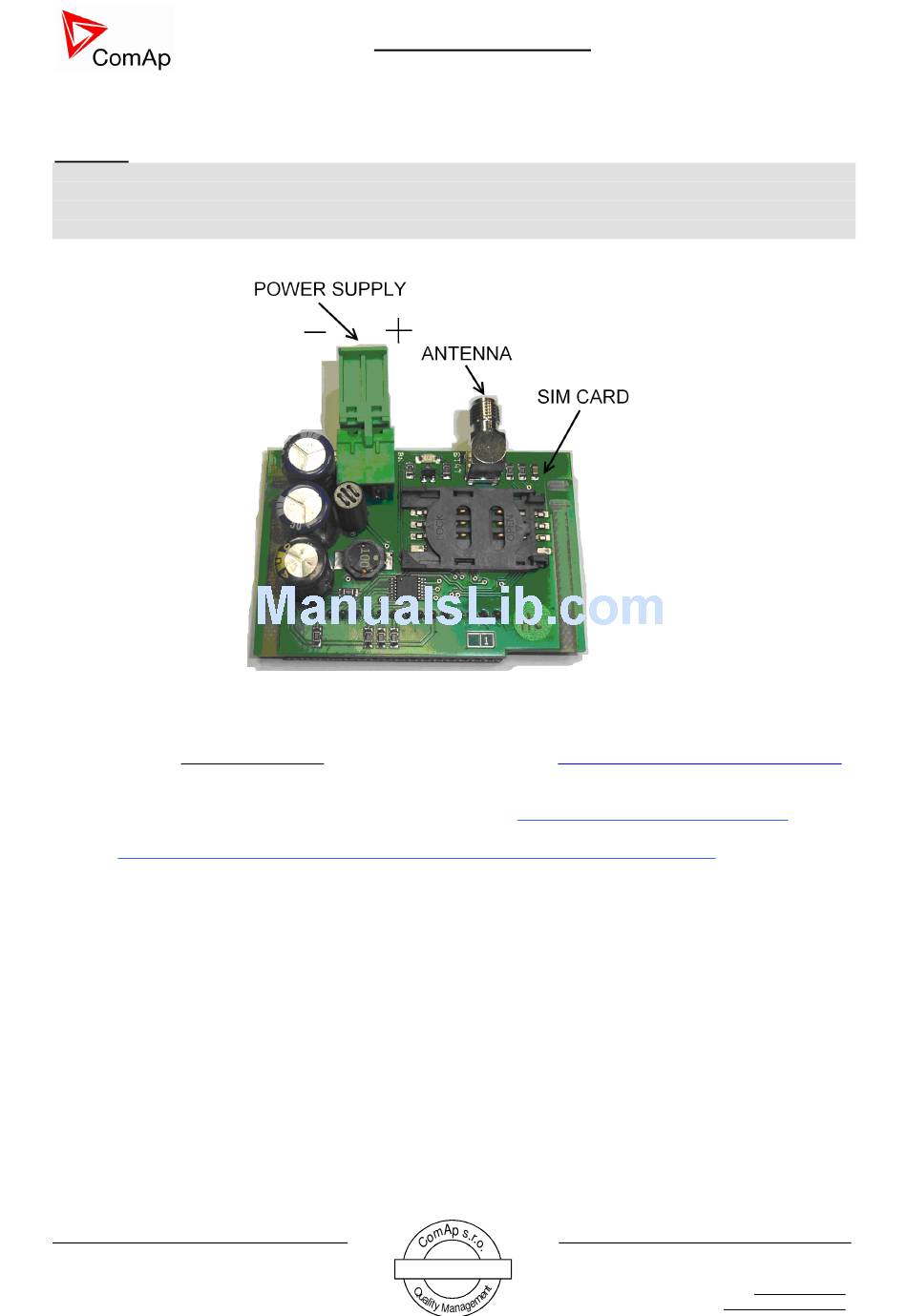

Short guide how to start using IL-NT-GPRS module
C
!:
AUTION
Any manipulation with plug-in module shall be done with disconnected power supply to both controller and
module. Power supply shall be switched on also is same time to both module and controller. Fail to follow
these instructions (power supply active only in controller or only in module) can lead to module or controller
failure!
1. You will need one of supported ComAp controllers (IL-NT/IC-NT/ID-Lite), IL-NT-GPRS, antenna,
SIM card with GPRS service and optionally IL-NT-RS232 or IL-NT-S-USB module. Firmware
supporting IL-NT-GPRS module is IL-NT 2.0 or IL-NT-WSUP or selected customer branches
(contact support@comap.cz for details). It is available here:
NT-GPRS/support/software/
2. Contact SIM card operator for getting GPRS APN (APN = Access Point Name) name, username
and password. Some operator's APNs are listed here:
settings.html#Australia
http://www.flexispy.com/Mobile%20APN%20Setting%20to%20use%20GPRS.htm
Example: APN Name = internet.t-mobile.cz, UserName = [blank], Password = [blank].
3. Make sure SIM card does not require PIN code. If it does, it is possible to disable it in any common
network unlocked mobile telephone.
4. Power up the ComAp controller.
5. Enter correct APN Name, APN UserName and APN UserPass in controller's setpoint group Comms
Settings. Set COM1 Mode = DIRECT. Comms settings as every sepoint group are accessible by
PAGE button from any measurement screen on controller. Setpoints can be set on controller's front
panel keyboard or by LiteEdit 4.5 and higher.
6. Switch off ComAp controller.

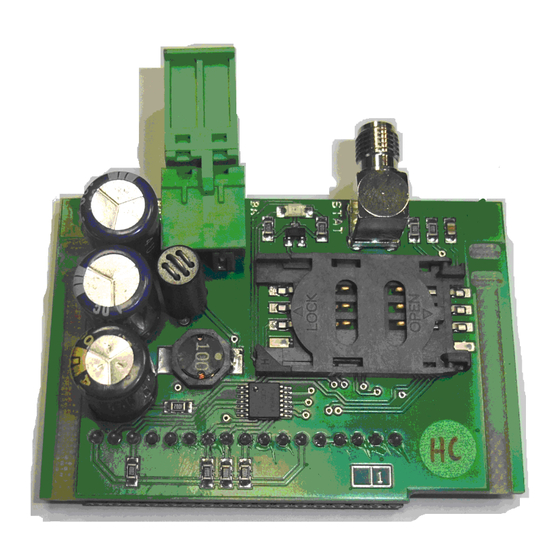

7. Place the SIM card into slot on IL-NT-GPRS card, plug in the IL-NT-GPRS card into communication
slot on back side of ComAp controller.
8. Connect the antenna to designated SMA connector.
9. Connect power supply to IL-NT-GPRS module. It supports 8-36V DC voltage.
10. Power up the system (Controller and module together).
IL-NT-GPRS Quick Guide / ©ComAp – May 2012 / IL-NT-Quick Guide 5-2012.pdf
ComAp, spol. s r.o.
Kundratka 2359/17
180 00 Prague 8
Czech Republic
IL-NT-GPRS Quick Guide
or here:
ISO 9001 Certified
http://www.comap.cz/products/detail/IL-
http://www.quickim.com/support/gprs-
Internet: http://www.comap.cz
Page 1 of 4
Tel.: +420 246 012 111
Fax: +420 246 316 647
E-mail: info@comap.cz
