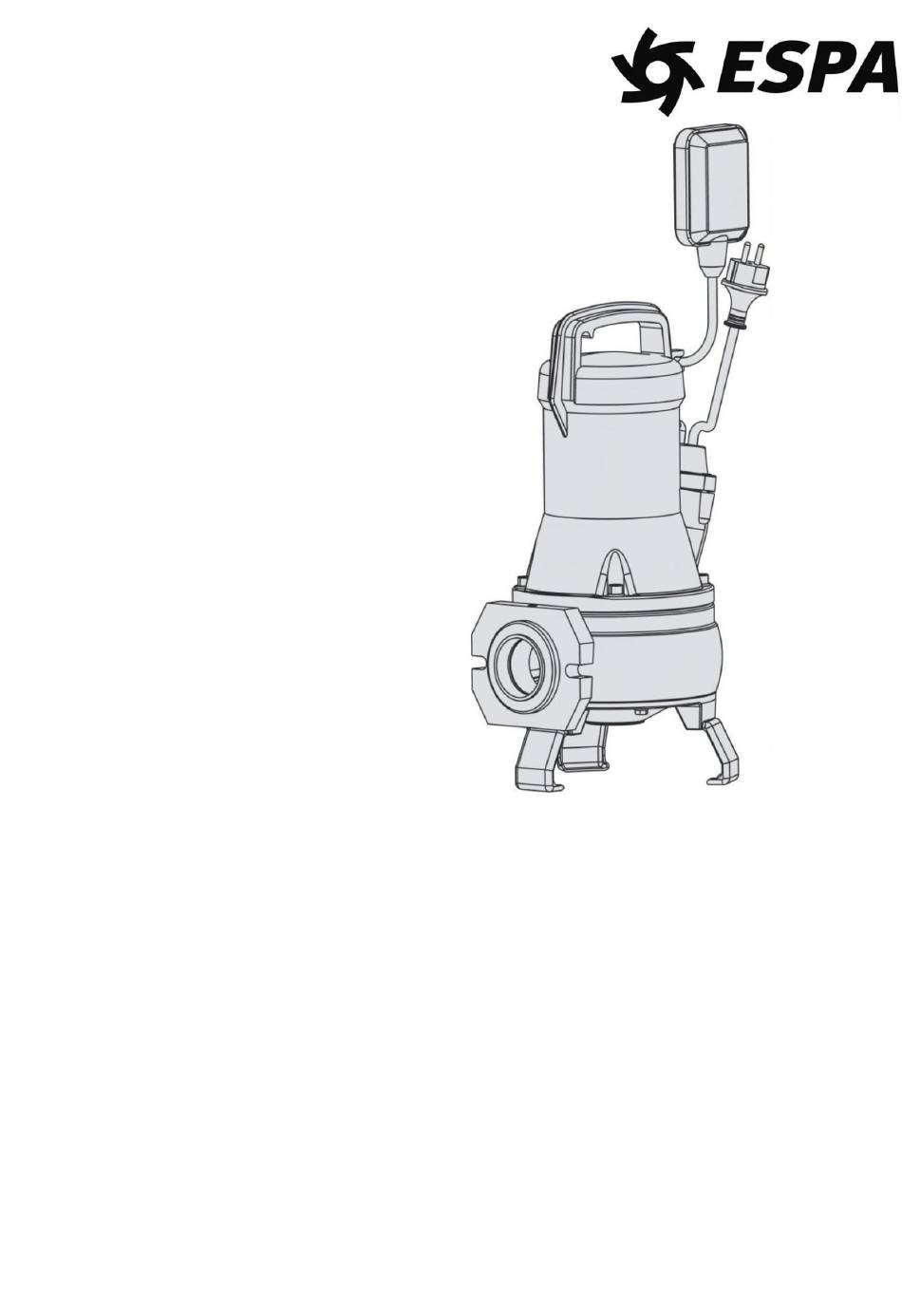

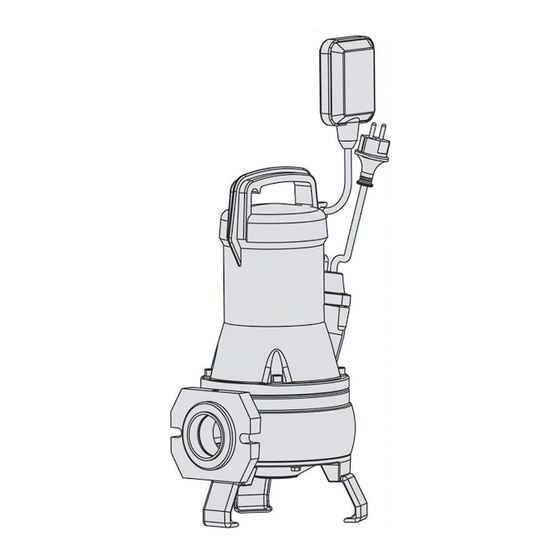

- Page 1 DRAINEX 200/300 DRAINCOR Instruction manual (Translation from the original Spanish)
- Page 2 - The Restriction of the Use of Certain Hazardous Substances in Electrical and Electronic Equipment Regulations 2012. Standard BS 50581. Banyoles, January 13th 2021 Josep Unyó (Technical Manager) ESPA 2025, SL Ctra. de Mieres, s/n – 17820 Banyoles Girona - Spain...
- Page 3 INSTRUCTION MANUAL (Translation from the original Spanish) Damage prevention and safety instructions (See figure 5) A Warning! Observe limitations of use. The name plate voltage must be the same as the mains voltage. Connect the pump to the mains via an omnipolar switch with at least a 3 mm opening between contacts.
-
Page 4: General Information
Contents The pump cannot be used in a swimming- Safety precautions..........10 pool while there are people bathing. . General information...........11 Do not put your hand or any object into the . Handling.............11 suction or discharge mouth, since the . Installation ............11 rotating impeller could cause serious injury or 3.1. -
Page 5: Maintenance
All main components are material identified to allow selective disposal. This product or parts of it must be disposed of in an environmentally sound way, waste collection service. If this is not possible, contact the nearest ESPA service workshop. -
Page 6: Technical Data
8 . POSSIBLE FAULTS, CAUSES AND SOLUTIONS The pump does not start. Pump runs but there is no flow. Pump stops automatically. Pump does not deliver rated capacity. 1 2 3 4 POSSIBLE PROBLEM SOLUTIONS Lack of electricity Replace fuses or switch RCCB (30mA) Improper thermal protection Switch thermal protector or check that voltage is correct... - Page 7 Cable Kabel Cavo Motor casing Motorgehäuse Carcassa del motore Capacitor Kondensator Condensatore Impeller Laufrad Girante Pump casing Corpo della pompa Pumpengehäuse Suction cover Coperchio, lato aspirante Saugdekel Foot Piede Motor shaft Motorwelle Albero del motore Bearing Wälzlager Cuscinetto Interstage casing Corpo intermedio Zwischengehäuse Mechanical seal...
- Page 8 Fig.1...
- Page 9 Fig.2 1. BLACK 2. BLUE 3. BROWN Fig.3...
- Page 10 Fig.4 Fig. 5...
