PIAB piPUMP 10 Series Manual

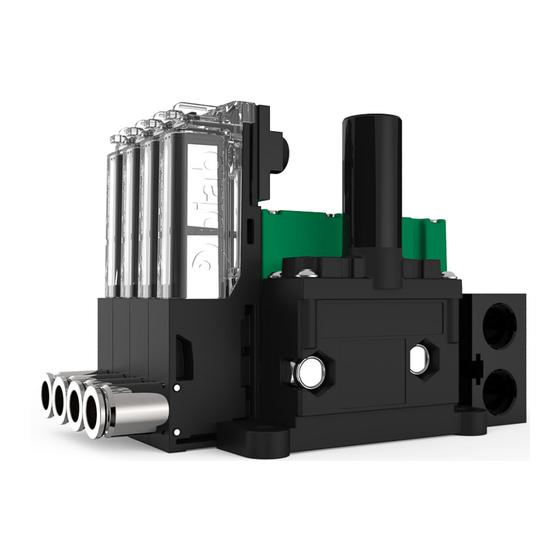

Compact/stackable vacuum pump
Hide thumbs

Advertisement

Table of Contents

MANUAL
piPUMP 10X
Original manual language is English.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the piPUMP 10 Series and is the answer not in the manual?

Questions and answers

Related Manuals for PIAB piPUMP 10 Series

Summary of Contents for PIAB piPUMP 10 Series

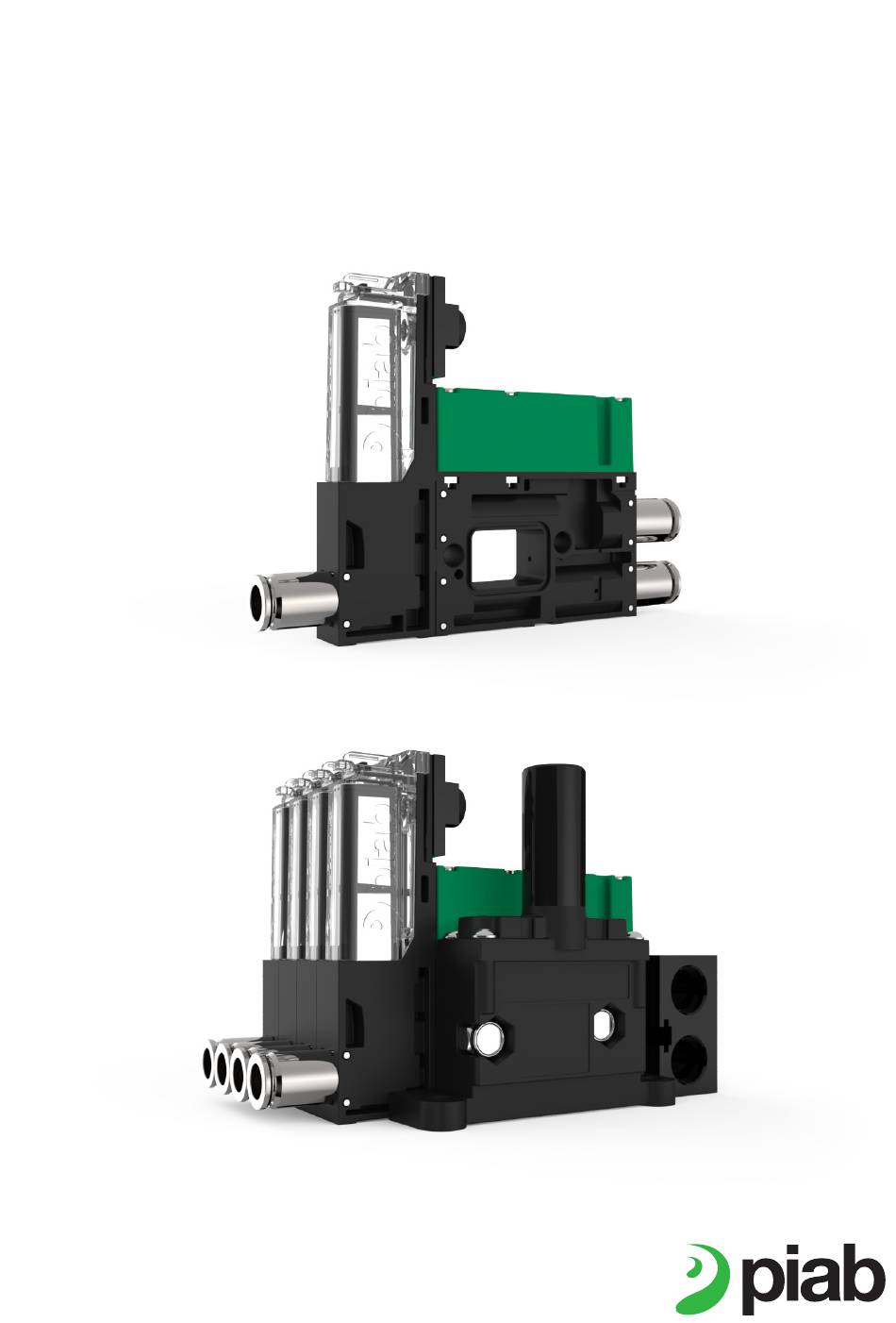

  • Page 1 MANUAL piPUMP 10X Original manual language is English.
  • Page 2 FEATURES ► Configurable vacuum ejector based on COAX technology ® ► Optimized design for high reliability ► Slim package (10mm width) and light weight thanks to high-performance plastic parts...

  • Page 3: Intended Use

    piPUMP 10x INTENDED USE ► The product shall be used to evacuate air (non liquids) from a volume to create vacuum for gripping, holding and processes ► The product can be used to blow air for surface cleaning and to remove vacuum from a volume ►...
  • Page 4 piPUMP 10x OVERVIEW 1 channel...
  • Page 5 piPUMP 10x 2-3 channels...
  • Page 6 piPUMP 10x 4 channels...
  • Page 7 piPUMP 10x Pos. Description Vacuum connection block Vacuum filter kit Central exhaust Mounting bracket Only for 2-4 channels 1x COAX cartridge / 2x COAX cartridge ® ® Silencer Filter filler Common feed Only for 2-4 channels Connections Pos. Description Size Ø4 / Ø6 / ؼ’’...
  • Page 8 piPUMP 10x...

  • Page 9: Pneumatic Installation

    piPUMP 10x PNEUMATIC INSTALLATION piPUMP 10x can be installed in any orientation. Ensure that the exhaust from the ejector is not blocked. When connecting oil free compressed air and vacuum hoses to the unit, it is important to choose proper pipe dimensions to prevent pressure drops. Avoid restrictive inner diameters, long piping distances, sharp bends and small sized connections.

  • Page 10: Pneumatic Diagram

    piPUMP 10x Pneumatic diagram 1. Compressed air, 2. Vacuum, 3. Exhaust Without non-return valve • • With non-return valve • •...
  • Page 11 piPUMP 10x Clean room installation (2-4 channels) For clean room installation mount the hose on the exhaust with a hose clamp. Note: the quality of the compressed air shall fulfil the requirements in DIN ISO 8573-1 class 4.
  • Page 12 piPUMP 10x MOUNTING 1 channel 4.21  0.17" 1.02"...
  • Page 13 piPUMP 10x MOUNTING 1 channel 34.5 0.94" 1.36" 18.5 1.97" 0.73" 1.97"...
  • Page 14 piPUMP 10x 2 channels with central exhust / silencer with mounting bracket 34.5 0.94" 1.36" 18.5 1.97" 0.73" 1.97"...
  • Page 15 piPUMP 10x 3 channels with central exhust / silencer 0.94" with mounting bracket 34.5 0.94" 1.36" 1.97" 18.5 1.97" 0.73"...
  • Page 16 piPUMP 10x 4 channels 0.94" 0.94" with central exhust / silencer 1.97" 1.97" with mounting bracket...
  • Page 17 piPUMP 10x Spare parts Art. No Description 0201747 Filter element FM10-50, 5 pcs- piCOMPACT 10x/piPUMP 10x ® 0201748 Filter holder kit FM10-50- piCOMPACT 10x/piPUMP 10x ® 0201737 Spare Part Kit piCOMPACT 10x/piPUMP 10x ® 0106966 COAX cartridge MICRO Bi03-2 ® 0113591 COAX cartridge MICRO Si02-2...
  • Page 18 piPUMP 10x Replacements for COAX cartridge, filter and non-return valve ® Pull knob to the left to release filter Remove filter holder holder Unscrew the torx Remove the COAX cartridge house ® 10 cNm [14 in oz]...

  • Page 19: Cleaning Instructions

    piPUMP 10x Remove the COAX cartridge ® Cleaning instructions For COAX® cartridge, filter and non-return valve Rinse in water or use compressed air to blow off. Let dry before reinstalling.
  • Page 20 piPUMP 10x Technical data (per channel) Pneumatic technical information Unit COAX ® Bi03-2 Xi2.5-2 Si02-2 Ti05-2 Opt. feed pressure, 0.20 0.50 0.60 0.40 nozzle [psi] [29.0] [72.5] [87.0] [58.0] Max vacuum at opt. -kPa pressure [-inHg] [24.2] [26.9] [22.1] [24.8] Air consumption at Nl/s 0.14...
