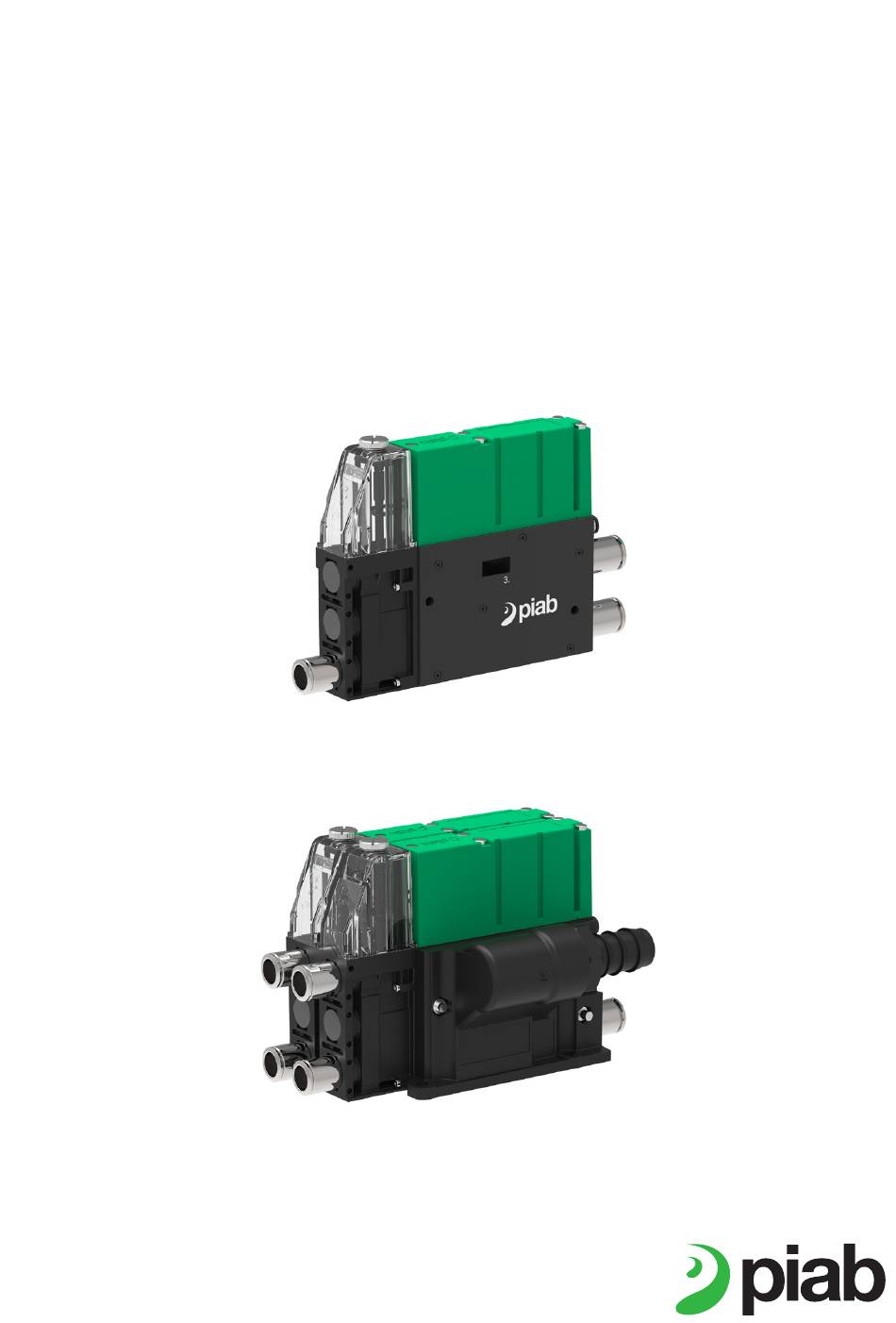

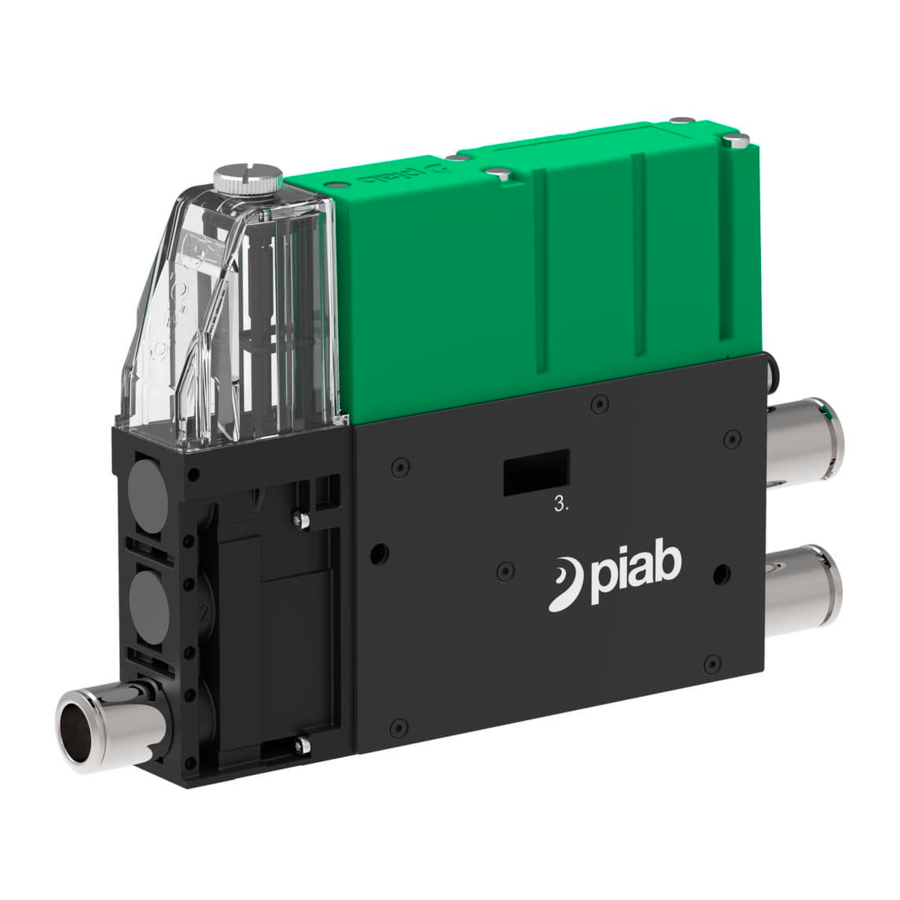

- Page 1 MANUAL piPUMP 23 Original manual language is English.
-
Page 3: Table Of Contents
23 CONTENTS Features ....................4 Indended use and misuse..............5 Overview....................6 Installation.....................11 Mounting....................13 Maintenance..................14 Technical data..................18... -
Page 4: Features
23 FEATURES ► Flexible configuration options to perfectly match application needs. ► Configurable vacuum ejector based on COAX technology with integrated controls. ® ► Optimized design for high reliability and fast cycle times. -
Page 5: Indended Use And Misuse
23 INTENDED USE ► The product shall be used to evacuate air (non liquids) from a volume to create vacuum for gripping, holding and processes ► The product can be used to blow air for surface cleaning and to remove vacuum from a volume ►... -
Page 6: Overview
23 OVERVIEW 1 channel... - Page 7 23 2 channels...
- Page 8 23 3-4 channel...
- Page 9 23 Pos. Description Note Vacuum connection block Vacuum filter 1x COAX cartridge / 2x COAX cartridge ® ® Exhaust on the side,G 3/4” Gable threads Side mounted silencer/ Top mounted silencer Connections Pos. Description Size Push-in: Ø6 / Ø1/4’’ / Ø8 (Ø5/16’’) / Compressed air Ø10 / Ø3/8”...
- Page 10 23 Pneumatic diagrams Note: Filter is optional 1. Compressed air, 2. Vacuum, 3. Exhaust...
-
Page 11: Installation
23 INSTALLATION WARNING! Do not install or operate your piPUMP 23 if damaged during transport, handling or use. Damage may result in bursting and cause injury or property damage. Pneumatic installation piPUMP23 can be installed in any orientation. Ensure that the exhaust from the ejector is not blocked. - Page 12 23 Minimum recommended hose diameter, outer/inner diameter Car- Vacuum Compressed air Compressed air Compressed air tridge 1 channel 2 channel 3-4 channel Inches Inches Inches Inch- SX12 2x 8/6 5/16 5/16 5/32 5/16 SX12 x2 10/8 * 10/8 2x 10/8...
-
Page 13: Mounting
23 MOUNTING Side mounting 1 channel 2.953" 0.157" 1 channel 1.654" 2.953" 2 channels 1.654" 2.953"... -
Page 14: Maintenance
23 MOUNTING 3-4 channels 2.953" Unit 3 channels 4 channels 89 [3.50’’] 112 [4,4’’] [in] MAINTENANCE Before installation and when maintaining the piPUMP23 check the product and attachment for damages or wear (such as hoses, hose clamps, clips etc) and replace the damage or worn parts... - Page 15 23 MAINTENANCE Exploded view Spare parts Art. No Description 0205487 Filter element FM23-50, 4 pcs-piCOMPACT 23/piPUMP 23 ® 0205572 Filter holder kit FM23-50-piCOMPACT 23/piPUMP 23 ® 0205573 Filter holder kit FM23L-50-piCOMPACT 23/piPUMP 23 ® 0205484 Spare Part Kit-piCOMPACT 23/piPUMP 23 ®...
- Page 16 23 Replacement of piPUMP 23 filter(s) Release screw on top of filter to re- Lift up filter holder and filter. lease filter holder and filter. Release the screw completely to When the filter is out, check that no remove old filter from filter holder.
- Page 17 COAX . Use Klüber- ® synth UH1 14-151 or similar grease. 70 Ncm [99 in oz] Note: when your piPUMP 23 is configured with a top mounted silencer, remove the top mounted silencer (three screws) before demounting the chip house.
-
Page 18: Technical Data
23 TECHNICAL DATA Pneumatic technical information Unit COAX ® SX12 SX42 0.504 0.515 0.47 0.54 Feed pressure, pump at opt. MPa [psi] [73.2] [74.7] [68.2] [78.3] Feed pressure, nozzle at opt. MPa [psi] 0.5 [72.5] 0.43 [62.4] Max vacuum at opt. pressure... - Page 19 23 WARNING! Do not install or operate your piPUMP 23 if damaged during transport, handling or use. Damage may result in bursting and cause injury or property damage. (GB) Safety (IT) Segnali di av- (SE) Säkerhet (DK) Advarselsymboler vertenza...
- Page 20 Piab gives you service all over the world. To fi nd your local distributor, please visit www.piab.com No need to compromise Original manual language is English. www.piab.com...
