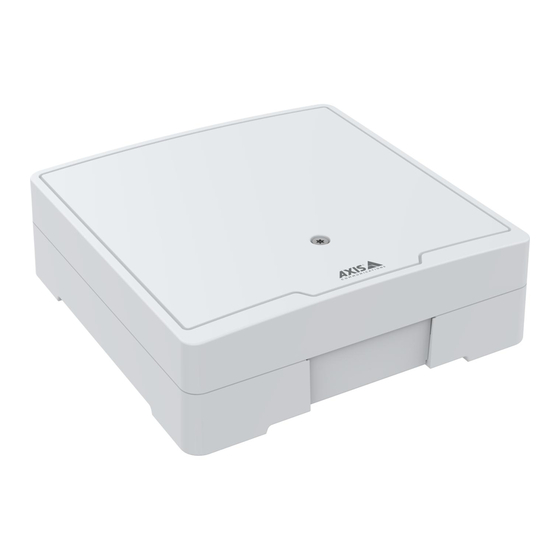

AXIS A1610 Network Door Controller
User manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the A1610 and is the answer not in the manual?

Questions and answers

Related Manuals for Axis A1610

Summary of Contents for Axis A1610

  • Page 1 AXIS A1610 Network Door Controller User manual...

  • Page 2: Table Of Contents

    Check the current AXIS OS version ........

  • Page 3: Solution Overview

    AXIS A1610 Network Door Controller Solution overview Solution overview The network door controller can easily be connected to and powered by your existing IP network with no need for special cabling. Each network door controller is an intelligent device that is easily mounted close to a door. It can power and control up to four readers.

  • Page 4: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 5: Secure Passwords

    Verify that no one has tampered with the device software To make sure that the device has its original AXIS OS, or to take full control of the device after a security attack: 1. Reset to factory default settings. See .

  • Page 6: Configure Your Device

    AXIS A1610 Network Door Controller Configure your device Configure your device For how to configure your device, see AXIS Camera Station user manual or third-party solutions.

  • Page 7: The Web Interface

    Device info Shows the device information, including AXIS OS version and serial number. Upgrade AXIS OS: Upgrade the software on your device. Takes you to the Maintenance page where you can do the upgrade. Time sync status Shows NTP synchronization information, including if the device is in sync with an NTP server and the time remaining until the next sync.

  • Page 8: Device

    Apps Add app: Install a new app.Find more apps: Find more apps to install. You will be taken to an overview page of Axis apps.Allow unsigned apps : Turn on to allow installation of unsigned apps.Allow root-privileged apps : Turn on to allow apps with root privileges full access to the device.

  • Page 9: System

    AXIS A1610 Network Door Controller The web interface • Deactivate the license: Deactivate the license to replace it with another license, for example, when you change from a trial license to a full license. If you deactivate the license, you also remove it from the device.
  • Page 10 AXIS A1610 Network Door Controller The web interface Network IPv4 Assign IPv4 automatically: Select to let the network router assign an IP address to the device automatically. We recommend automatic IP (DHCP) for most networks.IP address: Enter a unique IP address for the device. Static IP addresses can be assigned at random within isolated networks, provided that each address is unique.
  • Page 11 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we...
  • Page 12 Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).To allow the device to access a network protected through certificates, you must install a signed client certificate on the device.Authentication method: Select an EAP type used for...
  • Page 13 AXIS A1610 Network Door Controller The web interface IEEE 802.1x: Select to use the IEEE 802.1x protocol.These settings are only available if you use IEEE 802.1x PEAP-MSCHAPv2 as the authentication method: • Password: Enter the password for your user identity.
  • Page 14 To install test software or other custom software from Axis on the device, you need a custom signed AXIS OS certificate. The certificate verifies that the software is approved by both the device owner and Axis. The software can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 15 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device software can simplify integration of data and events produced in the device to systems which are not video management software (VMS).Set up the device as an MQTT client.
  • Page 16 AXIS A1610 Network Door Controller The web interface Use default topic prefix: Select to use the default topic prefix, that is defined in the device topic prefix in the MQTT client tab.Include topic name: Select to include the topic that describes the condition in the MQTT topic.Include topic namespaces: Select to include ONVIF topic namespaces in the MQTT topic.Include serial number: Select to include the device’s serial number in...

  • Page 17: Maintenance

    AXIS A1610 Network Door Controller The web interface Reports • View the device server report: View information about the product status in a pop-up window. The Access Log is automatically included in the Server Report. • Download the device server report: It creates a .zip file that contains a complete server report text file in UTF–8 format, as well as a snapshot of the current live view image.
  • Page 18 AXIS OS upgrade: Upgrade to a new AXIS OS version. New releases can contain improved functionality, bug fixes, and completely new features. We recommend you to always use the latest AXIS OS release. To download the latest release, go to axis.com/support.

  • Page 19: Learn More

    Signed OS Signed OS is implemented by the software vendor signing the AXIS OS image with a private key. When the signature is attached to the operating system, the device will validate the software before installing it. If the device detects that the integrity of the software is compromised, the AXIS OS upgrade will be rejected.

  • Page 20: Specifications

    AXIS A1610 Network Door Controller Specifications Specifications Text marked with UL is only valid for UL 294 installations. Product overview 9 10 Grounding position Reader connector, 2x Door connector, 2x Control button Relay overcurrent LED Reader overcurrent LED Auxiliary connector...

  • Page 21: Led Indicators

    Ethernet Plus (PoE+) IEEE 802.3at Type 2 Class 4 power limited injector that provides 44–57 V DC, 15.4 W / 30 W. Power over Ethernet (PoE) has been evaluated by UL with AXIS T8133 Midspan 30 W 1-port. Power priority This device can be powered by either PoE or DC input.
  • Page 22 AXIS A1610 Network Door Controller Specifications • PoE and DC are both connected and PoE is currently powering. When PoE is lost, the device uses DC for powering without restart. • PoE and DC are both connected and DC is currently powering. When DC is lost, the device restarts and uses PoE for powering.

  • Page 23: Supervised Inputs

    AXIS A1610 Network Door Controller Specifications Supplies power to reader. 12 V DC, max DC output (+12 V) 500 mA combined for all readers 5–6 Digital output, open drain 7–8 Digital input — Connect to pin 0 to max 30 V DC...
  • Page 24 AXIS A1610 Network Door Controller Specifications Door connector Two 4-pin terminal blocks for door monitoring devices (digital input). Door monitor supports supervision with end of line resistors. If the connection is interrupted, an alarm is triggered. To use supervised inputs, install end of line resistors. Use the connection diagram for supervised inputs. See .

  • Page 25: Auxiliary Connector

    AXIS A1610 Network Door Controller Specifications The power is shared between the two relays and AUX I/O 12 V DC. NOTICE TICE TICE If the lock is non-polarized, we recommend you to add an external flyback diode. Auxiliary connector Use the auxiliary connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications.

  • Page 26: External Connector

    AXIS A1610 Network Door Controller Specifications in combination with an external power supply, then the I/Os can manage DC supply of 0–30 V DC, 100 mA. DC ground DC output 12 V, max 50 mA I/O configured as supervised input...
  • Page 27 AXIS A1610 Network Door Controller Specifications Function Notes Specifications 0 V DC 0 V DC (-) DC input For powering controller when not using Power over 10.5–28 V DC, max 36 W Ethernet. Note: This pin can only be used as power in.

  • Page 28: Troubleshooting

    Using AXIS OS from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 29: Technical Issues, Clues, And Solutions

    Note When you upgrade the device with the latest AXIS OS version in the active track, the product receives the latest functionality available. Always read the upgrade instructions and release notes available with each new release before you upgrade. To find the latest AXIS OS version and the release notes, go to axis.com/support/device-software.

  • Page 30: Performance Considerations

    IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).If required, a static IP address can be assigned manually.
  • Page 31 User manual Ver. M8.3 AXIS A1610 Network Door Controller Date: October 2024 © Axis Communications AB, 2022 - 2024 Part no. T10181937...
