Sanrex SANMIG 250MF Cart Assembly Instruc�ons
The Cart ships in two boxes. One box has the Drawer
the other box has the cart and accessories.
Contents of the boxes.
• Drawer
• Cart Base with Wheels installed.
• Cylinder Rack
• Drawer Brackets (Installed on base).
• 2 each power supply Brackets.
• 2 each power supply Fixing bars.
• Cylinder Chains.
• 8 Cylinder Rack Screws.
• 4 Drawer Bracket Screws.
• 8 Power Supply Fixing bar screws.

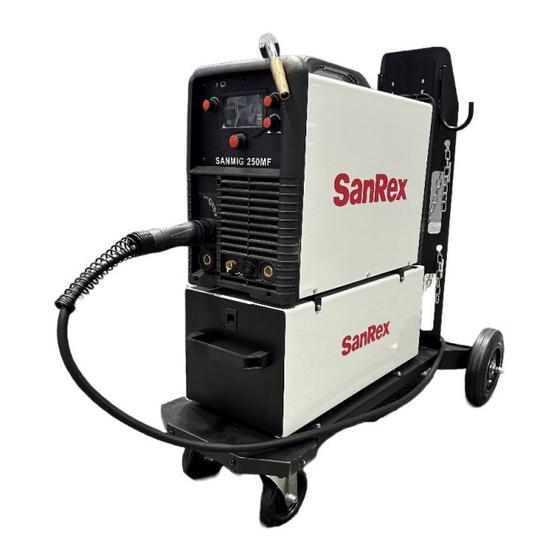

Assembled 250MF-CART

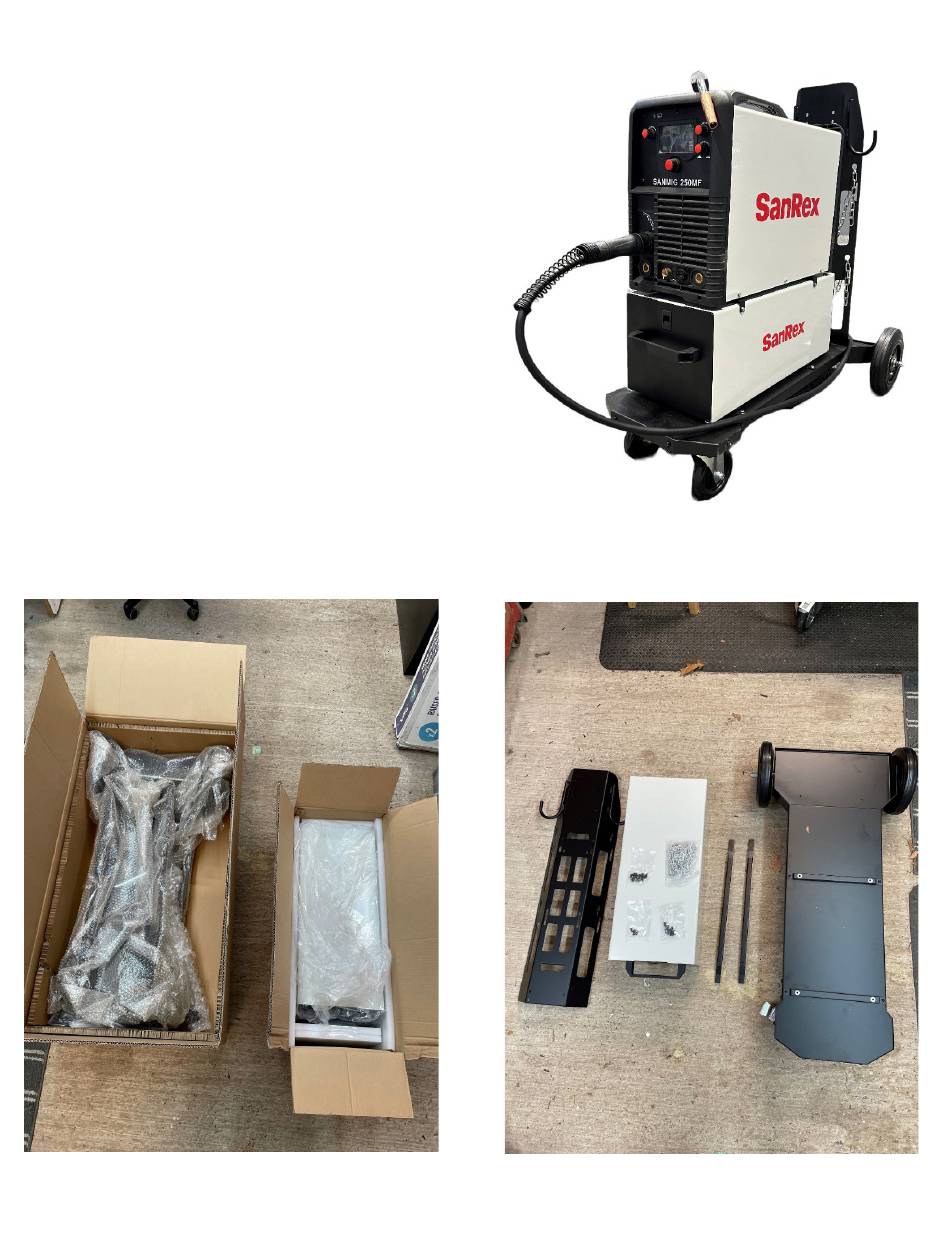

As Shipped contents.
Contents unpacked. Power Supply Fixing Bars
not shown.
