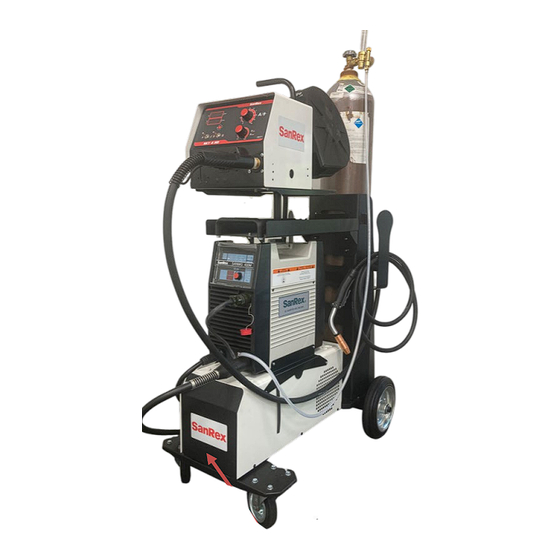

300AP, 400M/MP system Packages Assembly Instructions.
300AP System Package assembly.
See 300AP Operators manual for detailed setup instructions.
•
Air Cooled System Package 300AP-ACTK does not include Coolant Recirculator.
•
Water cooled system Packages 300AP-HDWTK, 300AP-WTK Assembly.
•
Coolant Recirculator Blue Fitting - Coolant Out. Connect included water hose to Blue Coolant out fitting on Coolant
•
Recirculator to coolant IN on the back panel of 300AP.
•
Coolant Recirculator Red Fitting - Coolant In. Connect TIG Torch return Coolant line to Red Coolant IN on Coolant
recirculator.
Connect TIG Torch Coolant Supply Hose to 300AP front Panel Water Out Fitting.
•
Coolant Recirculator Reservoir requires 1 and 2/3 Gallons of coolant.
•
