ROOMS TO GO MGNH 5880-64 Assembly Instructions

Manufactured by MGNH for Rooms To Go.
Step Code
Allen key 4mm dia.
A
Wrench 1/2"
B
Bolt 5/16" -18 x 3 "
Flat Washer 5/16" x 19 x 1.5mm
1 C
Spring Washer 5/16" x 13 x 1.2mm
Bolts 1/4"- 20 x 1-3/4 "
Flat Washer 5/16" x 19 x 1.5mm
2
D
Spring Washer 5/16" x 13 x 1.2mm
Nut 5/16" x 13 mm
Flat Washer 5/16" x 19 x 1.5mm
E
3
Spring Washer 5/16" x 13 x 1.2mm
Screw 4 x 1 3/4"
F
4
Hardware Pack Locations:
5880-64 Side chair w/ uph seat
Assembly Instructions
MGNH 5880-64
Hardware
Tool Required: Phillips screwdriver
(not provided)
,SKU# 42458807

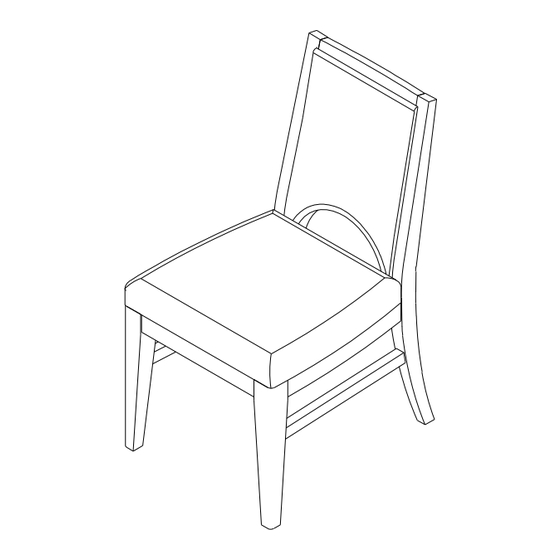

SIDE CHAIR W/ UPH SEAT
PARTS LIST
Q'TY
1 Pc
1 Pc
1. Seat Back - 1 Pc
4 Pcs
4 Pcs
2. Seat Frame - 1 Pc
4 Pcs
3. Left Leg - 1 Pc
3 Pcs
3 Pcs
4. Right Leg - 1 Pc
3 Pcs
4 Pcs
5. Left Stretcher - 1 Pc
4 Pcs
6. Right Stretcher - 1 Pc
4 Pcs
4 Pc
SKU# 42458807
Version 1 - 2024/04/29
1 OF 2
