ROOMS TO GO MGNH 5880-73 Assembly Instructions

Manufactured by MGNH for Rooms To Go.
Step Code
Allen key 4mm dia.
A
Wrench 1/2"
B
Bolt 5/16"-18 x 3 "
1
C
Flat Washer 5/16" x 19 x 1.5mm
Spring Washer 5/16" x 13 x 1.2mm
Nut 5/16" x 13 mm
2
D
Flat Washer 5/16" x 19 x 1.5mm
Spring Washer 5/16" x 13 x 1.2mm
3
E
Screw 4 x 1 3/4"
Hardware Pack Locations:
5880-73 Uph Arm Chair
MGNH 5880-73
Hardware
Tool Required: Phillips screwdriver
(not provided)
,SKU# 42658801
Assembly Instructions

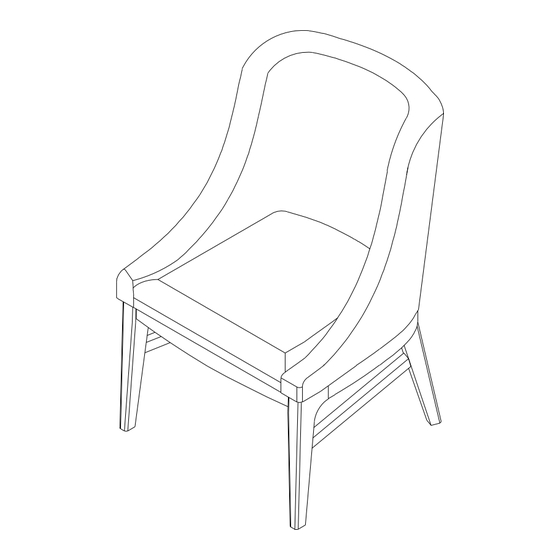

UPH ARM CHAIR
Q'TY
1 Pc
1 Pc
4 Pcs
4 Pcs
4 Pcs
4 Pcs
4 Pcs
4 Pcs
4 Pc
SKU# 42658801
Version 1 - 2024/04/29
PARTS LIST
1. Seat Frame - 1 Pc
2. Back Right Leg - 1 Pc
3. Back Left Leg - 1 Pc
4. Front Right Leg - 1 Pc
5. Front Left Leg - 1 Pc
6. Right Stretcher - 1 Pc
7. Left Stretcher - 1 Pc
1 OF 2
