Installation

Sunlight Sensor
The sunlight sensor should be installed parallel to the panels surface.
To better track the sun, the sensor should be mounted at the northeast
corner of the bracket if in northern hemisphere and southeast in southern
hemisphere.

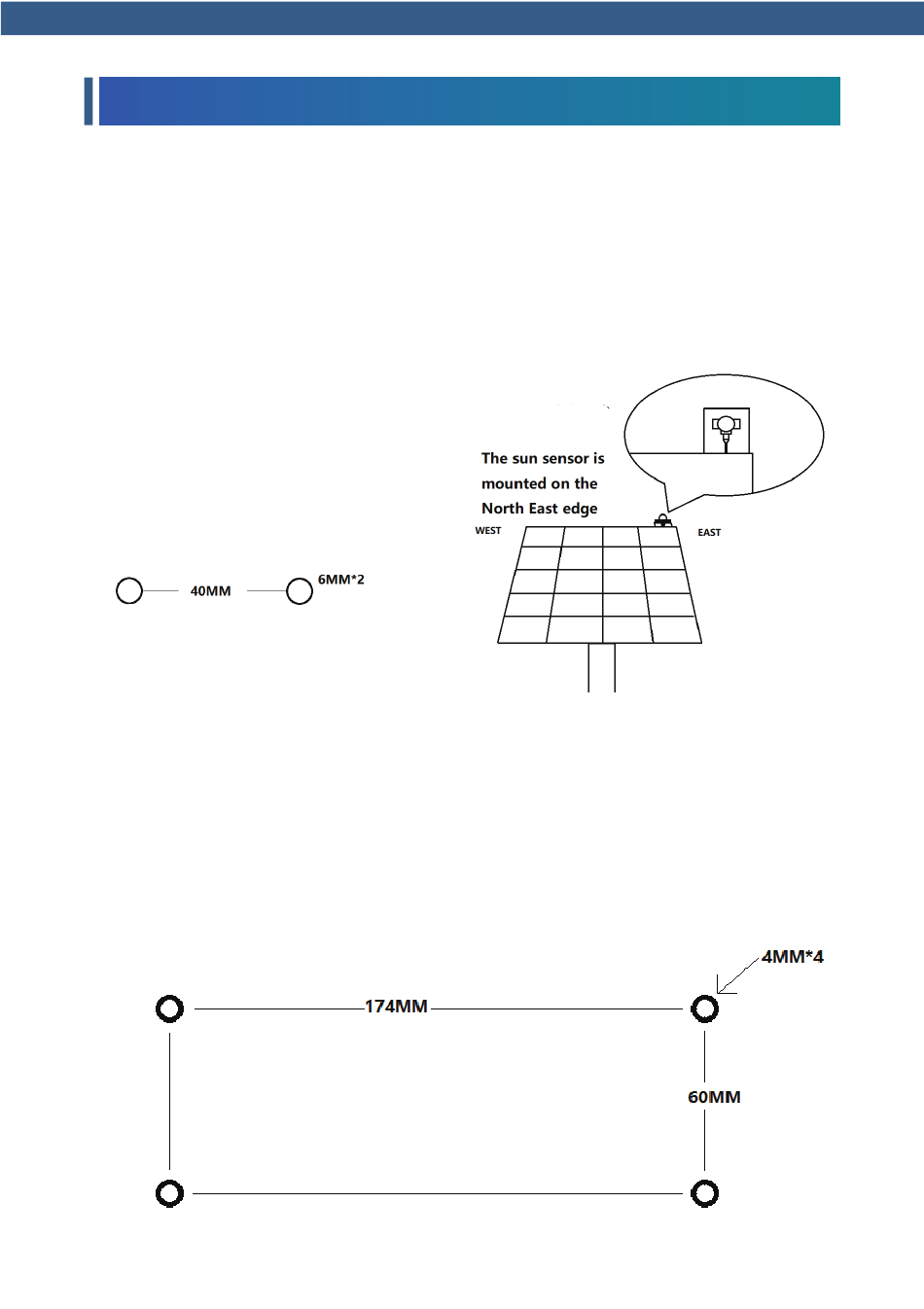

Mounting holes of sunlight sensor
Controller Box
The controller box should be installed on the Main Pole and make sure to
keep it away from raining or sunlight. The cable port should be downward to
avoid water collected.
Mounting holes of controller box
