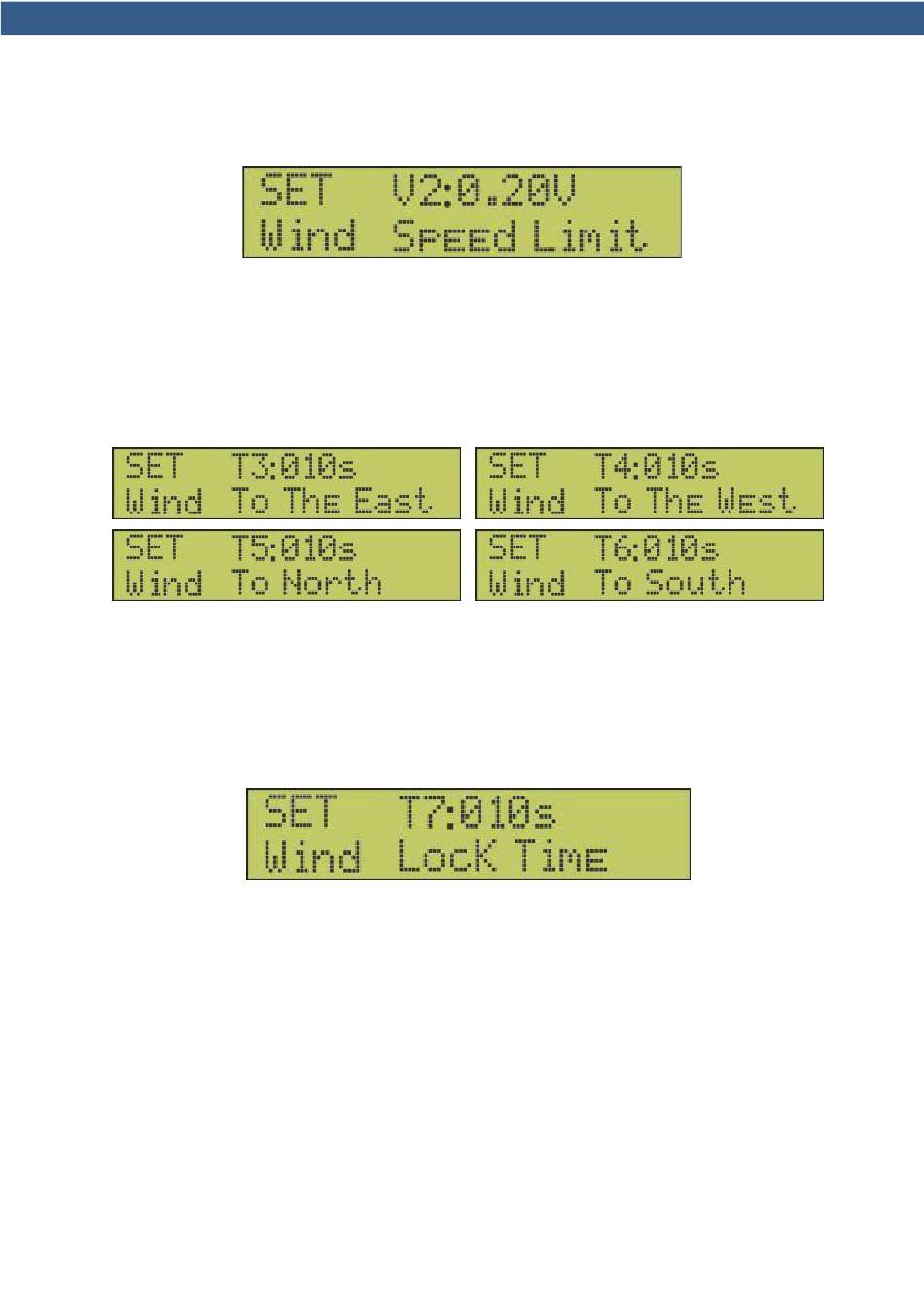

V2-Wind Speed Limit
If the voltage read by the wind speed sensor is higher than V2, the controller
will start Wind Protection.
T3, T4, T5, T6-Move to East/West/North/South
When wind protection gets started, the bracket will auto move to
East/West/North/South in order. The values from T3 to T6 means the move-
ment time towards each direction.
T7-Wind Lock Time
This value estimates how long the bracket stays in the position after the
movements of T3-T6 are finished. If the voltage read by the wind speed
sensor stays higher than V2 when T7 countdown is over, the timing will
restart until the voltage drops.
The Wind Protection and the Auto Return at night will work at the same time.
If T7 countdown is over and the voltage read by the wind speed sensor drops
below V2 at night, the bracket will be T7 locked.
Refer to the following pictures to better know how the bracket works in Auto
Return and Wind Protection.
